Tractor · 1989Unverified

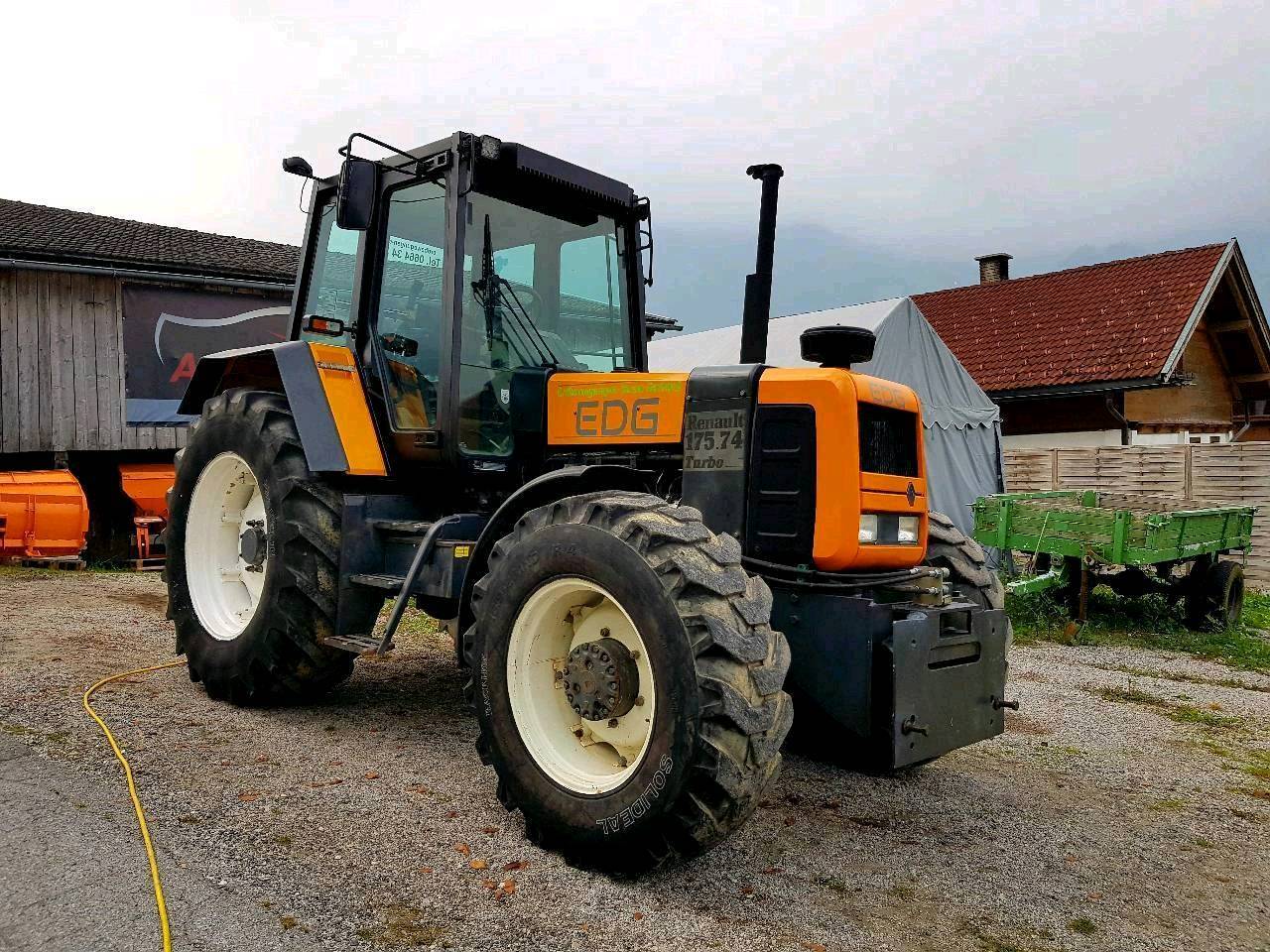

Renault 175-74 TZ

Name: Renault 175-74 TZ
Brand: Renault

Renault 175-74 TZ · 165 hp. Reference specifications; pending source verification.

The Renault 175-74 TZ is a tractor rated at 165 hp, categorising it as a high-powered machine in its class. Manufactured from 1989 to 1992, this model features a 6-cylinder turbocharged diesel engine, which powers a four-wheel drive system via a hydrostatic transmission. Its listed weight is 6201 kg, and it is designed for applications involving approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

165 hp

Weight

6201 kg

Catalogue coverage

Variants represented

Richest spec table

30 rows

Recorded power

165 hp

Recorded weight

6201 kg

Transmissions

24-speed

Production years

1989-1992

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerRenaultReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

cab with air conditioningReference

Engine

MWM 6.2L 6-cyl dieselReference

Fuel tank224.8 LReference

Engine123.0 kWReference

MWM TD226-B6Reference

turbocharged dieselReference

6-cylinderReference

Displacement6.2 LReference

Bore/Stroke105 x 120 mmReference

Power123.0 kWReference

Rated RPM2350Reference

Torque615.1 NmReference

Torque RPM1500Reference

Transmission

24-speedReference

Gears24 forward and 8 reverseReference

PTO & Hydraulics

Total flow52.6 lpmReference

Rear lift9201 kgReference

Rear PTO Type1000Reference

Dimensions

Wheelbase276 cmReference

Weight6201 kgReference

Front tire16.9-28Reference

Rear tire20.8-38Reference

Ag front16.9-28Reference

Ag rear20.8-38Reference

Length485 cmReference

Height311 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
