Tractor · 1991Unverified

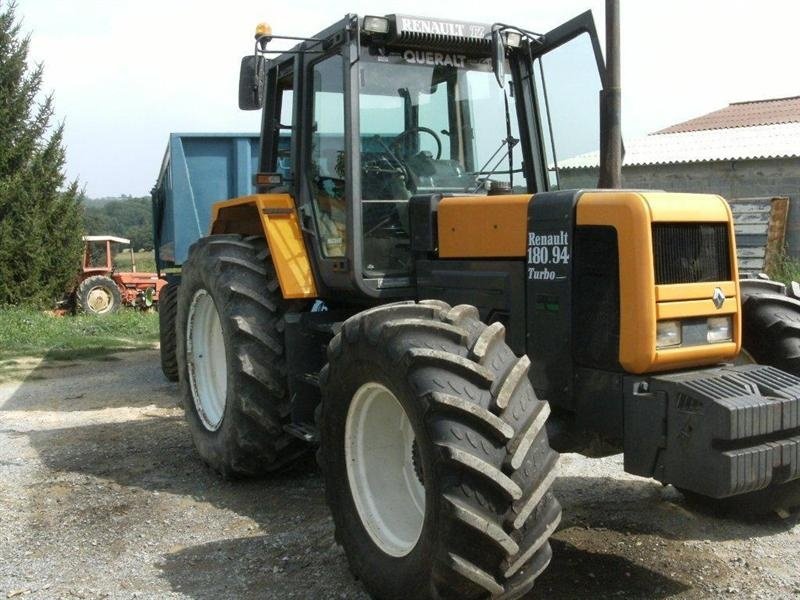

Renault 180-94 TZ
Renault 180-94 TZ · 170 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
170 hp
Weight
6370 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab with air conditioningReference
Engine
MWM 6.2L 6-cyl dieselReference
Fuel tank224.8 LReference
Engine126.8 kWReference
MWM TD226-B6Reference
turbocharged dieselReference
6-cylinderReference
Displacement6.2 LReference
Bore/Stroke105 x 120 mmReference
Power126.8 kWReference
Rated RPM2350Reference
Torque615.1 NmReference
Torque RPM1500Reference
Transmission
27-speedReference
Gears27 forward and reverseReference
PTO & Hydraulics
Total flow143.8 lpmReference
Rear lift6181 kgReference
Rear PTO Type750/1000Reference
Dimensions
Wheelbase279 cmReference
Weight6370 kgReference
Front tire16.9-30Reference
Rear tire20.8-38Reference
Ag front16.9-30Reference
Ag rear20.8-38Reference
Length516 cmReference
Height305 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
