Tractor · 1972Unverified

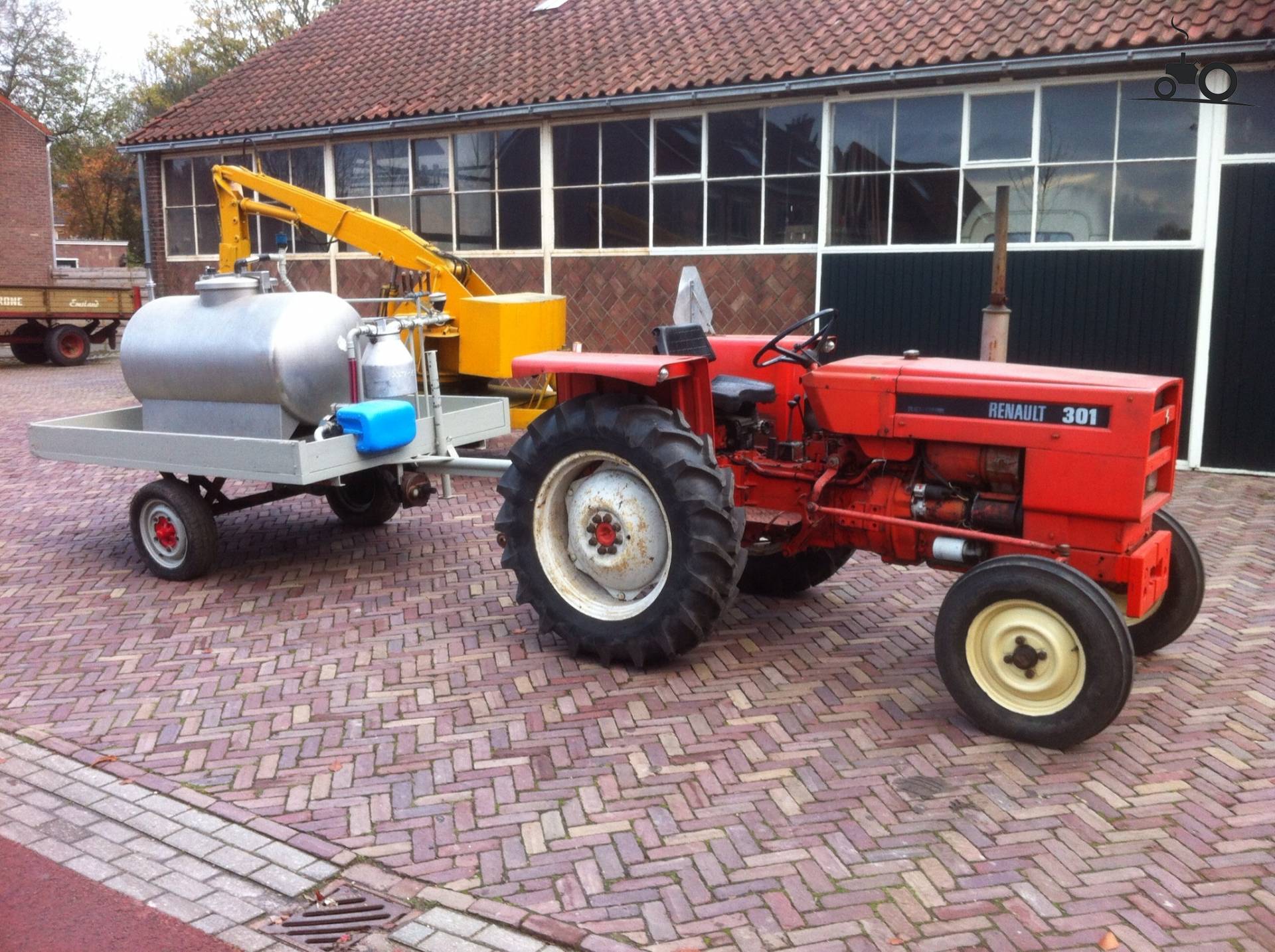

Renault 301
Renault 301 · 30 hp. Reference specifications; pending source verification.
The Renault 301 is a compact tractor with a rated output of 30 hp, one of the more compact options in its class. It was manufactured from 1972 to 1977. The tractor features a 2-cylinder diesel engine, driving through two-wheel drive with a 6-speed gearbox. Its listed weight is 2065 kg and it is suited for tasks involving approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
2065 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
30 hp
Recorded weight
2065 kg
Transmissions
6-speed
Production years
1972-1977
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Two-wheel driveReference
SteeringmechanicalReference
Dry disc brakesReference
optionalReference
Engine
MWM 1.9L 2-cyl dieselReference
Fuel tank48.1 LReference
Engine22.4 kWReference
MWM D327-2Reference
dieselReference
2-cylinderReference
Displacement1.9 LReference
Bore/Stroke98 x 120 mmReference
Power22.4 kWReference
Rated RPM2150Reference
Torque113.0 NmReference
Torque RPM1500Reference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Total flow22.0 lpmReference
Rear lift2000 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase184 cmReference
Weight2065 kgReference
Front tire5.50-16Reference
Rear tire12.4-28Reference
Ag front5.50-16Reference
Ag rear12.4-28Reference
Length318 cmReference
Height244 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
