Tractor · 1977Unverified

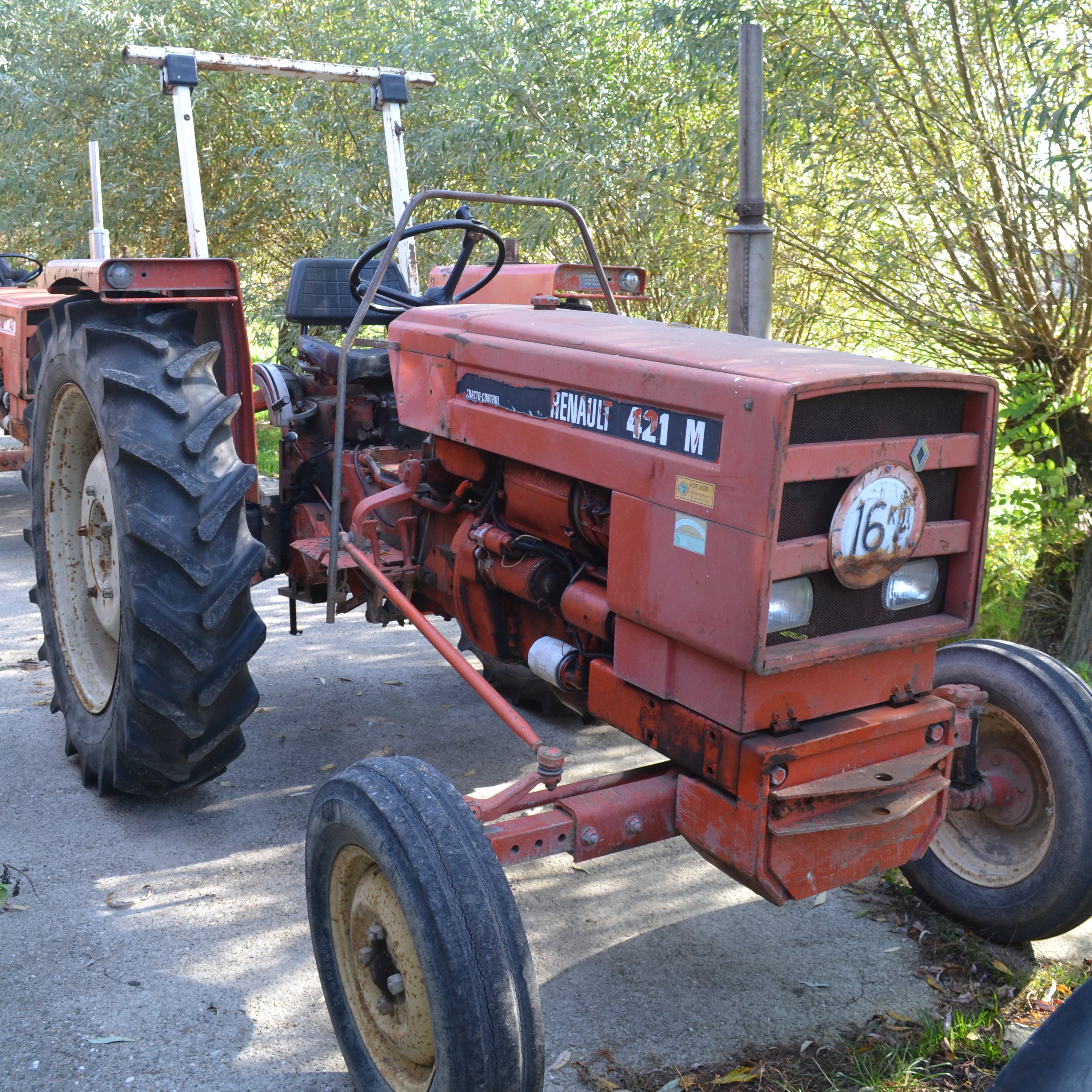

Renault 421M
Renault 421M · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
2225 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Two-wheel driveReference
SteeringmechanicalReference
Dry disc brakesReference
optionalReference
Engine
MWM 2.6L 3-cyl dieselReference
Fuel tank51.9 LReference
Engine31.3 kWReference
MWM D325-3Reference
dieselReference
3-cylinderReference
Displacement2.6 LReference
Bore/Stroke95 x 120 mmReference
Power31.3 kWReference
Rated RPM2150Reference
Torque155.0 NmReference
Torque RPM1500Reference
Transmission
10-speedReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Total flow25.0 lpmReference
Total flow29.9 lpmReference
Rear lift2000 kgReference
Rear lift2500 kgReference
Rear PTO Type540/750Reference
Dimensions
Wheelbase198 cmReference
Weight2225 kgReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
Length335 cmReference
Height234 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
