Tractor · 1977Unverified

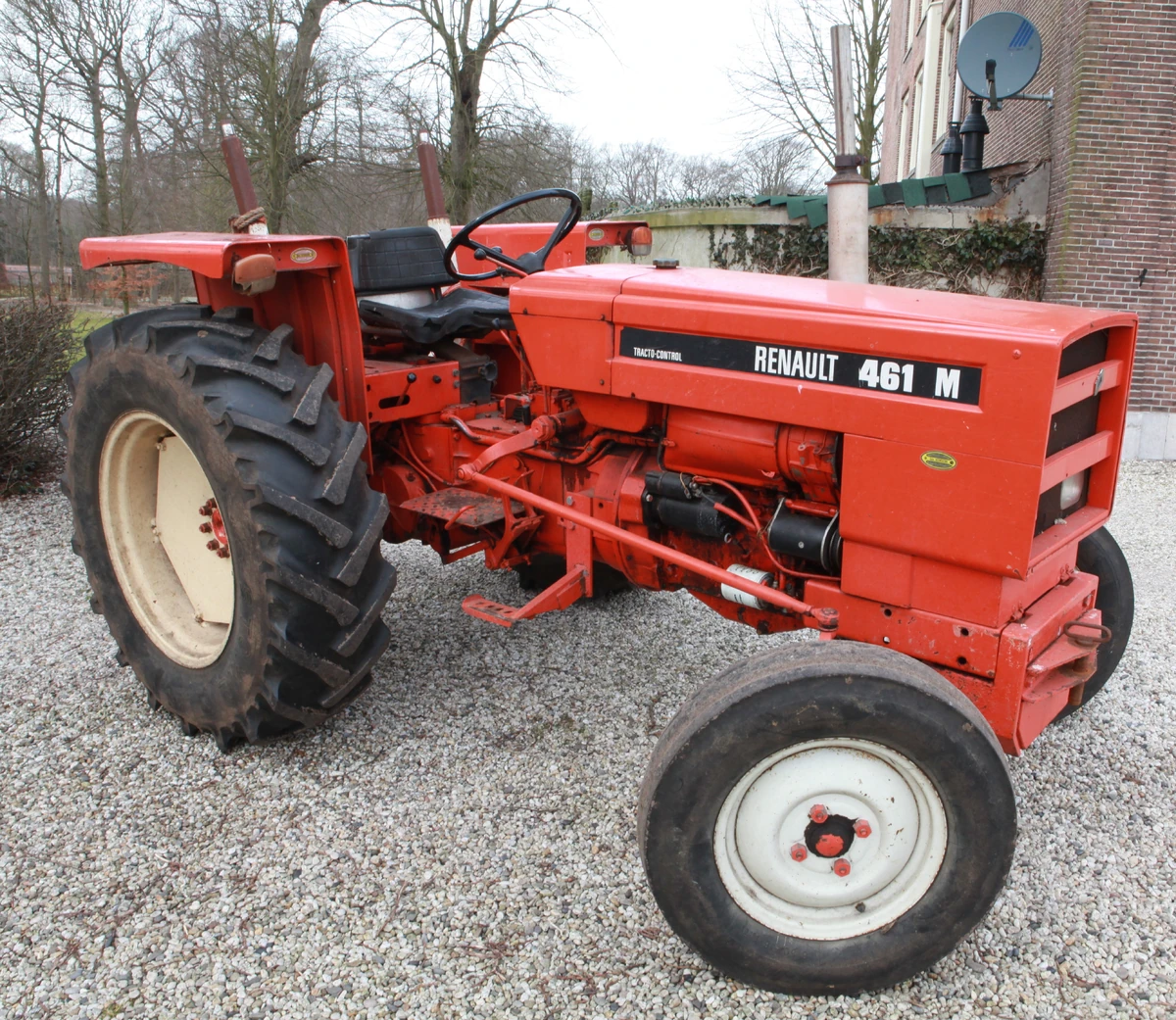

Renault 461M
Renault 461M · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
2245 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Two-wheel driveReference
SteeringmechanicalReference
Steeringhydrostatic powerReference
Dry disc brakesReference
optionalReference
Engine
MWM 2.8L 3-cyl dieselReference
Fuel tank51.9 LReference
Engine33.6 kWReference
MWM D327-3Reference
dieselReference
3-cylinderReference
Displacement2.8 LReference
Bore/Stroke98 x 120 mmReference
Power33.6 kWReference
Rated RPM2150Reference
Torque169.1 NmReference
Torque RPM1500Reference
Transmission
10-speedReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Total flow25.0 lpmReference
Total flow29.9 lpmReference
Rear lift2000 kgReference
Rear lift2500 kgReference
Rear PTO Type540/750Reference
Dimensions
Wheelbase198 cmReference
Weight2245 kgReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
Length336 cmReference
Height236 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
