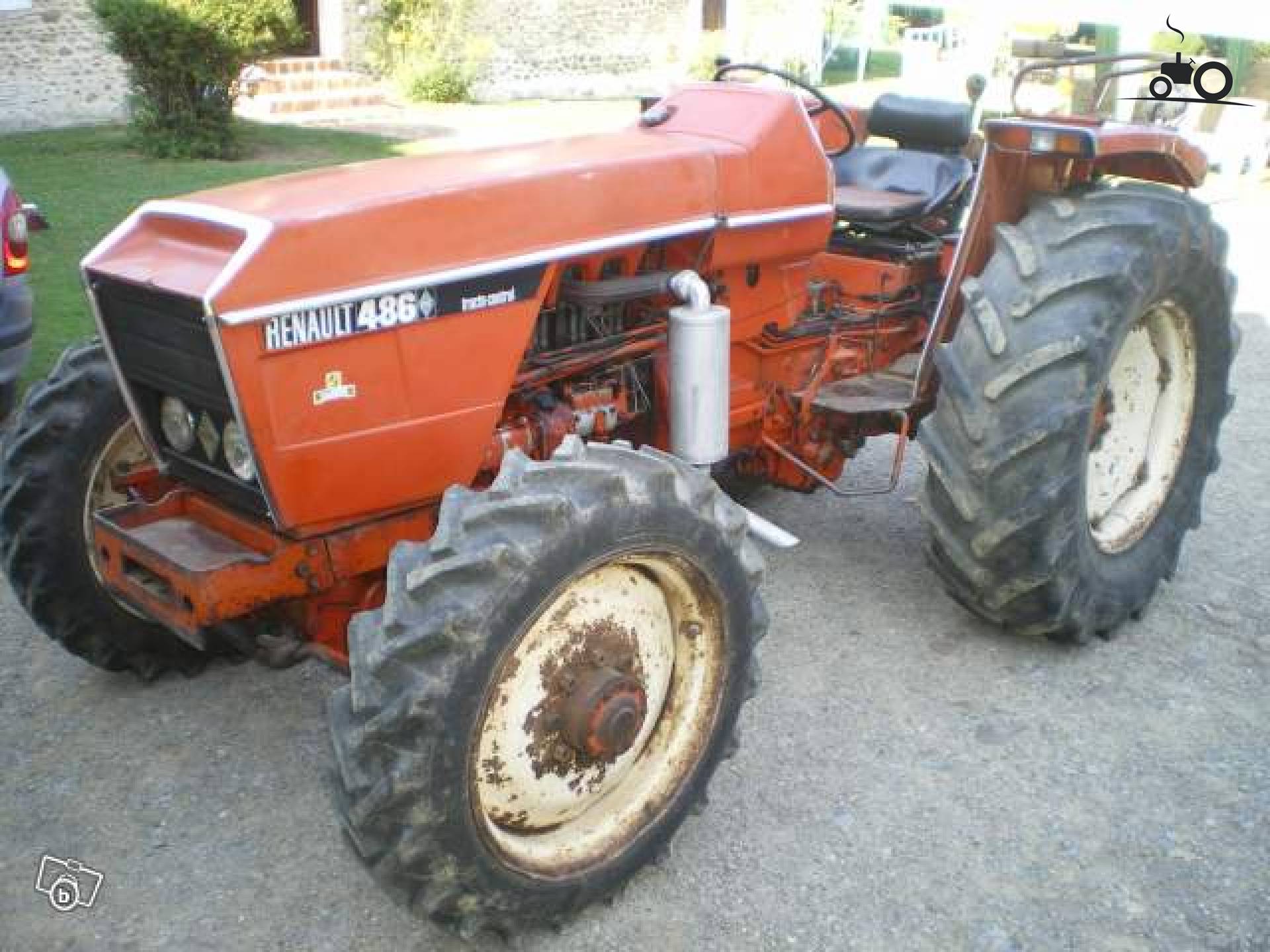

Renault 486
Renault 486 · 50 hp. Reference specifications; pending source verification.
The Renault 486 is a tractor with a rated output of 50 hp, characterising it as one of the more compact options in its class. Production of this model spanned the period from 1967 to 1973. The tractor is equipped with a 3-cylinder engine, which drives four-wheel drive via a hydrostatic transmission. Its listed weight is 2685 kg, making it suitable for tasks up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
2685 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
50 hp
Recorded weight
2685 kg
Transmissions
8-speed
Production years
1967-1973
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Dry disc brakesReference
Variants
862WDReference
Engine
MWM 2.6L 3-cylReference
Fuel tank70.0 LReference
Engine37.3 kWReference
MWM D325-3Reference
3-cylinderReference
Displacement2.6 LReference
Bore/Stroke95 x 120 mmReference
Power37.3 kWReference
Rated RPM2500Reference
Torque191.1 NmReference
Torque RPM1590Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Total flow26.1 lpmReference
Rear lift2000 kgReference
Rear PTO Type540/750Reference
Dimensions
Wheelbase207 cmReference
Weight2685 kgReference
Front tire6.50-16Reference
Rear tire12.4-32Reference
Ag front6.50-16Reference
Ag rear12.4-32Reference
Ag front9.3-24Reference
Ag rear16.9-28Reference
Length369 cmReference
Height223 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
