Tractor · 1969Unverified

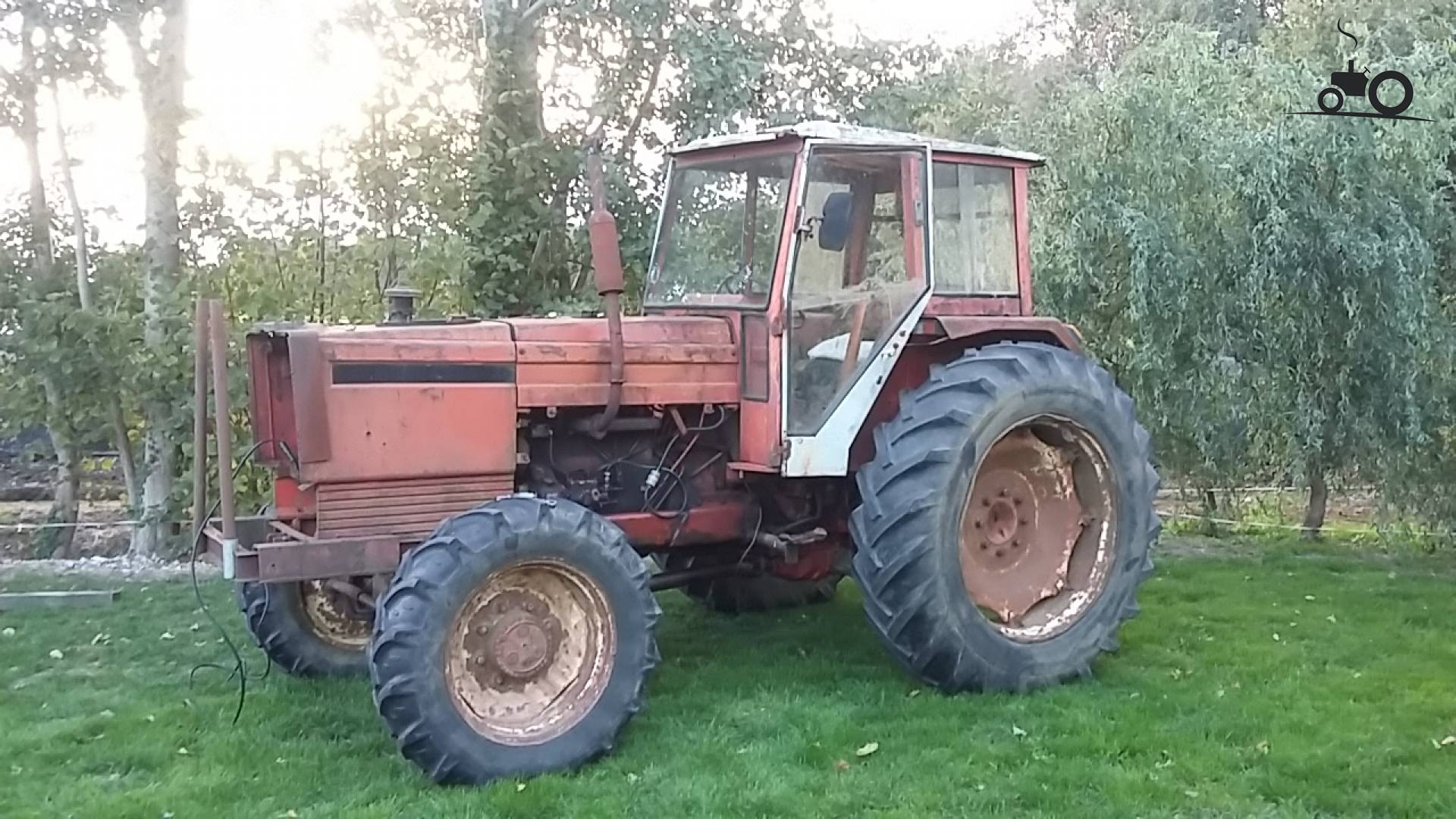

Renault 496
Renault 496 · 82 hp. Reference specifications; pending source verification.
The Renault 496 is a tractor with a rated power output of 82 hp, a mid-range figure for its class. It was produced from 1969 to 1973 and is powered by a 4-cylinder diesel liquid-cooled engine, paired with a four-wheel drive system and an 8-speed gearbox. Its listed operating weight is 3655 kg, enabling it to handle operations of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
82 hp
Weight
3655 kg
Catalogue coverage
Variants represented
2
Richest spec table
33 rows
Recorded power
82 hp
Recorded weight
3655 kg
Transmissions
8-speed synchromesh
Production years
1969-1973
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Power steeringReference
Dry disc brakesReference
Cab standardReference
Variants
962WDReference
4964WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank106.0 LReference
Engine61.1 kWReference
MWM D226-4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power61.1 kWReference
Rated RPM2500Reference
Transmission
8-speed synchromeshReference
TypesynchromeshReference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Total flow31.4 lpmReference
Rear lift2500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase236 cmReference
Weight3655 kgReference
Front tire8.5-24Reference
Rear tire16.9-34Reference
Ag front8.5-24Reference
Ag rear16.9-34Reference
Length415 cmReference
Height245 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
