Tractor · 1987Unverified

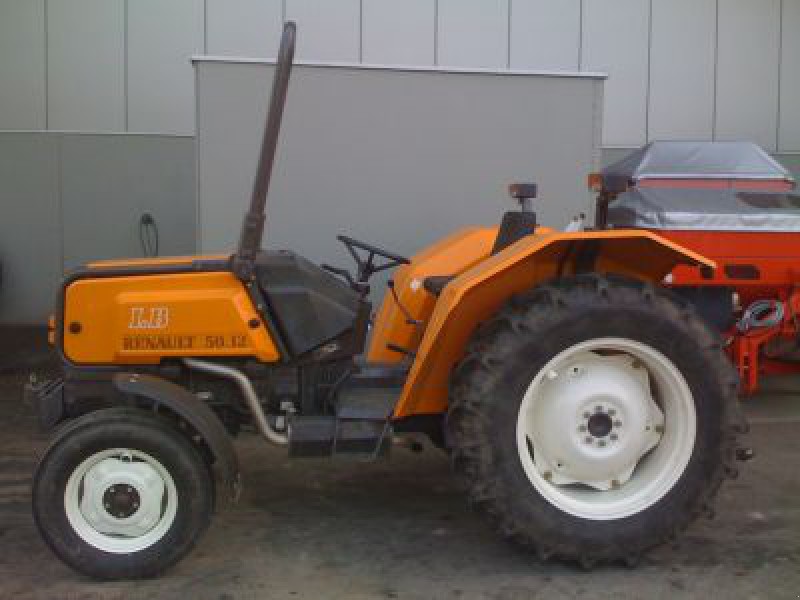

Renault 50-12 LB
Renault 50-12 LB — LB Series · 44 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
44 hp
Weight
2100 kg
Hover a source tag to verify
Overview
DistributorRenaultReference
ManufacturerCarraroReference
Utility tractorReference
Built in ItalyReference
Two-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Engine
Deutz 2.8L 3-cyl dieselReference
Fuel tank62.1 LReference
Engine33.0 kWReference
Deutz F3 L 912Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement2.8 LReference
Bore/Stroke98 x 120 mmReference
Power33.0 kWReference
Rated RPM2350Reference
Torque154.0 NmReference
Torque RPM1600Reference
Starter typeelectricReference
Transmission
8-speed Four gears in two ranges with mechanical shuttle.Reference
TypeFour gears in two ranges with mechanical shuttle.Reference
Gears8 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Pressure180.0 barReference
Valves1Reference
Pump flow36.3 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift3477 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Weight2100 kgReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
Ag front7.50-16Reference
Ag rear12.4-36Reference
Length329 cmReference
Width164 cmReference
Height (ROPS)225 cmReference
Height (cab)220 cmReference
Max weight4260 kgReference
Front tread130 to 189 cmReference
Rear tread130 to 189 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
