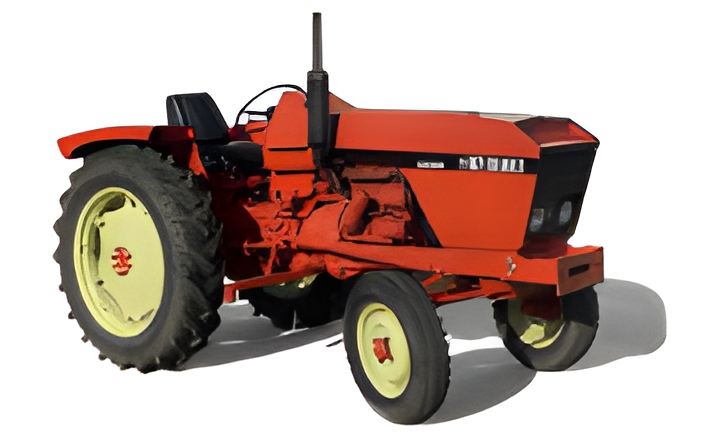

The Renault 55 is a compact tractor with a rated output of 35 hp, produced from 1967 to 1973. It features a 3-cylinder diesel liquid-cooled engine driving a two-wheel drive system through a 10-speed gearbox, and has a listed weight of 2030 kg. The Renault 55 is intended for use in tasks covering approximately 200 acres. Specifications for the UK and US markets are available.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
2030 kg
Catalogue coverage
Variants represented
2
Richest spec table
44 rows
Recorded power
35 hp
Recorded weight
2030 kg
Transmissions
10-speed
Production years
1967-1973
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Utility tractorReference
Built in Le Mans, FranceReference
Two-wheel driveReference
Manual steeringReference
Drum brakesReference
Open operator station.Reference
Engine
Renault-Alfa 2.2L 3-cyl dieselReference
Fuel tank54.9 LReference
Engine26.1 kWReference
Renault-Alfa 715Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke93 x 110 mmReference
Power26.1 kWReference
Compression18:1Reference
Rated RPM2000Reference
Torque141.0 NmReference
Firing order1-3-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.0 LReference
Coolant capacity10.0 LReference
Transmission
10-speedReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Total flow26.1 lpmReference
Rear lift2000 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase193 cmReference
Weight2030 kgReference
Front tire6.00-16Reference
Rear tire12.4-32Reference
Ag front6.00-16Reference
Ag rear12.4-32Reference
Length325 cmReference
Width146 cmReference
Height (steering wheel)153 cmReference
Max weight2300 kgReference
Front tread119 to 189 cmReference
Rear tread119 to 180 cmReference
Speeds
With 11-32 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
