Tractor · 1987Unverified

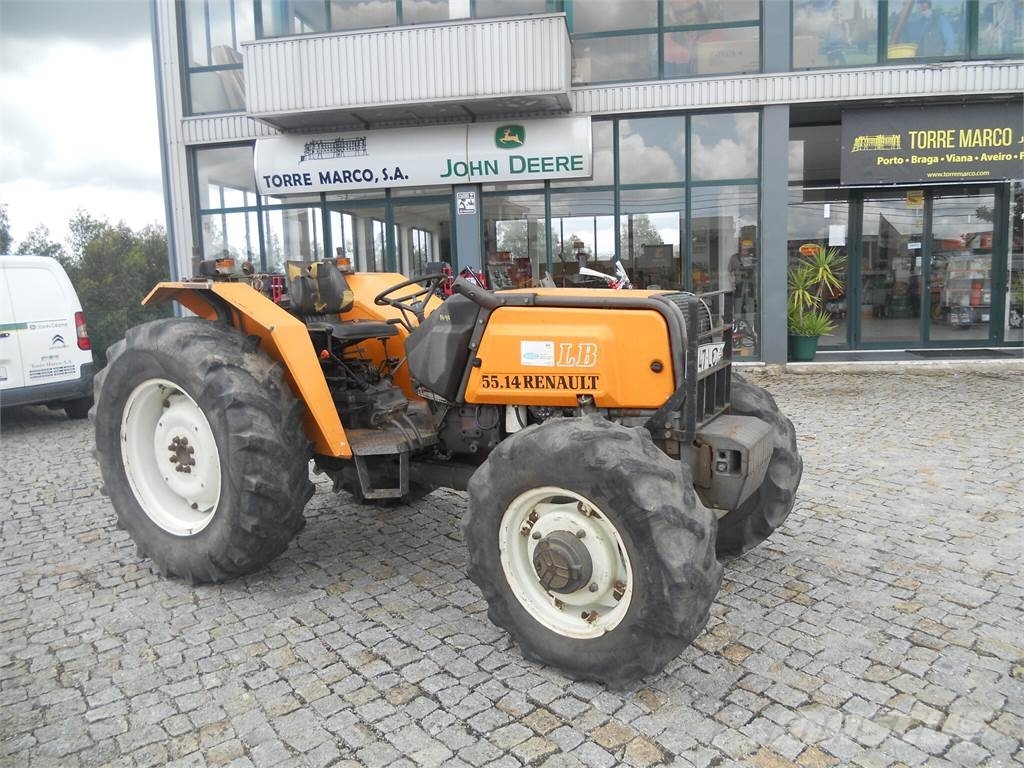

Renault 55-14 LB
Renault 55-14 LB — LB Series · 51 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
51 hp
Weight
2399 kg
Hover a source tag to verify
Overview
DistributorRenaultReference
ManufacturerCarraroReference
Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Variants
55-122WDReference
55-144WDReference
Engine
Deutz 2.8L 3-cyl dieselReference
Fuel tank62.1 LReference
Engine38.0 kWReference
Deutz F3 L 912Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement2.8 LReference
Bore/Stroke98 x 120 mmReference
Power38.0 kWReference
Rated RPM2350Reference
Torque177.0 NmReference
Torque RPM1600Reference
Starter typeelectricReference
Transmission
12-speed Four gears in three ranges with mechanical shuttle.Reference
TypeFour gears in three ranges with mechanical shuttle.Reference
Gears12 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Pressure180.0 barReference
Valves1Reference
Pump flow36.3 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift3477 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Weight2399 kgReference
Front tire12.4-20Reference
Rear tire14.9-28Reference
Standard tires (ag)Front: 12.4-20. Rear: 14.9-28Reference
Optional tires (ag)Front: 9.5-28. Rear: 12.4-36Reference
Length353 cmReference
Width167 cmReference
Height (ROPS)228 cmReference
Height (cab)224 cmReference
Max weight4599 kgReference
Front tread128 to 180 cmReference
Rear tread130 to 189 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
