Tractor · 1972Unverified

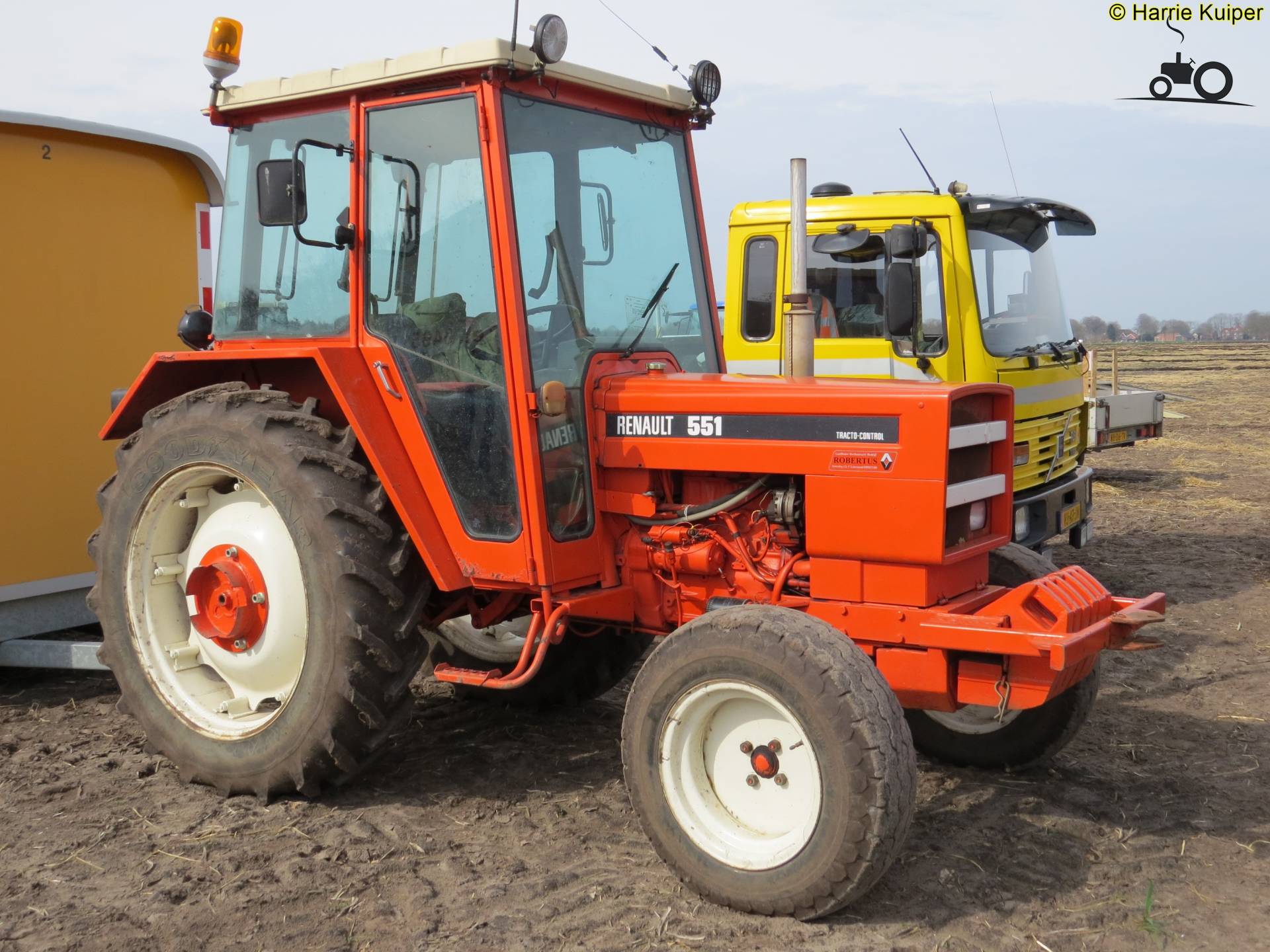

Renault 551
Renault 551 · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
5799 to 6494 pounds
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Built in Le Mans, FranceReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Dry disc brakesReference
Four-post ROPS. Cab available with optional heater.Reference
Variants
551-44WDReference
Engine
MWM 3.1L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine40.4 kWReference
MWM D226-3Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement3.1 LReference
Bore/Stroke105 x 120 mmReference
Power40.4 kWReference
Rated RPM2350Reference
Torque187.0 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
8-speed mechanical shuttleReference
TypegearReference
Gears12 forward and 3 reverseReference
Clutchdry discReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
Pump flow27.3 lpmReference
Rear TypeIIReference
Rear lift2000 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2215Reference
Dimensions
2WD Wheelbase211 cmReference
4WD Wheelbase210 cmReference
Weight5799 to 6494 poundsReference
Front tire6.50-16Reference
2WD Rear tire14.9-28Reference
2WD Standard tires (ag)Front: 6.50-16. Rear: 14.9-28Reference
4WD Standard tires (ag)Front: 9.5-24. Rear: 14.9-28Reference
4WD Optional tires (ag)Front: 9.5-28. Rear: 12.4-36Reference
Length352 cmReference
Width169 cmReference
Height (ROPS)236 cmReference
Height (cab)247 cmReference
2WD Cab Weight2630 kgReference
4WD Cab Weight2945 kgReference
Ground clearance42 cmReference
Rear tread130 to 180 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Speeds
With 14.9-28 rear tires.Reference
With 14.9-28 rear tires. Reverse speeds are 3% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
