Tractor · 1980Unverified

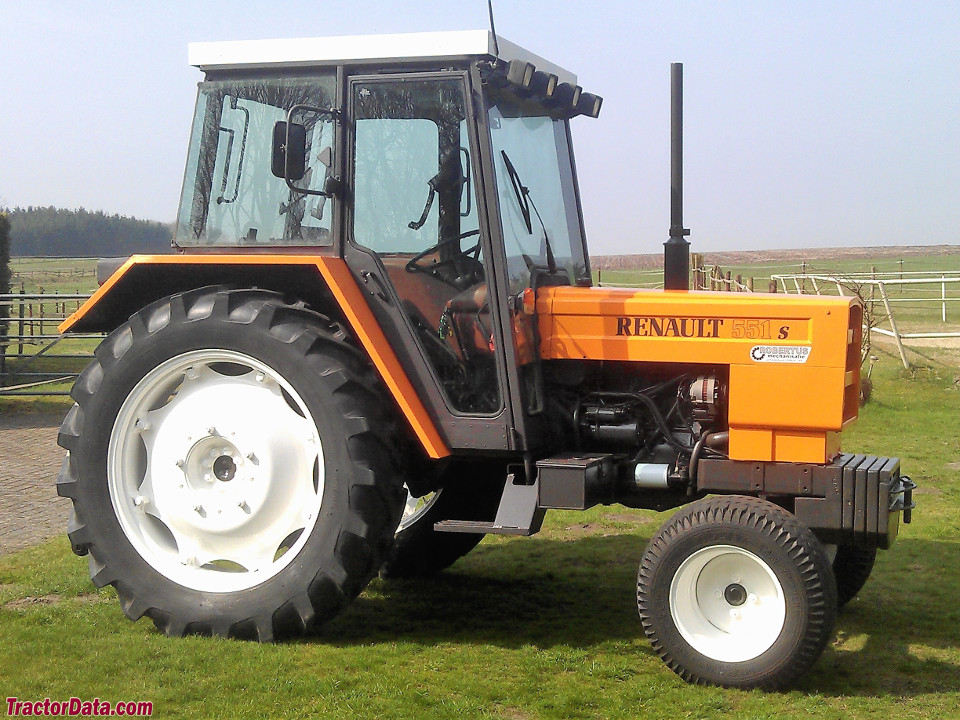

Renault 551S
Renault 551S — S Series · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
4586 to 6415 pounds
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Dry disc brakesReference
ROPS. Cab optional.Reference
Engine
MWM 3.1L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine41.0 kWReference
MWM D226-3Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke105 x 120 mmReference
Power41.0 kWReference
Compression18:1Reference
Rated RPM2350Reference
Torque192.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears in three ranges with shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure180.0 barReference
Total flow27.3 lpmReference
Rear TypeIReference
Rear lift2500 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM551@2350Reference
Engine RPM642@2350 (540/1000)Reference
Engine RPM1099@2350Reference
Dimensions
2WD Wheelbase211 cmReference
4WD Wheelbase210 cmReference
Weight4586 to 6415 poundsReference
Front tire6.50-16Reference
2WD Rear tire14.9-28Reference
2WD Standard tires (ag)Front: 6.50-16. Rear: 14.9-28Reference
4WD Standard tires (ag)Front: 9.5-24. Rear: 14.9-28Reference
4WD Optional tires (ag)Front: 9.5-28. Rear: 12.4-36Reference
4WD Optional tires (ag)Front: 11.2-28. Rear: 13.6-36Reference
4WD Optional tires (ag)Front: 11.2-24. Rear: 16.9-28Reference
4WD Optional tires (ag)Front: 8.3-24. Rear: 13.6-36Reference
4WD Optional tires (ag)Front: 11.2-24. Rear: 14.9-30Reference
2WD Length352 cmReference
4WD Length370 cmReference
2WD Width169 cmReference
4WD Width161 cmReference
Height (steering wheel)159 cmReference
Height (cab)239 cmReference
2WD Front tread119 to 189 cmReference
4WD Front tread139 to 195 cmReference
Rear tread130 to 180 cmReference
2WD ROPS2080 kgReference
4WD ROPS2575 kgReference
2WD Cab2414 kgReference
4WD Cab2909 kgReference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH80Reference
Speeds
With 14.9-28 rear tires. Reverse speeds are 3% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
