Tractor · 1967Unverified
Renault 57
Renault 57 — Utility tractor · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
1799 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Utility tractorReference
Built in Le Mans, FranceReference
Two-wheel driveReference
Manual steeringReference
Drum brakesReference
Open operator station.Reference
Engine
Renault-Alfa 2.5L 3-cyl dieselReference
Fuel tank54.9 LReference
Engine32.1 kWReference
Renault-Alfa 714Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke98 x 110 mmReference
Power32.1 kWReference
Compression18:1Reference
Rated RPM2150Reference
Torque161.1 NmReference
Torque RPM1550Reference
Firing order1-3-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.0 LReference
Coolant capacity10.0 LReference

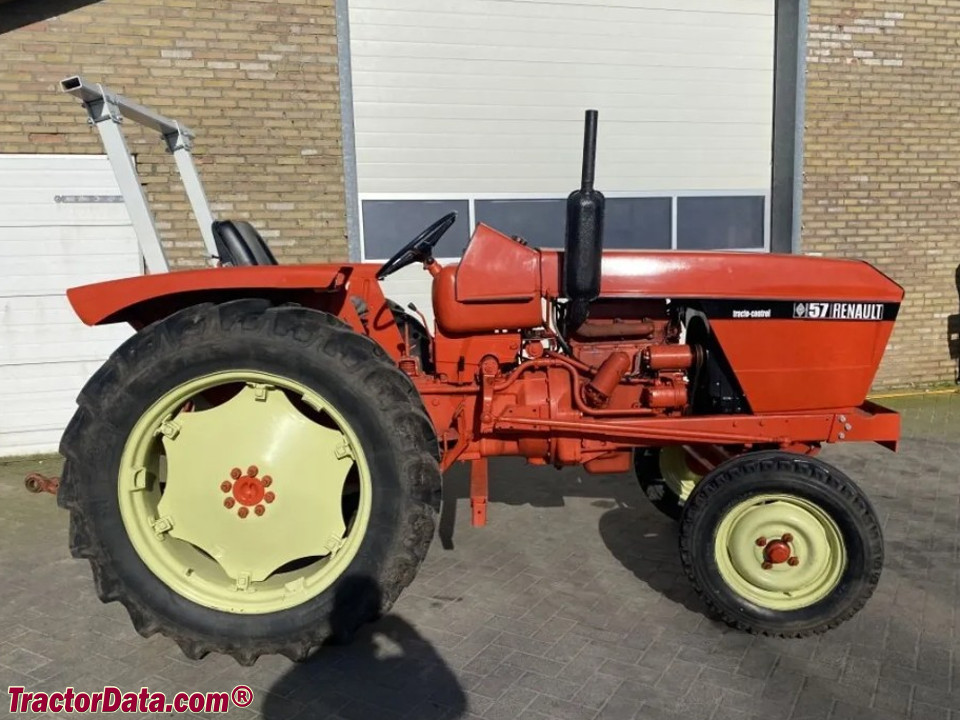

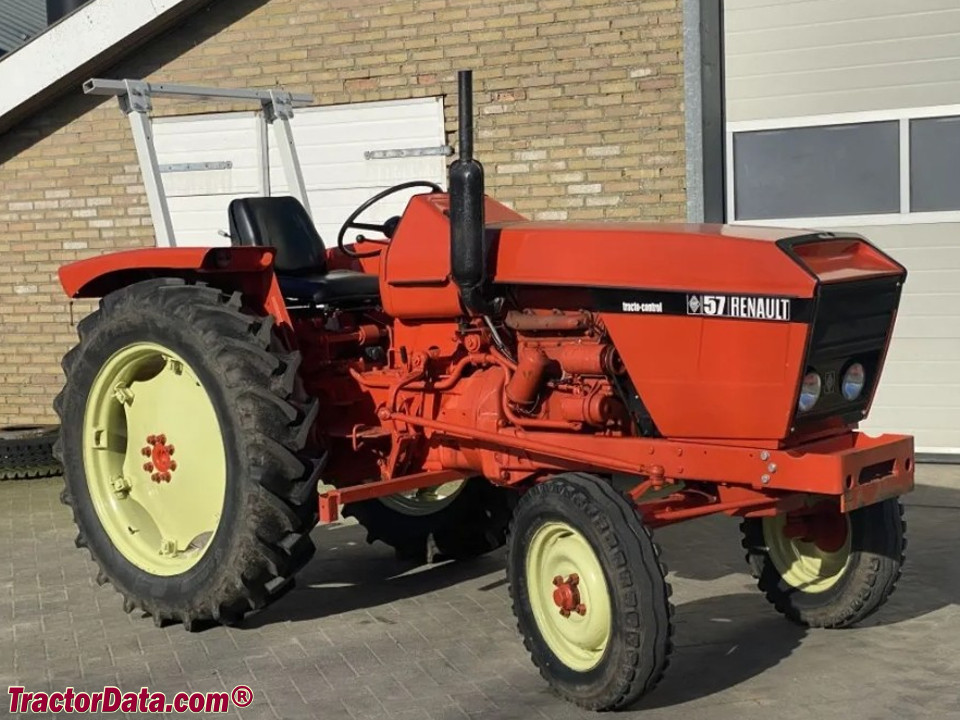

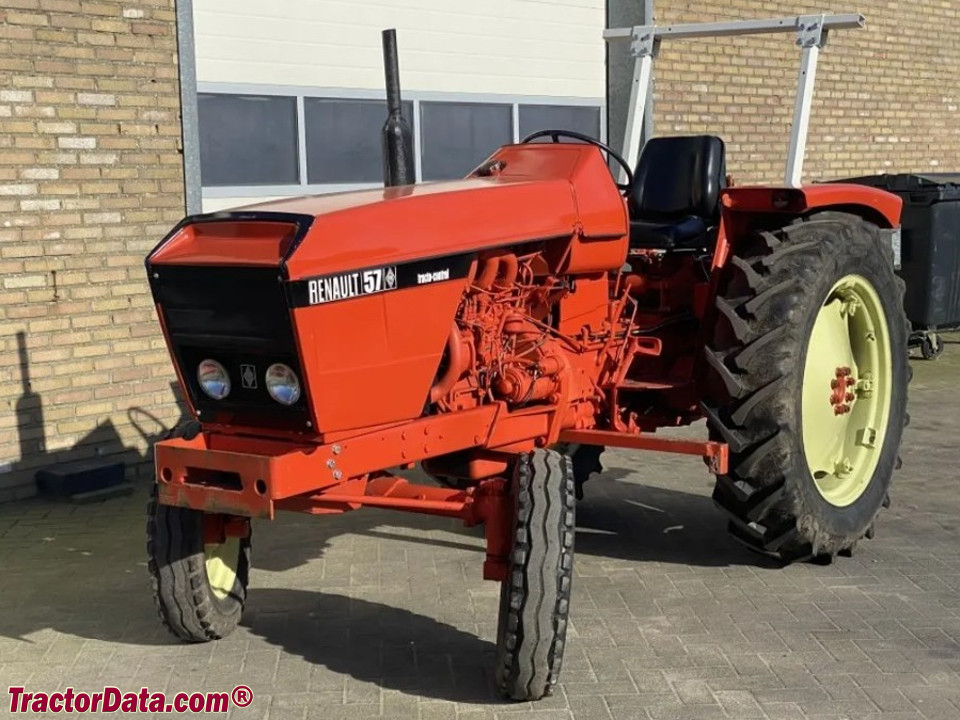

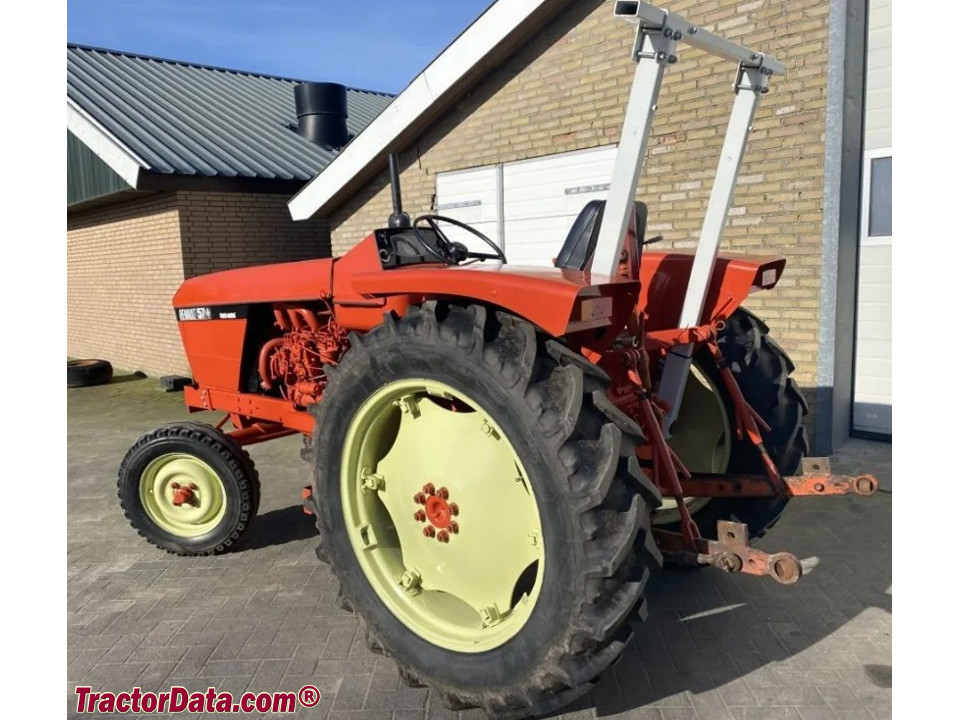

Image courtesy of Jacob Van EekelenReference
Transmission
10-speedReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Total flow26.1 lpmReference
Rear lift2000 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase193 cmReference
Weight1799 kgReference
Front tire6.00-16Reference
Rear tire12.4-32Reference
Ag front6.00-16Reference
Ag rear12.4-32Reference
Length325 cmReference
Width150 cmReference
Height (steering wheel)154 cmReference
Max weight2500 kgReference
Front tread119 to 189 cmReference
Rear tread119 to 180 cmReference
Speeds
With 11-32 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
