Tractor · 1972Unverified

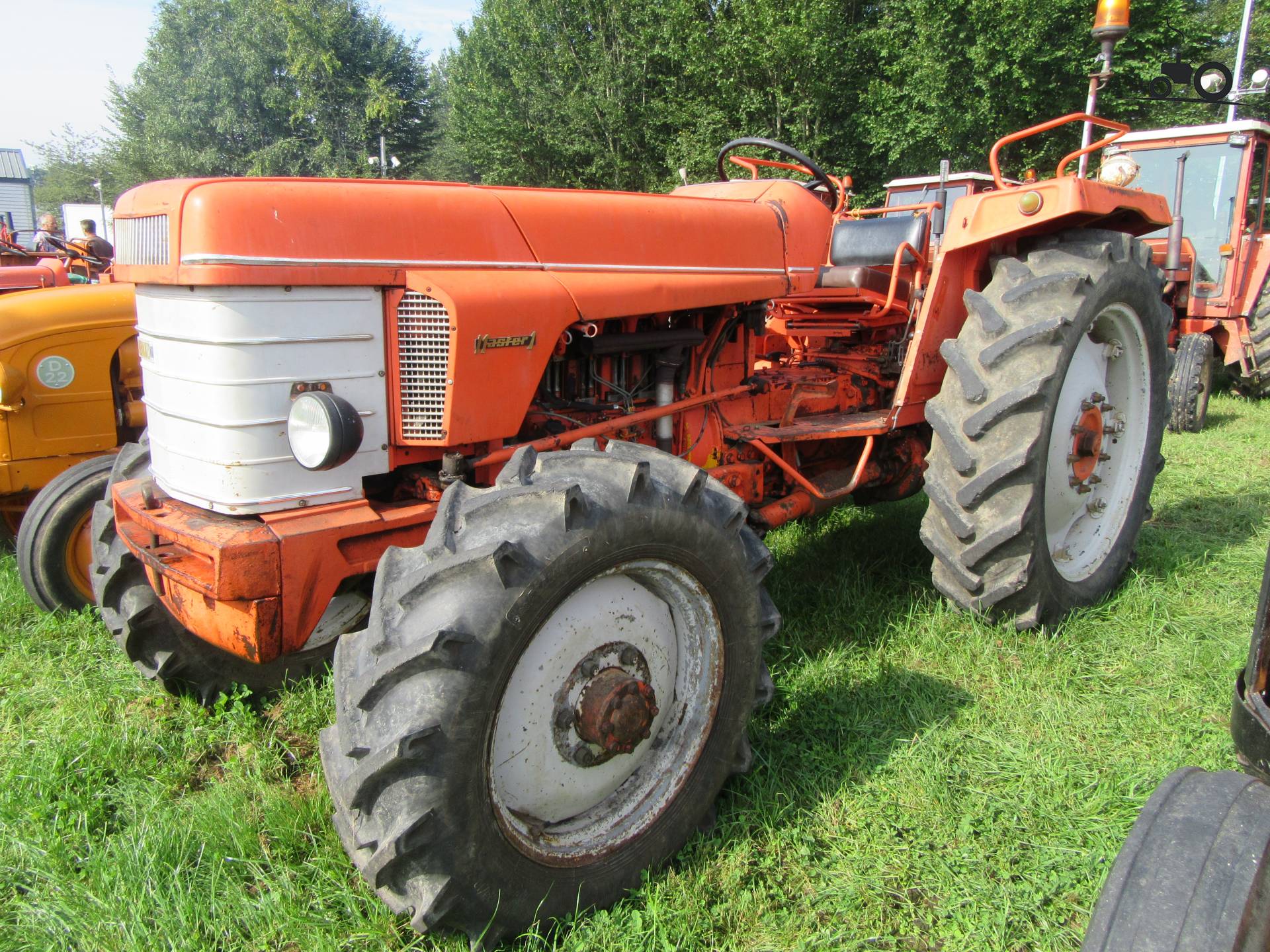

Renault 571
Renault 571 — Utility tractor · 57 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
57 hp
Weight
2490 kg
Hover a source tag to verify
Overview
DistributorRenaultReference
ManufacturerCarraroReference
Utility tractorReference
Built in ItalyReference
Total built1671Reference
Four-wheel driveReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
6000similar Carraro modelReference
Engine
Carraro 3.2L 3-cyl dieselReference
Carraro 4.2L 3-cyl dieselReference
Engine42.5 kWReference
Carraro 315Reference
dieselReference
3-cylinderReference
air-cooledReference
Displacement3.2 LReference
Bore/Stroke110 x 110 mmReference
Power42.5 kWReference
Fuel systemdirect injectionReference
Compression17:1Reference
Rated RPM2000Reference
Idle RPM550-2100Reference
Firing order1-3-2Reference
Carraro 430Reference
Displacement4.2 LReference
Bore/Stroke120 x 125 mmReference
Transmission
8-speed gearReference
16-speedReference
TypegearReference
Gears8 forward and 2 reverseReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1710Reference
Dimensions
Wheelbase201 cmReference
Weight2490 kgReference
Front tire8-24Reference
Rear tire12-28Reference
Standard tires (ag)Front: 8-24. Rear: 12-28Reference
Length338 cmReference
Height (steering wheel)153 cmReference
Ground clearance38 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
