Tractor · 1989Unverified

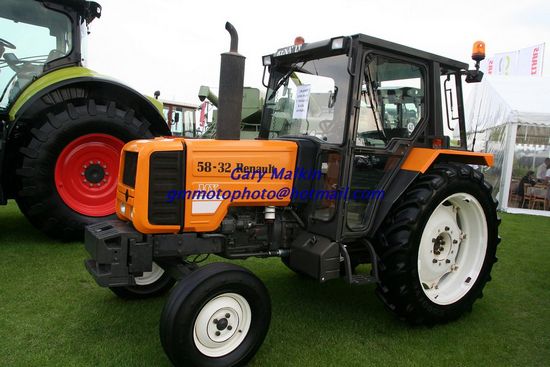

Renault 58-32 MX
Renault 58-32 MX — Utility tractor · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
5633 to 6074 pounds
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Utility tractorReference
Two-wheel driveReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS. Cab available with optional air-conditioning.Reference
Variants
58-344WDReference
Engine
MWM 3.1L 3-cyl dieselReference
Fuel tank115.1 LReference
Engine40.3 kWReference
MWM D226-3Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke105 x 120 mmReference
Power40.3 kWReference
Rated RPM2250Reference
Torque192.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
12-speed shuttleReference
24-speed creeperReference
TypeshuttleReference
Gears12 forward and reverseReference
Four gears in three ranges.Reference
TypecreeperReference
Gears24 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Total flow26.1 lpmReference
Total flow37.9 lpmReference
Rear TypeIIReference
Rear lift2810 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2012Reference
Engine RPM1000@2313Reference
Dimensions
Wheelbase227 cmReference
Weight5633 to 6074 poundsReference
Front tire6.50-16Reference
Rear tire14.9-28Reference
Ag front6.50-16Reference
Ag rear14.9-28Reference
Ag front7.50-16Reference
Ag front7.50-18Reference
Ag rear16.9-28Reference
Ag rear13.6-38Reference
Ag rear12.4-38Reference
Length361 cmReference
Width185 cmReference
Height (ROPS)234 cmReference
Height (cab)239 cmReference
ROPS Weight2555 kgReference
Cab Weight2755 kgReference
Clearance (front axle)39 cmReference
Clearance (rear axle)45 cmReference
Front tread150 to 189 cmReference
Rear tread139 to 180 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Speeds
With 14.9-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
