Tractor · 1984Unverified

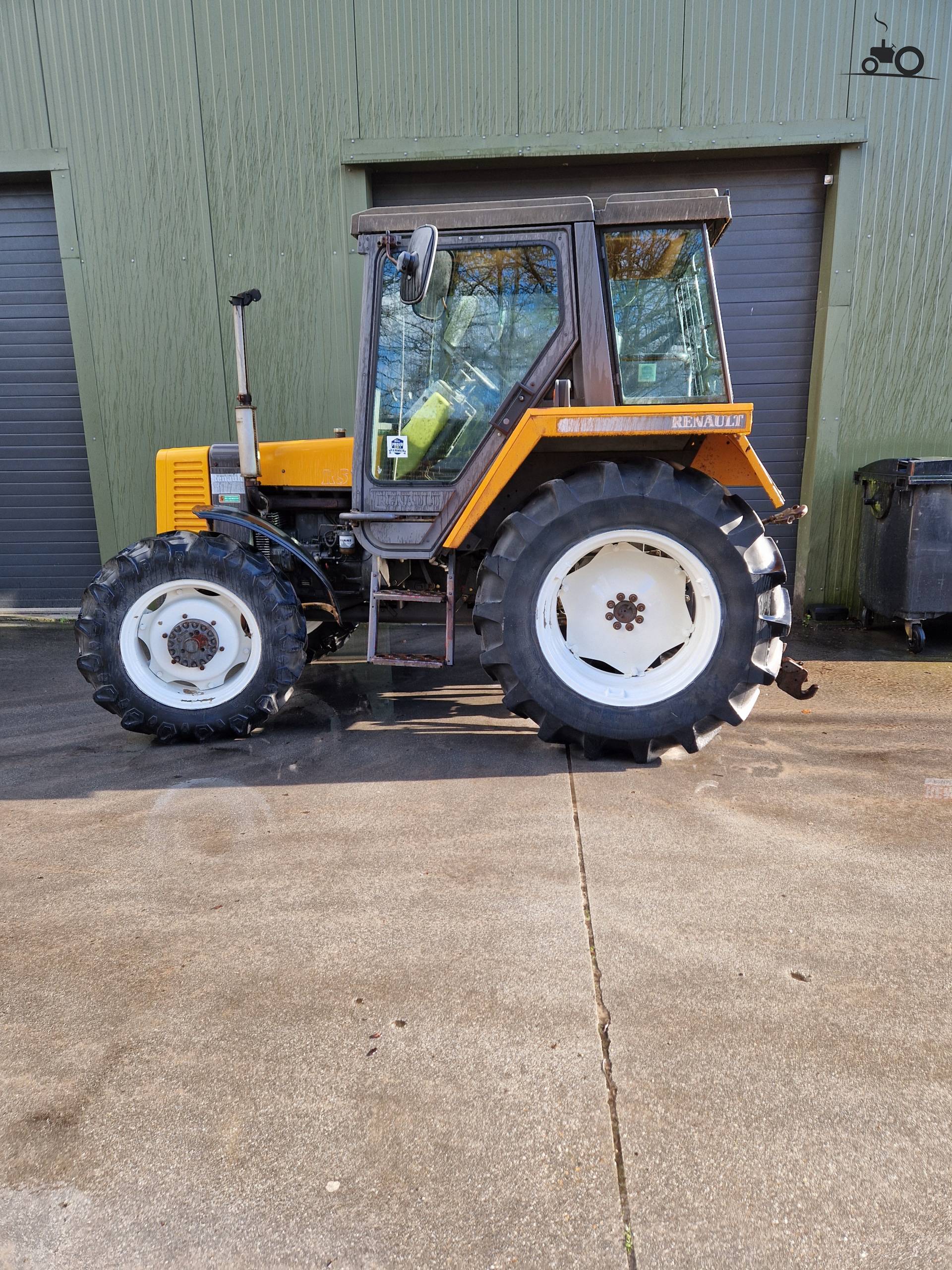

Renault 61-14 RS
Renault 61-14 RS · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
3350 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Dry disc brakesReference
standardReference
Variants
61-122WDReference
Engine
MWM 3.1L 3-cyl dieselReference
Fuel tank99.9 LReference
Engine44.7 kWReference
MWM D226-3Reference
dieselReference
3-cylinderReference
Displacement3.1 LReference
Bore/Stroke105 x 120 mmReference
Power44.7 kWReference
Rated RPM2350Reference
Torque205.0 NmReference
Torque RPM1500Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Total flow35.2 lpmReference
Rear lift2810 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase224 cmReference
Weight3350 kgReference
Front tire11.2-24Reference
Rear tire16.9-28Reference
Ag front11.2-24Reference
Ag rear16.9-28Reference
Length375 cmReference
Height251 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
