Tractor · 1980Unverified

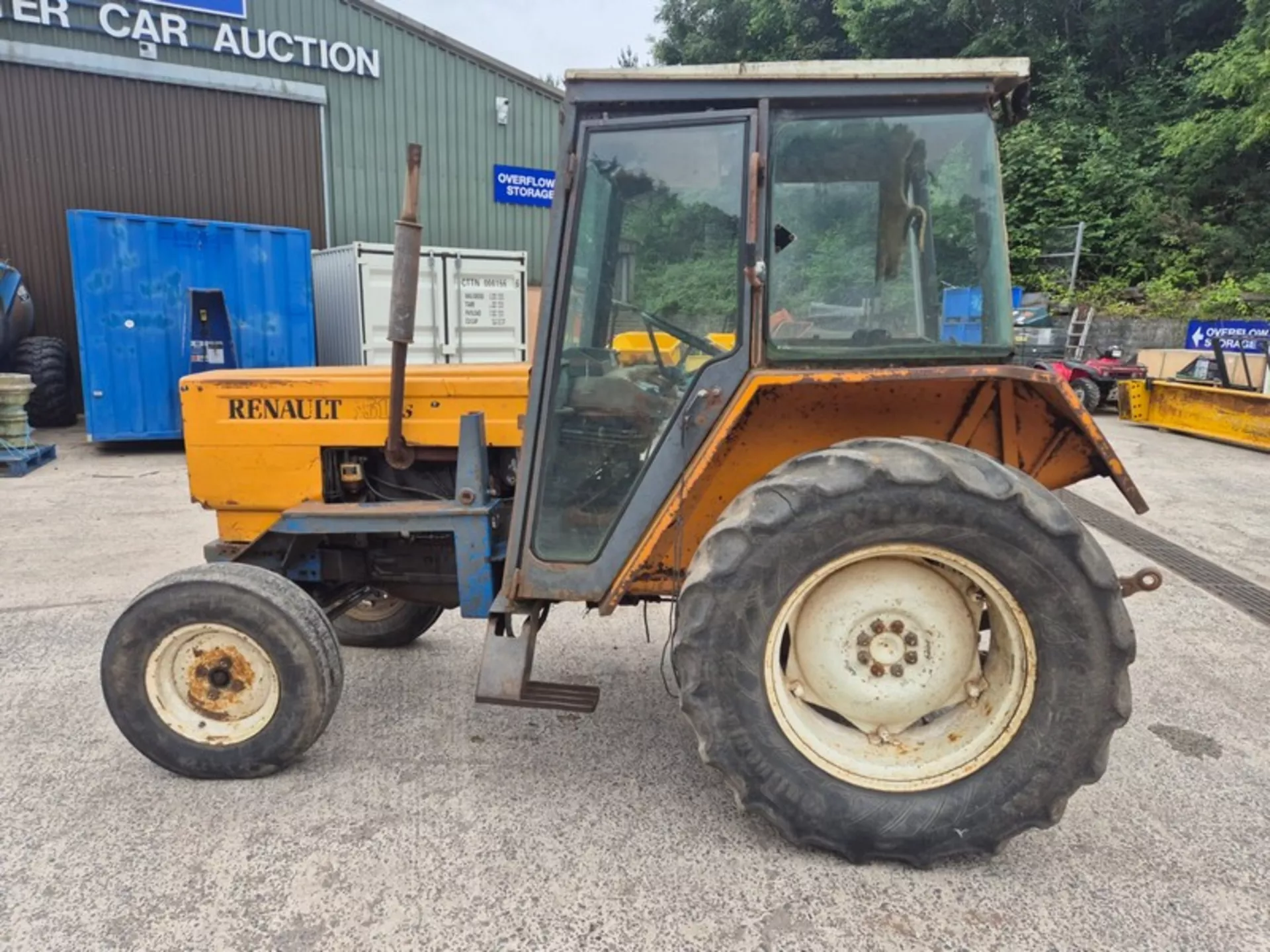

Renault 651S
Renault 651S — S Series · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
5203 to 7000 pounds
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Dry disc brakesReference
ROPS. Cab optional.Reference
Engine
MWM 3.8L 4-cyl dieselReference
Fuel tank65.1 LReference
Engine48.5 kWReference
MWM D227-4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke98 x 120 mmReference
Power48.5 kWReference
Compression17.8:1Reference
Rated RPM2350Reference
Torque220.1 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears in three ranges with shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure180.0 barReference
Total flow27.3 lpmReference
Rear TypeIIReference
Rear lift2500 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM551@2350Reference
Engine RPM642@2350 (540/1000)Reference
Engine RPM1099@2350Reference
Dimensions
2WD Wheelbase224 cmReference
4WD Wheelbase223 cmReference
Weight5203 to 7000 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-28Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-28Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-28Reference
4WD Optional tires (ag)Front: 12.4-24. Rear: 16.9-30Reference
4WD Optional tires (ag)Front: 11.2-24. Rear: 14.9-30Reference
4WD Optional tires (ag)Front: 9.5-28. Rear: 12.4-36Reference
4WD Optional tires (ag)Front: 11.2-28. Rear: 13.6-28Reference
2WD Length360 cmReference
4WD Length379 cmReference
Width183 cmReference
Height (steering wheel)161 cmReference
Height (cab)241 cmReference
2WD Front tread119 to 189 cmReference
4WD Front tread139 to 195 cmReference
Rear tread139 to 180 cmReference
2WD ROPS2360 kgReference
2WD Cab2694 kgReference
4WD ROPS2839 kgReference
4WD Cab3175 kgReference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH80Reference
Speeds
With 16.9-28 rear tires. Reverse speeds are 3% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
