Tractor · 1987Unverified

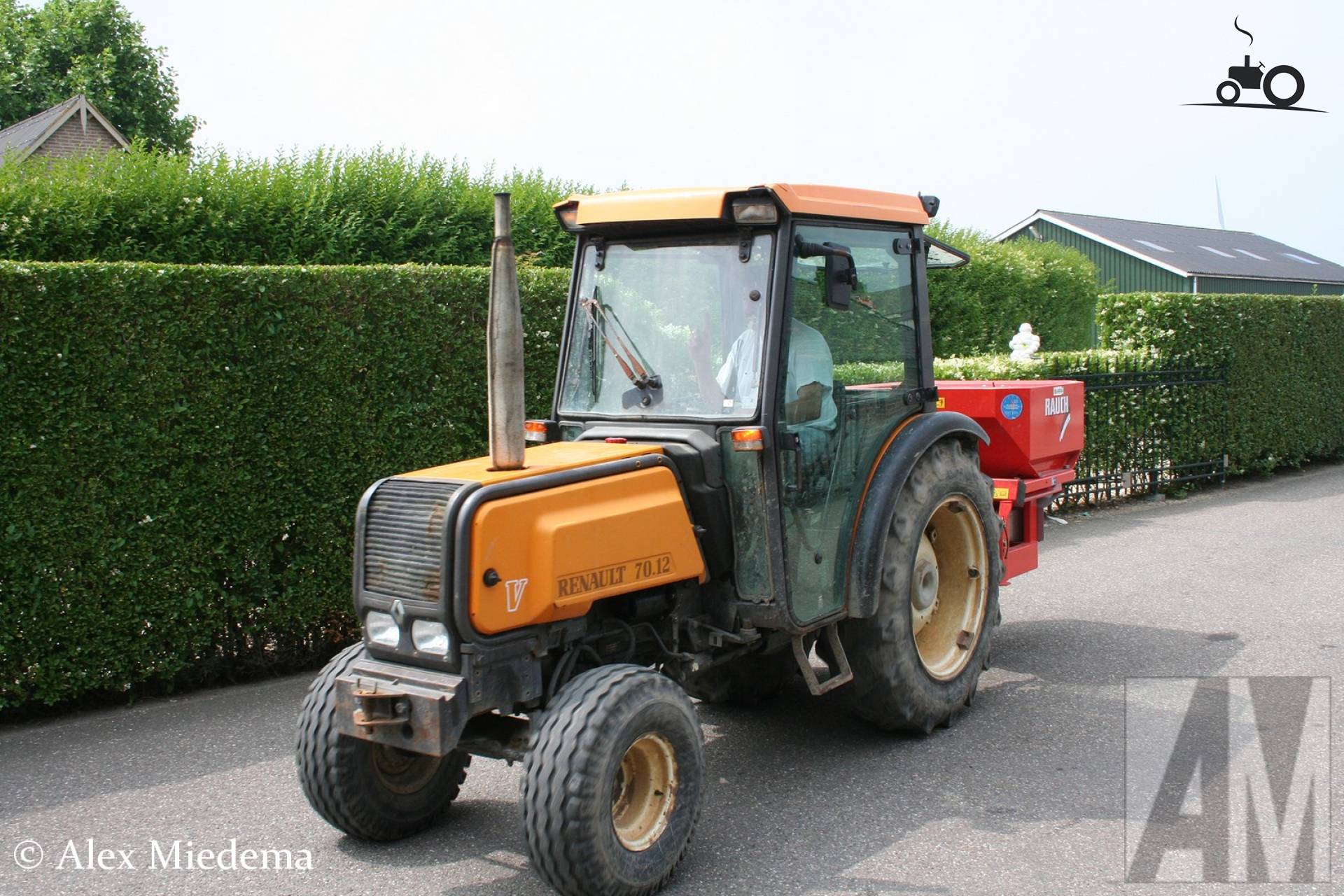

Renault 70-12 LB
Renault 70-12 LB — LB Series · 66 hp. Reference specifications; pending source verification.
The Renault 70-12 LB is a tractor with a rated power output of 66 hp, placing it in the middle of its class in terms of power. Manufactured from 1987 to 1998, the 70-12 LB features a 4-cylinder diesel air-cooled engine coupled with a 12-speed gearbox and two-wheel drive. Its listed weight is 2300 kg, suitable for tasks covering approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
66 hp
Weight
2300 kg
Catalogue coverage
Variants represented
2
Richest spec table
50 rows
Recorded power
66 hp
Recorded weight
2300 kg
Transmissions
12-speed Four gears in three ranges with mechanical shuttle.
Production years
1987-1998
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorRenaultReference
ManufacturerCarraroReference
Utility tractorReference
Built in ItalyReference
Two-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Variants
70-12 LB2WDReference
Engine
Deutz 3.8L 4-cyl dieselReference
Fuel tank62.1 LReference
Engine49.0 kWReference
Deutz F4 L 912Reference
dieselReference
4-cylinderReference
air-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power49.0 kWReference
Rated RPM2350Reference
Torque229.0 NmReference
Torque RPM1600Reference
Starter typeelectricReference
Transmission
12-speed Four gears in three ranges with mechanical shuttle.Reference
TypeFour gears in three ranges with mechanical shuttle.Reference
Gears12 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Pressure180.0 barReference
Valves1Reference
Pump flow36.3 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift3477 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Weight2300 kgReference
Front tire7.50-16Reference
Rear tire16.9-28Reference
Ag front7.50-16Reference
Ag rear16.9-28Reference
Ag rear12.4-36Reference
Length348 cmReference
Width171 cmReference
Height (ROPS)232 cmReference
Height (cab)229 cmReference
Max weight4700 kgReference
Front tread133 to 193 cmReference
Rear tread130 to 189 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
