Tractor · 1987Unverified

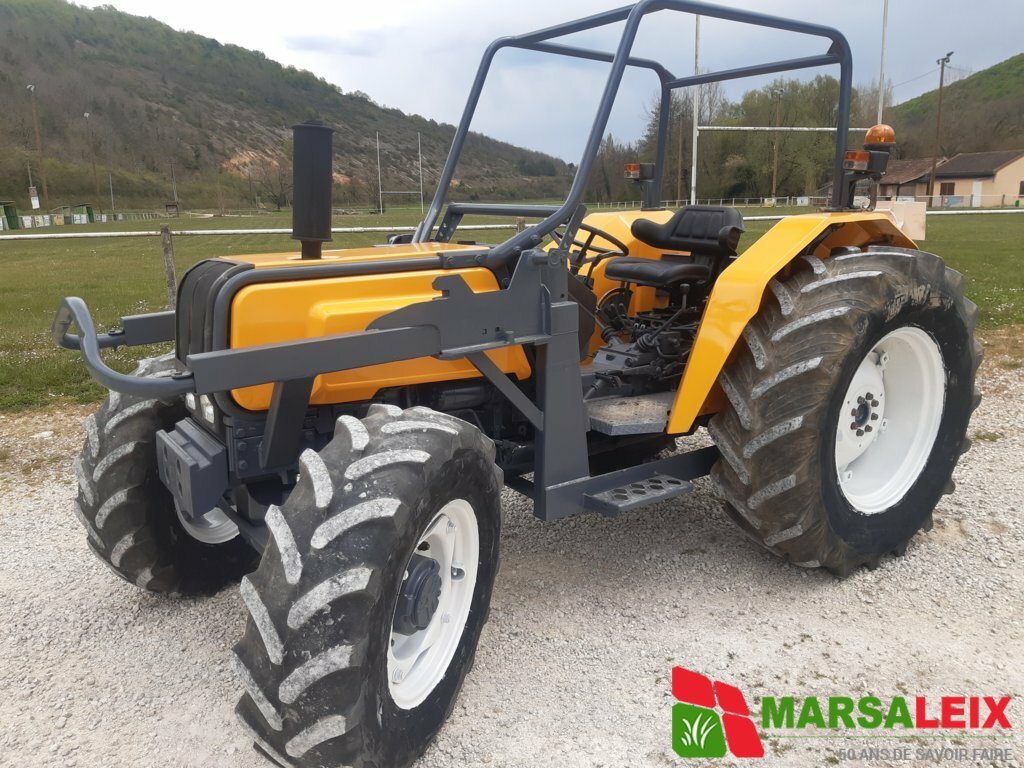

Renault 70-14 LB

Name: Renault 70-14 LB
Brand: Renault

Renault 70-14 LB — LB Series · 66 hp. Reference specifications; pending source verification.

The Renault 70-14 LB is a tractor model with a rated power of 66 hp, a mid-range figure for its class. It was manufactured from 1987 to 1998. The tractor is equipped with a 4-cylinder diesel air-cooled engine and four-wheel drive, paired with a 12-speed gearbox. Its operating weight is listed at 2550 kg, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

66 hp

Weight

2550 kg

Catalogue coverage

Variants represented

Richest spec table

49 rows

Recorded power

66 hp

Recorded weight

2550 kg

Transmissions

12-speed Four gears in three ranges with mechanical shuttle.

Production years

1987-1998

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorRenaultReference

ManufacturerCarraroReference

Utility tractorReference

Built in ItalyReference

Four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Four-post ROPS. Cab optional.Reference

Variants

70-12 LB2WDReference

Engine

Deutz 3.8L 4-cyl dieselReference

Fuel tank62.1 LReference

Engine49.0 kWReference

Deutz F4 L 912Reference

dieselReference

4-cylinderReference

air-cooledReference

Displacement3.8 LReference

Bore/Stroke100 x 120 mmReference

Power49.0 kWReference

Rated RPM2350Reference

Torque229.0 NmReference

Torque RPM1600Reference

Starter typeelectricReference

Transmission

12-speed Four gears in three ranges with mechanical shuttle.Reference

TypeFour gears in three ranges with mechanical shuttle.Reference

Gears12 forward and reverseReference

Clutchdry discReference

PTO & Hydraulics

Pressure180.0 barReference

Valves1Reference

Pump flow36.3 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift3477 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Weight2550 kgReference

Front tire12.4-20Reference

Rear tire16.9-28Reference

Standard tires (ag)Front: 12.4-20. Rear: 16.9-28Reference

Optional tires (ag)Front: 9.5-28. Rear: 12.4-36Reference

Length356 cmReference

Width171 cmReference

Height (ROPS)235 cmReference

Height (cab)231 cmReference

Max weight4700 kgReference

Front tread120 to 184 cmReference

Rear tread130 to 189 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
