Tractor · 1984Unverified

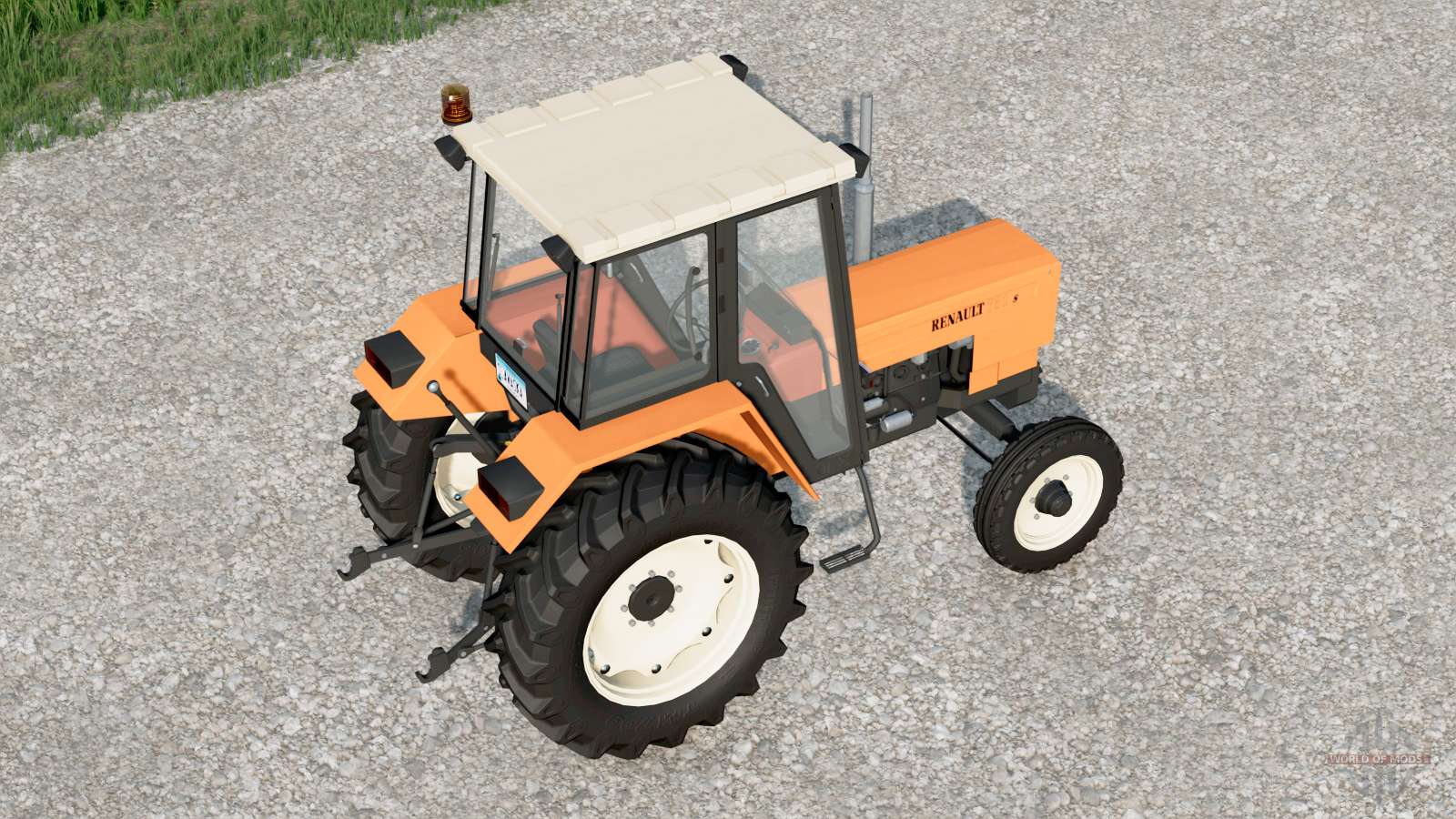

Renault 701
Renault 701 — Utility tractor · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
2300 kg
Hover a source tag to verify
Overview
DistributorRenaultReference
ManufacturerCarraroReference
Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Four-post ROPS.Reference
Engine
Perkins 3.9L 4-cyl dieselReference
Fuel tank68.1 LReference
Engine51.5 kWReference
Perkins 4.236Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power51.5 kWReference
Rated RPM2200Reference
Torque240.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
TypegearReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)44.2 kWReference
Pressure180.0 barReference
Pump flow29.9 lpmReference
Rear TypeIIReference
Rear lift1744 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2014Reference
Engine RPM1000@2119Reference
Dimensions
Wheelbase193 cmReference
Weight2300 kgReference
Front tire8.25-16Reference
Rear tire14.9-24Reference
Standard tires (ag)Front: 8.25-16. Rear: 14.9-24Reference
Length305 cmReference
Width144 cmReference
Height (steering wheel)138 cmReference
Ground clearance26 cmReference
Front tread117 to 124 cmReference
Rear tread107 to 134 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps28Reference
Battery volts12Reference
Battery AH100Reference
Speeds
With 14.9-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
