Tractor · 1985Unverified

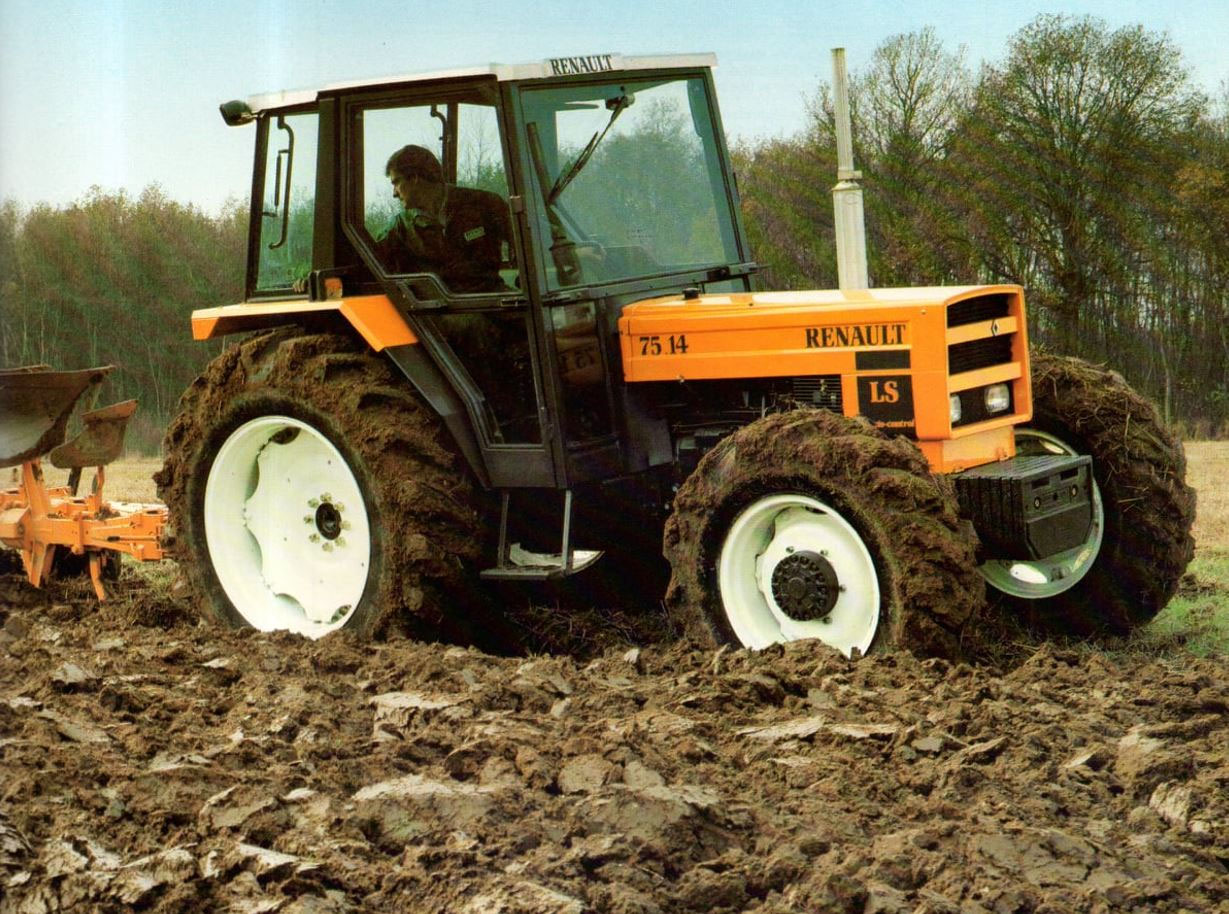

Renault 75-14 LS
Renault 75-14 LS · 70 hp. Reference specifications; pending source verification.
The Renault 75-14 LS is a tractor with a rated power output of 70 hp, a mid-range figure for its class. It was manufactured from 1985 to 1989 and features a 4-cylinder diesel engine paired with a four-wheel drive system and a hydrostatic transmission. The tractor has an operating weight of 3420 kg and is suited for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
3420 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
70 hp
Recorded weight
3420 kg
Transmissions
12-speed
Production years
1985-1989
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Dry disc brakesReference
standardReference
Variants
75-122WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank82.1 LReference
Engine52.2 kWReference
MWM D226-4Reference
dieselReference
4-cylinderReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power52.2 kWReference
Rated RPM2350Reference
Torque260.1 NmReference
Torque RPM1500Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Total flow31.0 lpmReference
Rear lift3750 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase239 cmReference
Weight3420 kgReference
Front tire13.6-24Reference
Rear tire16.9-34Reference
Ag front13.6-24Reference
Ag rear16.9-34Reference
Length405 cmReference
Height247 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
