Tractor · 1983Unverified

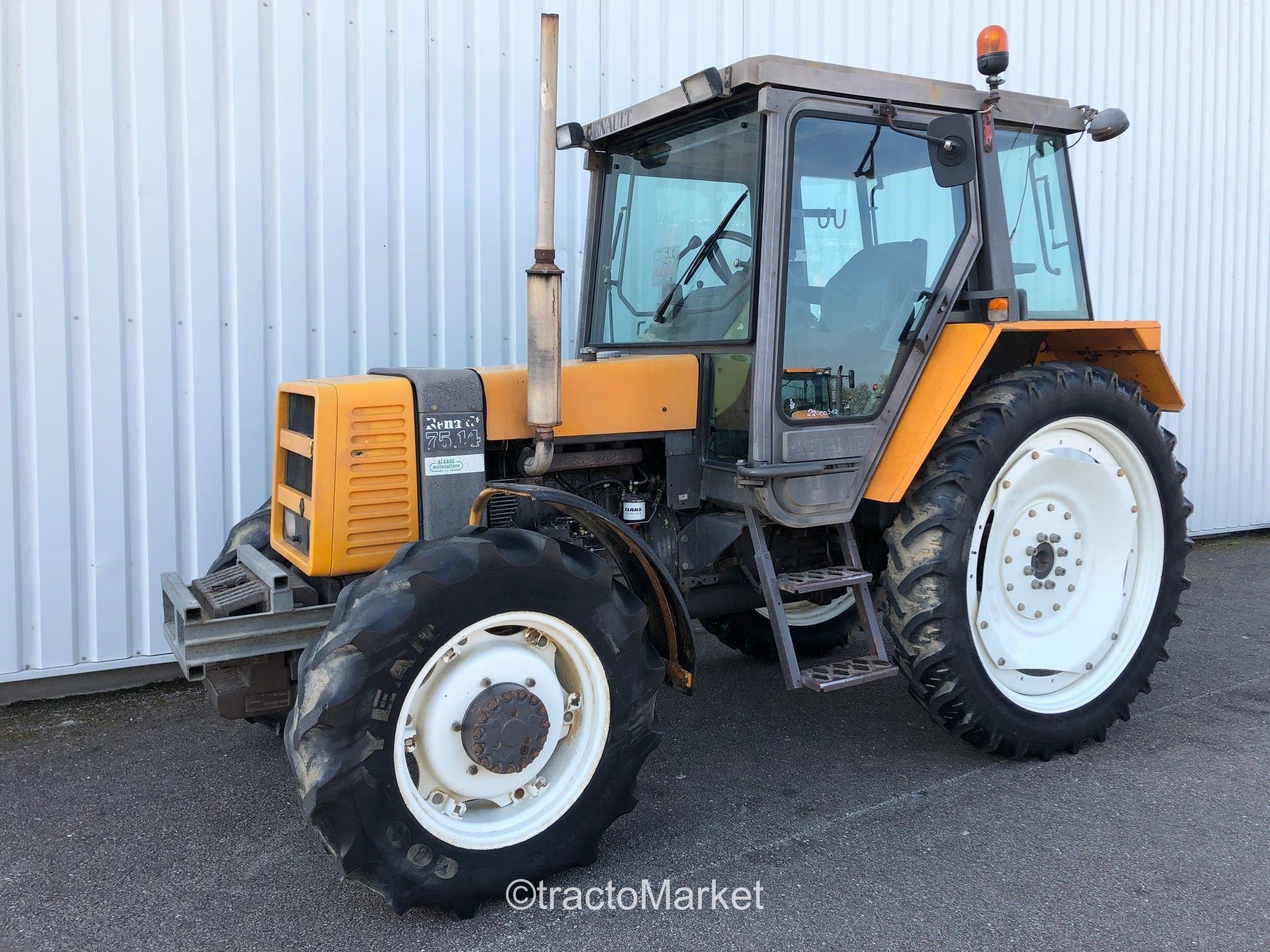

Renault 75-14 RS
Renault 75-14 RS · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
3466 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Dry disc brakesReference
standardReference
Variants
75-122WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine55.9 kWReference
MWM D226-4Reference
dieselReference
4-cylinderReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power55.9 kWReference
Rated RPM2350Reference
Torque260.1 NmReference
Torque RPM1500Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Total flow41.6 lpmReference
Rear lift3750 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase243 cmReference
Weight3466 kgReference
Front tire13.6-24Reference
Rear tire16.9-34Reference
Ag front13.6-24Reference
Ag rear16.9-34Reference
Length403 cmReference
Height261 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
