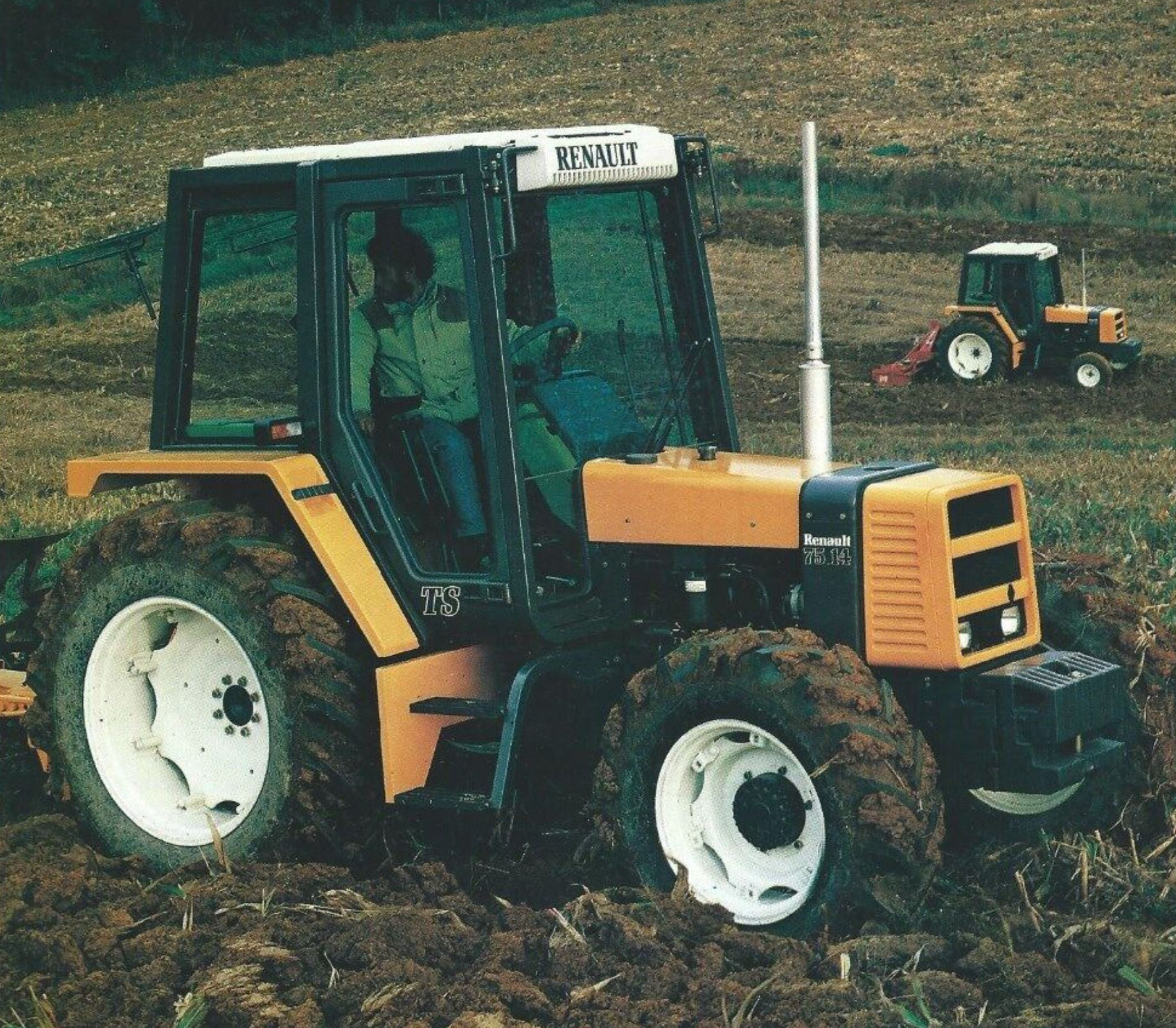

The Renault 75-14 TS is a tractor model with a rated output of 75 horsepower, positioning it in the middle of its class in terms of power. Manufactured from 1982 to 1984, this tractor features a 4-cylinder diesel engine, which powers a four-wheel drive system with a hydrostatic transmission. It is suited for jobs involving up to 200 acres of land.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
75 hp
Transmissions
12-speed
Production years
1982-1984
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Dry disc brakesReference
standardReference
Variants
75-122WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine55.9 kWReference
MWM D226-4Reference
dieselReference
4-cylinderReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power55.9 kWReference
Rated RPM2350Reference
Torque260.1 NmReference
Torque RPM1500Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Total flow41.6 lpmReference
Rear lift3750 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase239 cmReference
Front tire13.6-24Reference
Rear tire16.9-34Reference
Ag front13.6-24Reference
Ag rear16.9-34Reference
Length404 cmReference
Height277 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
