Tractor · 1973Unverified

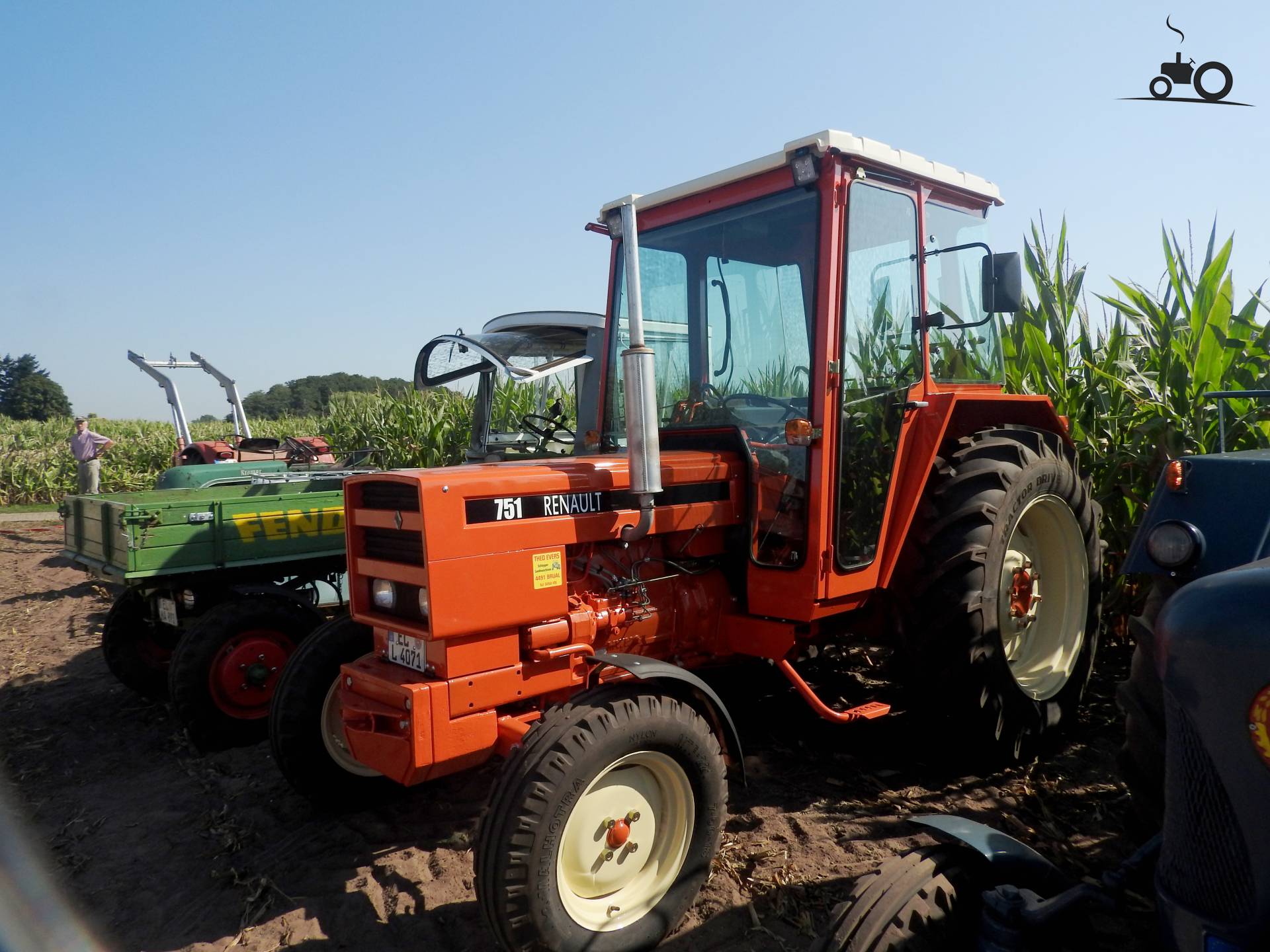

Renault 751
Renault 751 · 81 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
81 hp
Weight
6604 to 7530 pounds
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Built in Le Mans, FranceReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Dry disc brakesReference
Cab standard with optional heater.Reference
Variants
751-44WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank76.8 LReference
Engine (gross)60.4 kWReference
Engine (net)55.2 kWReference
MWM D226-4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power (net)55.2 kWReference
Power (gross)60.4 kWReference
Rated RPM2350Reference
Torque255.1 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
16-speed creeperReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
TypecreeperReference
Gears16 forward and reverseReference
PTO & Hydraulics
Pump flow31.4 lpmReference
Rear TypeIIReference
Rear lift2750 kgReference
Rear lift3850 kgReference
Rear PTOindependentReference
Rear PTO Type1000 (1.75)Reference
Engine RPM640@2350Reference
Engine RPM1000@2127Reference
Dimensions
2WD Wheelbase242 cmReference
Weight6604 to 7530 poundsReference
Front tire7.50-18Reference
2WD Rear tire13.6/12-38Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 13.6/12-38Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 16.9-34Reference
2WD Optional tires (ag)Front: 7.50-18. Rear: 16.9/14-34Reference
4WD Optional tires (ag)Front: 7.5.-28. Rear: 13.6-38Reference
Length413 cmReference
Width166 cmReference
Height (cab)270 cmReference
2WD Weight2995 kgReference
4WD Weight3415 kgReference
2WD Ground clearance49 cmReference
2WD Front tread124 to 184 cmReference
Rear tread130 to 199 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Speeds
With 13.6/12-38 rear tires. Reverse speeds are 1.5% faster than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
