Tractor · 1979Unverified

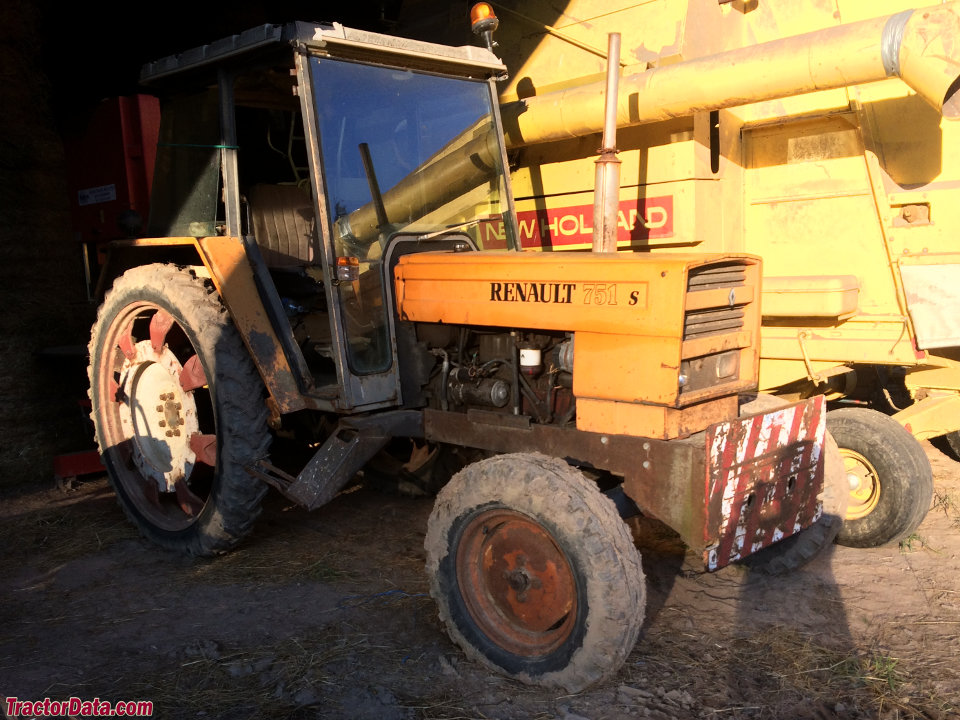

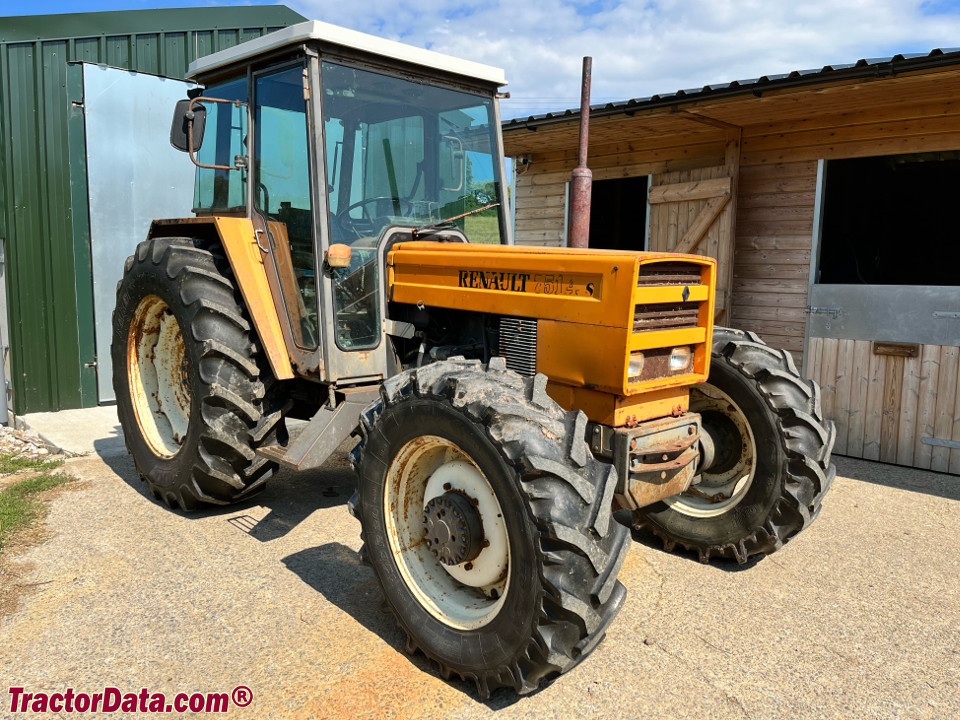

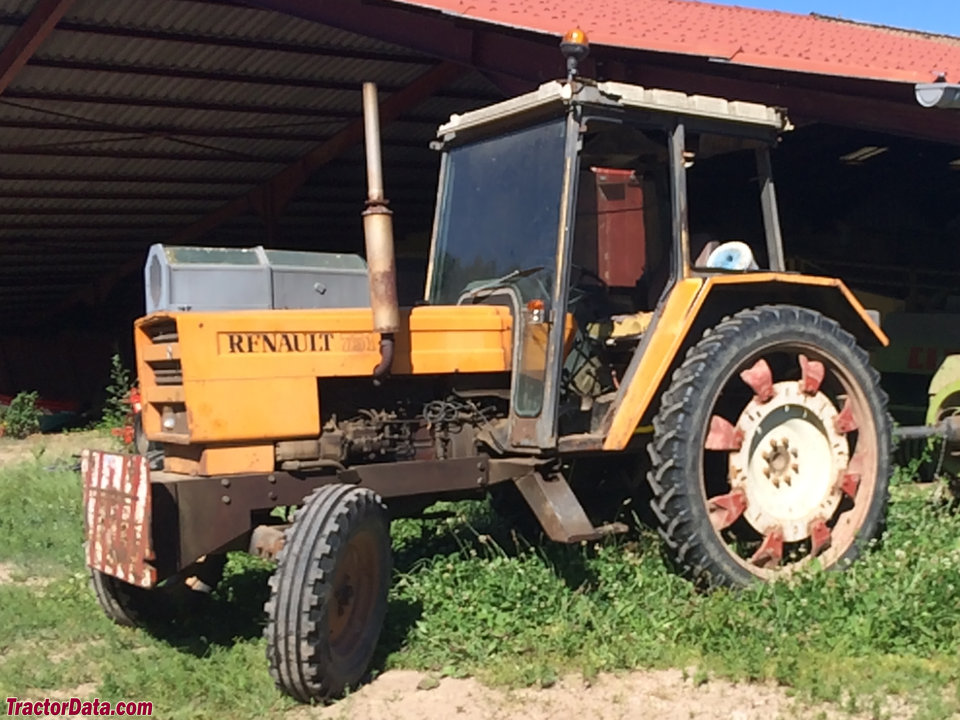

Renault 751S
Renault 751S — S Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
6030 to 8025 pounds
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Dry disc brakesReference
ROPS. Cab optional.Reference
Variants
751 4S4WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank76.8 LReference
Engine55.9 kWReference
MWM D226-4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power55.9 kWReference
Compression17.4:1Reference
Rated RPM2350Reference
Torque266.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
12-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears in three ranges with shuttle.Reference
PTO & Hydraulics
Typeopen centerReference
Pressure180.0 barReference
Total flow30.3 lpmReference
Rear TypeIIReference
Rear lift3850 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM551@2350Reference
Engine RPM642@2350 (540/1000)Reference
Engine RPM1099@2350Reference
Dimensions
2WD Wheelbase236 cmReference
4WD Wheelbase240 cmReference
Weight6030 to 8025 poundsReference
Front tire7.50-18Reference
2WD Rear tire13.6-38Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 13.6-38Reference
4WD Standard tires (ag)Front: 11.2-28. Rear: 13.8-36Reference
2WD Optional tires (ag)Front: 9.00-16. Rear: 16.9-34Reference
4WD Optional tires (ag)Front: 13.6-24. Rear: 16.9-34Reference
2WD Length381 cmReference
4WD Length403 cmReference
Width164 cmReference
2WD Front tread130 to 189 cmReference
4WD Front tread135 to 189 cmReference
Rear tread130 to 200 cmReference
2WD ROPS2735 kgReference
2WD Cab3069 kgReference
4WD ROPS3304 kgReference
4WD Cab3640 kgReference
2WD Steering wheel144 cmReference
4WD Steering wheel166 cmReference
Electrical
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH90Reference
Renault 751S Height
Cab248 cmReference
Speeds
With 16.9-34 rear tires. Reverse speeds are 3% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
