Tractor · 1986Unverified

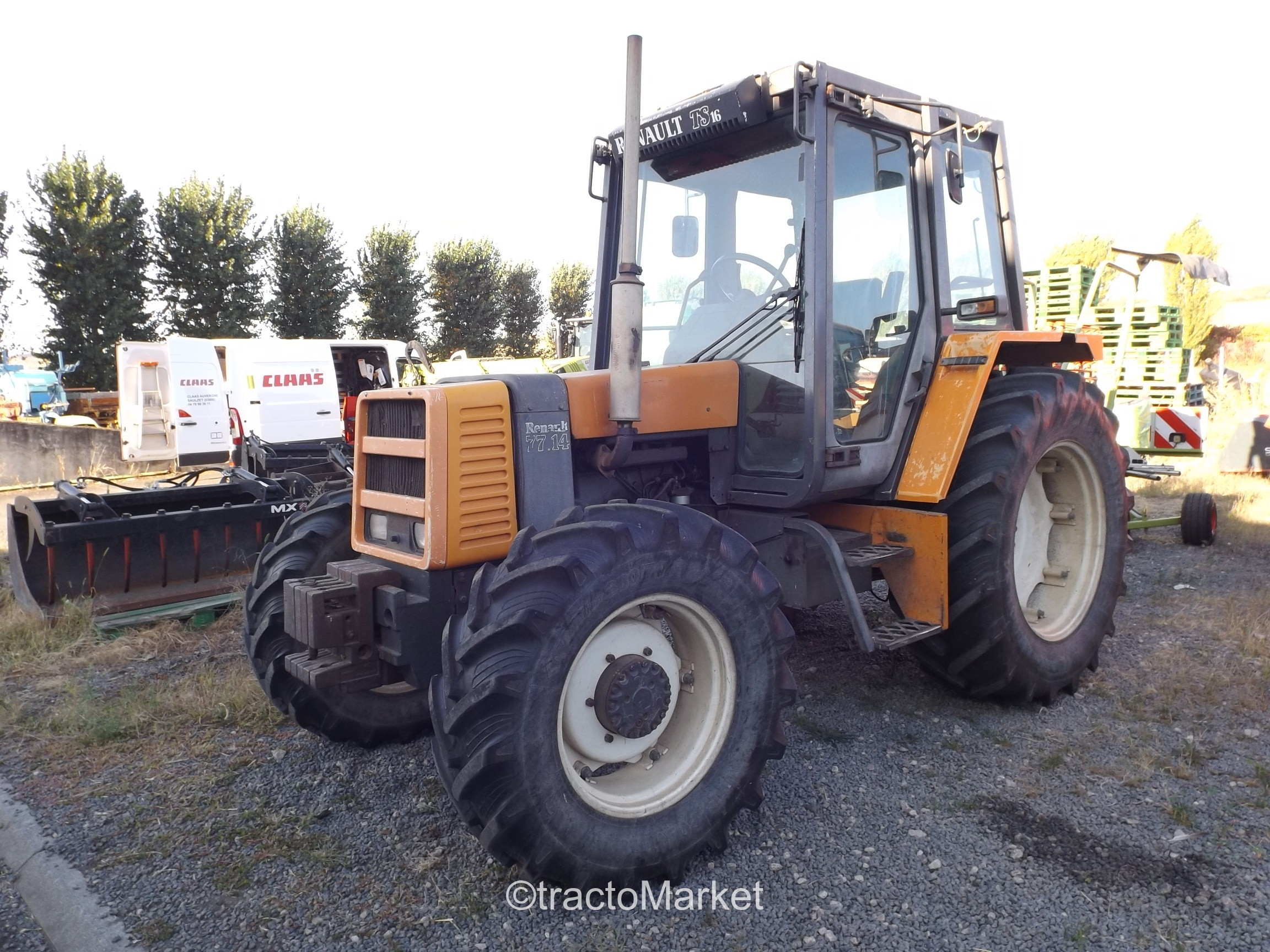

Renault 77-14 TS

Name: Renault 77-14 TS
Brand: Renault

Renault 77-14 TS · 70 hp. Reference specifications; pending source verification.

The Renault 77-14 TS is a tractor with a rated output of 70 horsepower, placing it in the middle of its class for power. Manufactured from 1986 to 1989, it is powered by a 4-cylinder diesel engine, transmitting power through four-wheel drive via a hydrostatic transmission. The listed weight of the Renault 77-14 TS is 4094 kilograms, and it is designed for use on approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

70 hp

Weight

4094 kg

Catalogue coverage

Variants represented

Richest spec table

31 rows

Recorded power

70 hp

Recorded weight

4094 kg

Transmissions

12-speed

Production years

1986-1989

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerRenaultReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Dry disc brakesReference

standardReference

Variants

77-122WDReference

Engine

MWM 4.2L 4-cyl dieselReference

Fuel tank107.9 LReference

Engine52.2 kWReference

MWM D226-4Reference

dieselReference

4-cylinderReference

Displacement4.2 LReference

Bore/Stroke105 x 120 mmReference

Power52.2 kWReference

Rated RPM2350Reference

Torque240.0 NmReference

Torque RPM1500Reference

Transmission

12-speedReference

Gears12 forward and reverseReference

PTO & Hydraulics

Total flow41.6 lpmReference

Rear lift3750 kgReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase239 cmReference

Weight4094 kgReference

Front tire13.6-24Reference

Rear tire16.9-34Reference

Ag front13.6-24Reference

Ag rear16.9-34Reference

Length404 cmReference

Height277 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
