Tractor · 1977Unverified

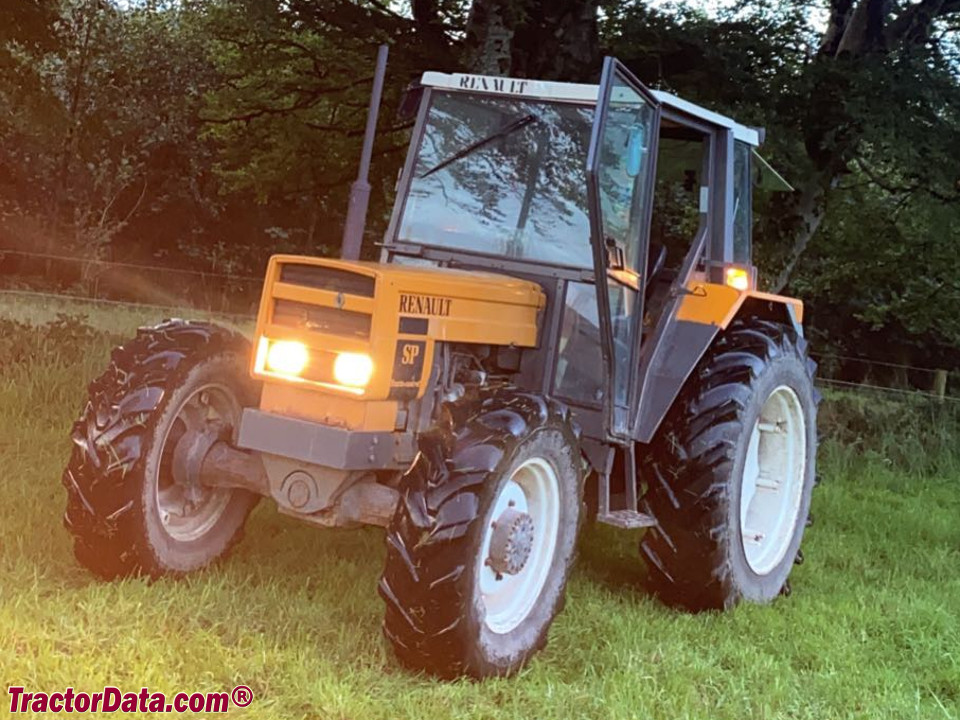

Renault 781
Renault 781 — Row-Crop tractor · 78 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Weight
7718 to 8600 pounds
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Dry disc brakesReference
Cab standardReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank76.8 LReference
Engine58.2 kWReference
MWM D226-4Reference
dieselReference
4-cylinderReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power58.2 kWReference
Rated RPM2350Reference
Torque274.0 NmReference
Torque RPM1350Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Total flow31.4 lpmReference
Rear lift3850 kgReference
Rear PTO Type540/1000Reference
Dimensions
Weight7718 to 8600 poundsReference
Front tire7.50-18Reference
Rear tire16.9-34Reference
Ag front7.50-18Reference
Ag rear16.9-34Reference
Ag front12.4-24Reference
2WD Weight3500 kgReference
4WD Weight3900 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
