Tractor · 1984Unverified

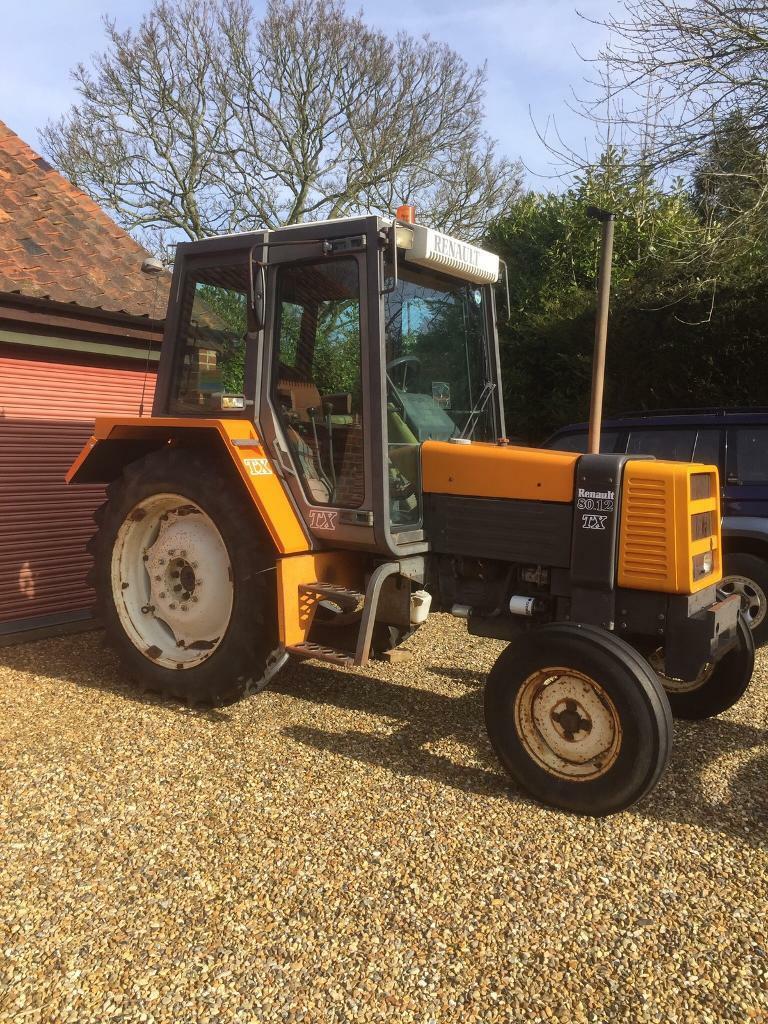

Renault 80-12 TX
Renault 80-12 TX · 78 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Weight
3915 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Two-wheel driveReference
Steeringhydrostatic powerReference
Dry disc brakesReference
standardReference
Variants
80-144WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine58.2 kWReference
MWM D226-4Reference
dieselReference
4-cylinderReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power58.2 kWReference
Rated RPM2350Reference
Torque274.0 NmReference
Torque RPM1500Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Total flow41.6 lpmReference
Rear lift3750 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase239 cmReference
Weight3915 kgReference
Front tire9.00-16Reference
Rear tire16.9-34Reference
Ag front9.00-16Reference
Ag rear16.9-34Reference
Ag front13.6-24Reference
Length404 cmReference
Height277 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
