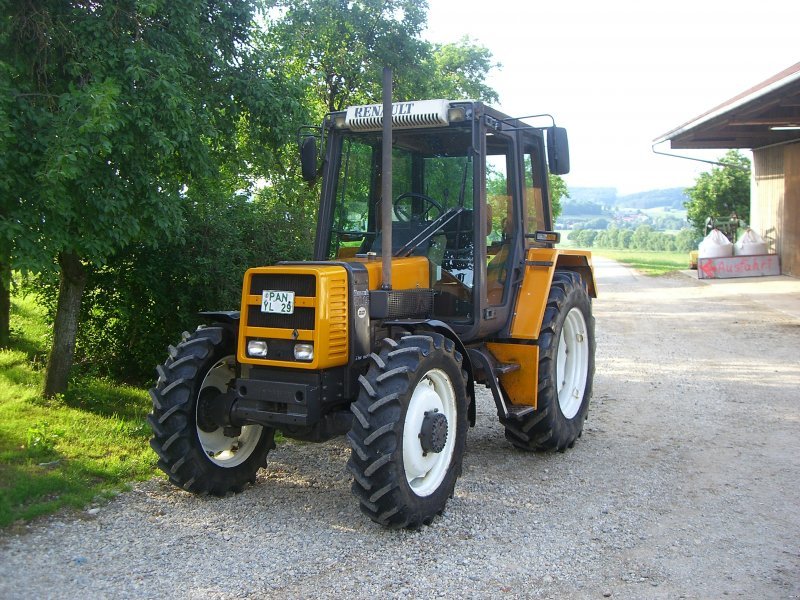

The Renault 80-14 TX is a tractor with a rated power output of approximately 78 hp, falling within the mid-range of its class. It was manufactured between 1984 and 1987. The tractor is equipped with a 4-cylinder diesel engine and four-wheel drive, paired with a hydrostatic transmission. Its operating weight is listed at 4617 kg, making it suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Weight
4617 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
78 hp
Recorded weight
4617 kg
Transmissions
12-speed
Production years
1984-1987
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Dry disc brakesReference
standardReference
Variants
80-122WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank110.1 LReference
Engine58.2 kWReference
MWM D226-4Reference
dieselReference
4-cylinderReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power58.2 kWReference
Rated RPM2350Reference
Torque274.0 NmReference
Torque RPM1500Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Total flow41.6 lpmReference
Rear lift3750 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase239 cmReference
Weight4617 kgReference
Front tire9.00-16Reference
Rear tire16.9-34Reference
Ag front9.00-16Reference
Ag rear16.9-34Reference
Ag front13.6-24Reference
Length404 cmReference
Height277 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
