Tractor · 1967Unverified

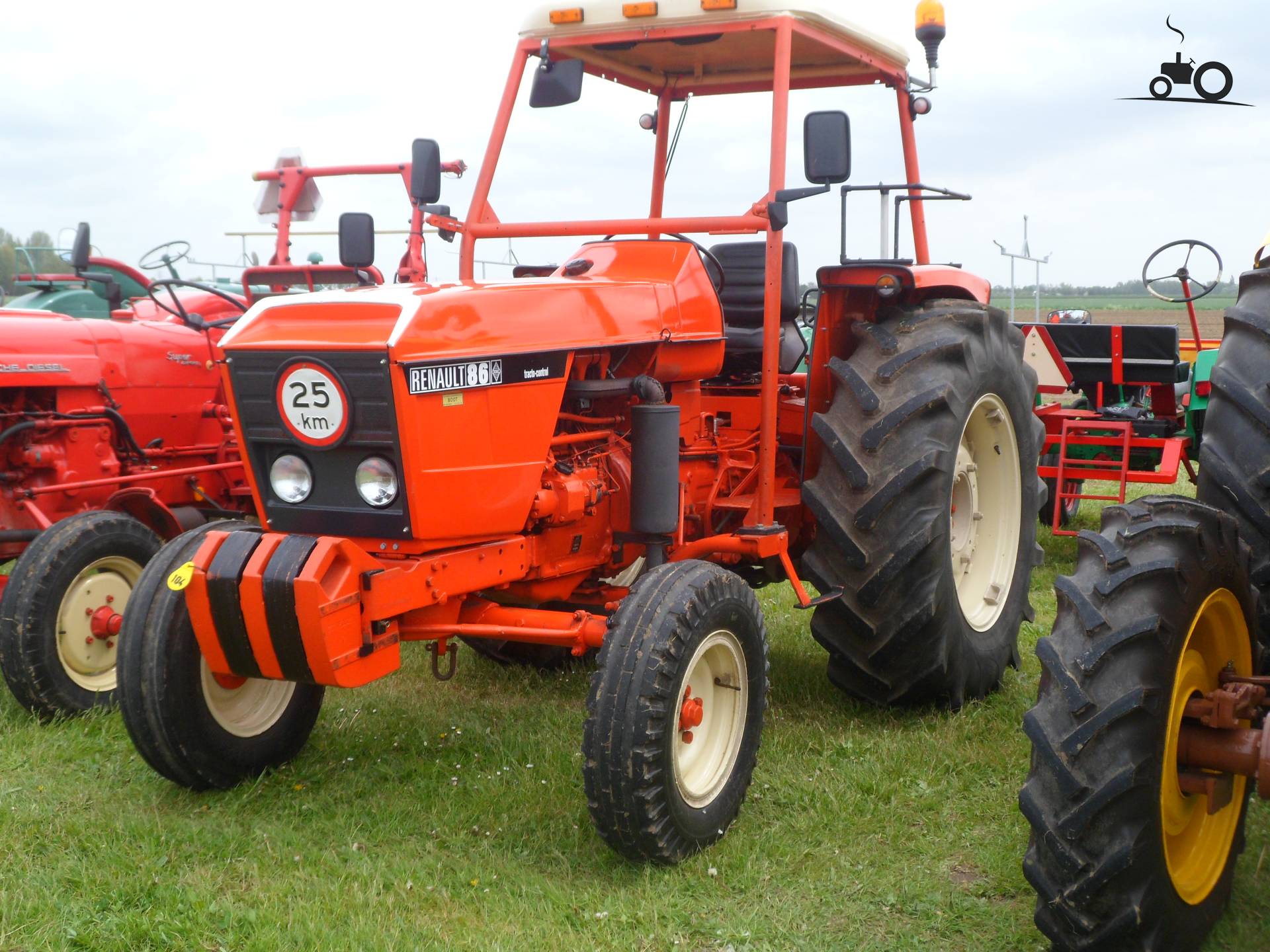

Renault 86
Renault 86 · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
2250 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Two-wheel driveReference
SteeringmechanicalReference
Dry disc brakesReference
Variants
4864WDReference
Engine
MWM 2.6L 3-cylReference
Fuel tank70.0 LReference
Engine37.3 kWReference
MWM D325-3Reference
3-cylinderReference
Displacement2.6 LReference
Bore/Stroke95 x 120 mmReference
Power37.3 kWReference
Rated RPM2500Reference
Torque191.1 NmReference
Torque RPM1590Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Total flow26.1 lpmReference
Rear lift2000 kgReference
Rear PTO Type540/750Reference
Dimensions
Wheelbase207 cmReference
Weight2250 kgReference
Front tire6.50-16Reference
Rear tire12.4-32Reference
Ag front6.50-16Reference
Ag rear12.4-32Reference
Ag front9.3-24Reference
Ag rear16.9-28Reference
Length369 cmReference
Height223 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
