Tractor · 1989Unverified

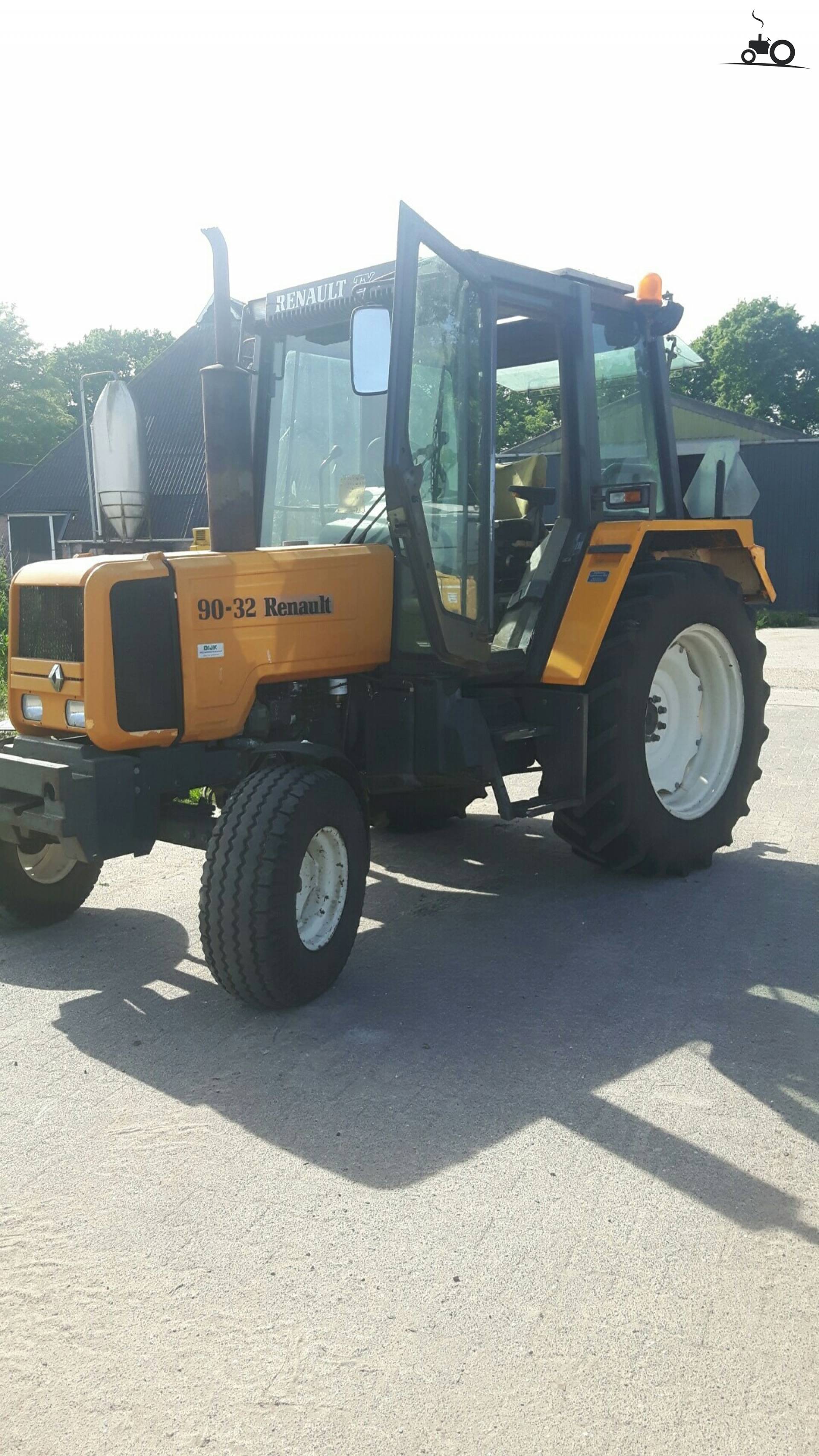

Renault 90-32 TX
Renault 90-32 TX — TX Series · 83 hp. Reference specifications; pending source verification.
The Renault 90-32 TX is a tractor model with an 83 hp rated power, a mid-range figure for its class. It was manufactured from 1989 to 1995. The tractor is equipped with a 4-cylinder diesel liquid-cooled engine and features four-wheel drive with a hydrostatic transmission. Its operating weight is specified at 3460 kg, suitable for operations of up to 200 ac.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
83 hp
Weight
3460 kg
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
83 hp
Recorded weight
3460 kg
Transmissions
12-speed
Production years
1989-1995
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Utility tractorReference
Two-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standardReference
Variants
90-322WDReference
90-344WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank120.0 LReference
Engine61.9 kWReference
MWM D226-4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power61.9 kWReference
Rated RPM2350Reference
Torque282.0 NmReference
Torque RPM1500Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Total flow40.1 lpmReference
Rear lift4480 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase243 cmReference
Weight3460 kgReference
Front tire7.50-18Reference
Rear tire16.9-34Reference
Ag front7.50-18Reference
Ag rear16.9-34Reference
Length392 cmReference
Height277 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
