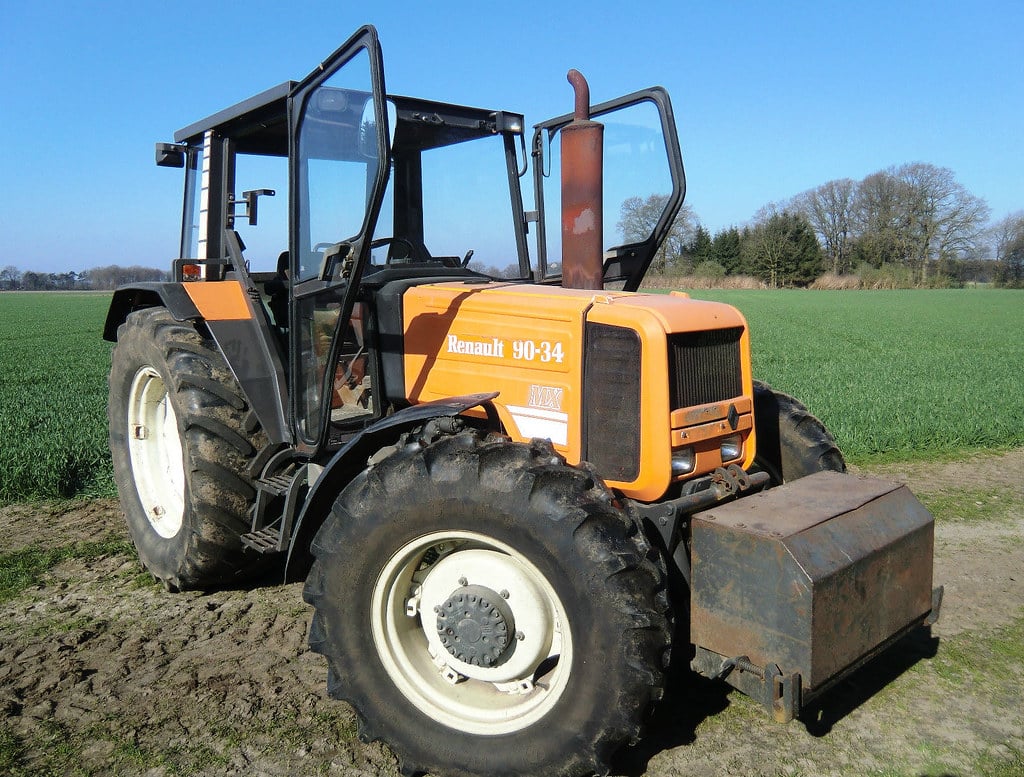

The Renault 90-34 MX is a tractor with an engine rating of approximately 83 hp, a mid-range figure for its class. It was produced from 1989 to 1993. The tractor features a 4-cylinder diesel engine, paired with four-wheel drive and a hydrostatic transmission. The listed operating weight is 3890 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
83 hp
Weight
3890 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
83 hp
Recorded weight
3890 kg
Transmissions
12-speed
Production years
1989-1993
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
standardReference
Variants
90-322WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank115.1 LReference
Engine61.9 kWReference
MWM D226-4Reference
dieselReference
4-cylinderReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power61.9 kWReference
Rated RPM2350Reference
Torque282.0 NmReference
Torque RPM1500Reference
Transmission
12-speedReference
Gears12 forward and reverseReference
PTO & Hydraulics
Total flow40.1 lpmReference
Rear lift4480 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase239 cmReference
Weight3890 kgReference
Front tire13.6-24Reference
Rear tire16.9-34Reference
Ag front13.6-24Reference
Ag rear16.9-34Reference
Length405 cmReference
Height249 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
