Tractor · 1982Unverified

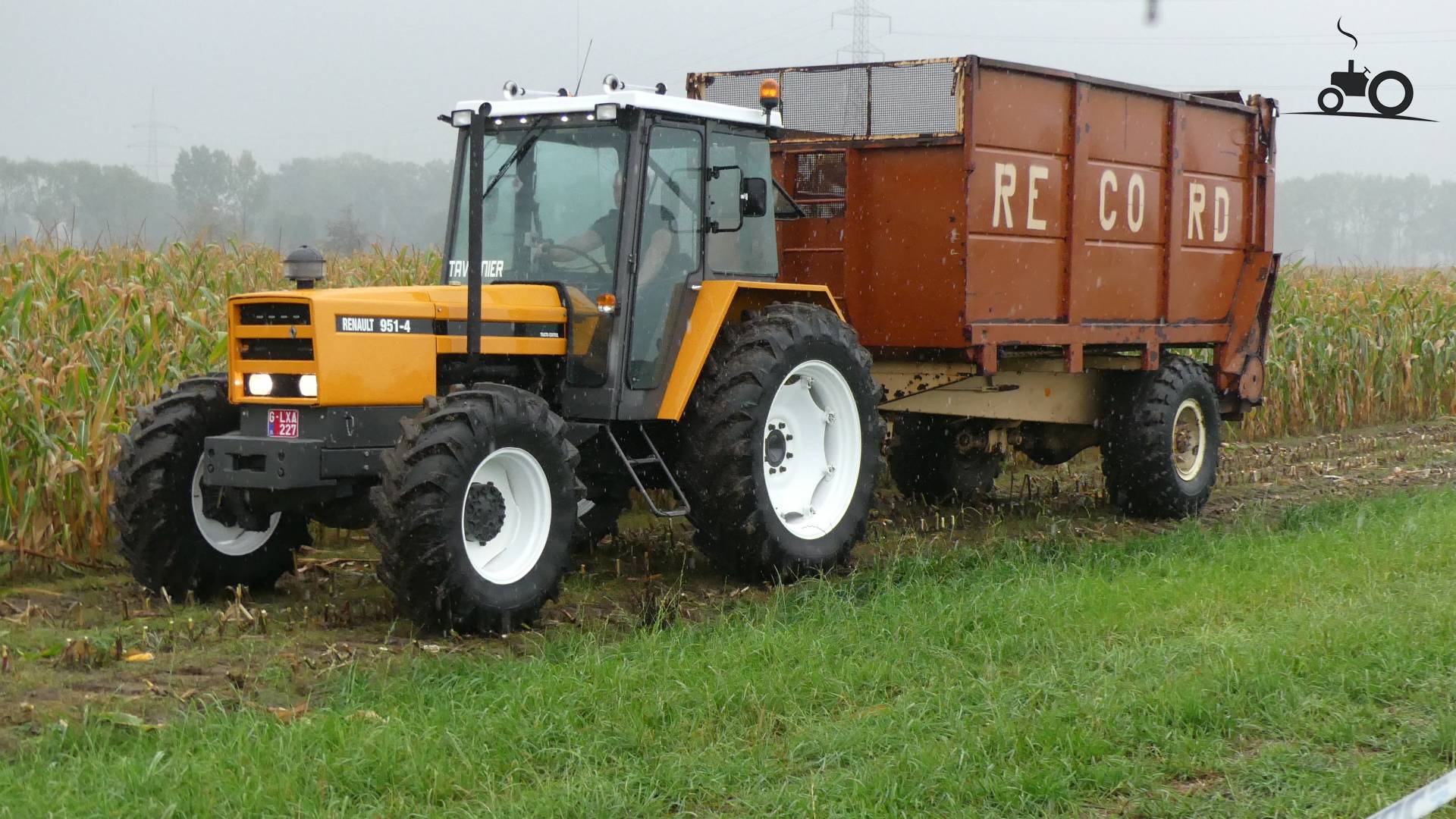

Renault 95-14 TX
Renault 95-14 TX — TX Series · 78 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Weight
4614 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic dry disc brakesReference
Cab standard with heat.Reference
Variants
95-122WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank124.9 LReference
Engine62.0 kWReference
MWM D226-4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power62.0 kWReference
Air cleaneroil bathReference
Rated RPM2350Reference
Torque280.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
12-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears12 forward and reverseReference
Clutch310mm cerametallic discReference
Four gears in three ranges.Reference
TypecreeperReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)58.0 kWReference
Pressure180.0 barReference
Total flow42.8 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4252 kgReference
Rear PTOindependentReference
ClutchorganicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM666@2430Reference
Engine RPM1142@2430Reference
Dimensions
Wheelbase247 cmReference
Weight4614 kgReference
Front tire14.9-24Reference
Rear tire16.9-34Reference
Standard tires (ag)Front: 14.9-24. Rear: 16.9-34Reference
Optional tires (ag)Front: 14.9-28. Rear: 16.9-38Reference
Optional tires (ag)Front: 12.4-28. Rear: 13.6-38Reference
Length430 cmReference
Width202 cmReference
Height277 cmReference
Max weight6650 kgReference
Clearance (front axle)43 cmReference
Clearance (rear axle)49 cmReference
Front tread160 to 199 cmReference
Rear tread130 to 199 cmReference
Electrical
Charging amps50Reference
Battery volts12Reference
Battery AH90Reference
Speeds
With 16.9-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
