Tractor · 1969Unverified

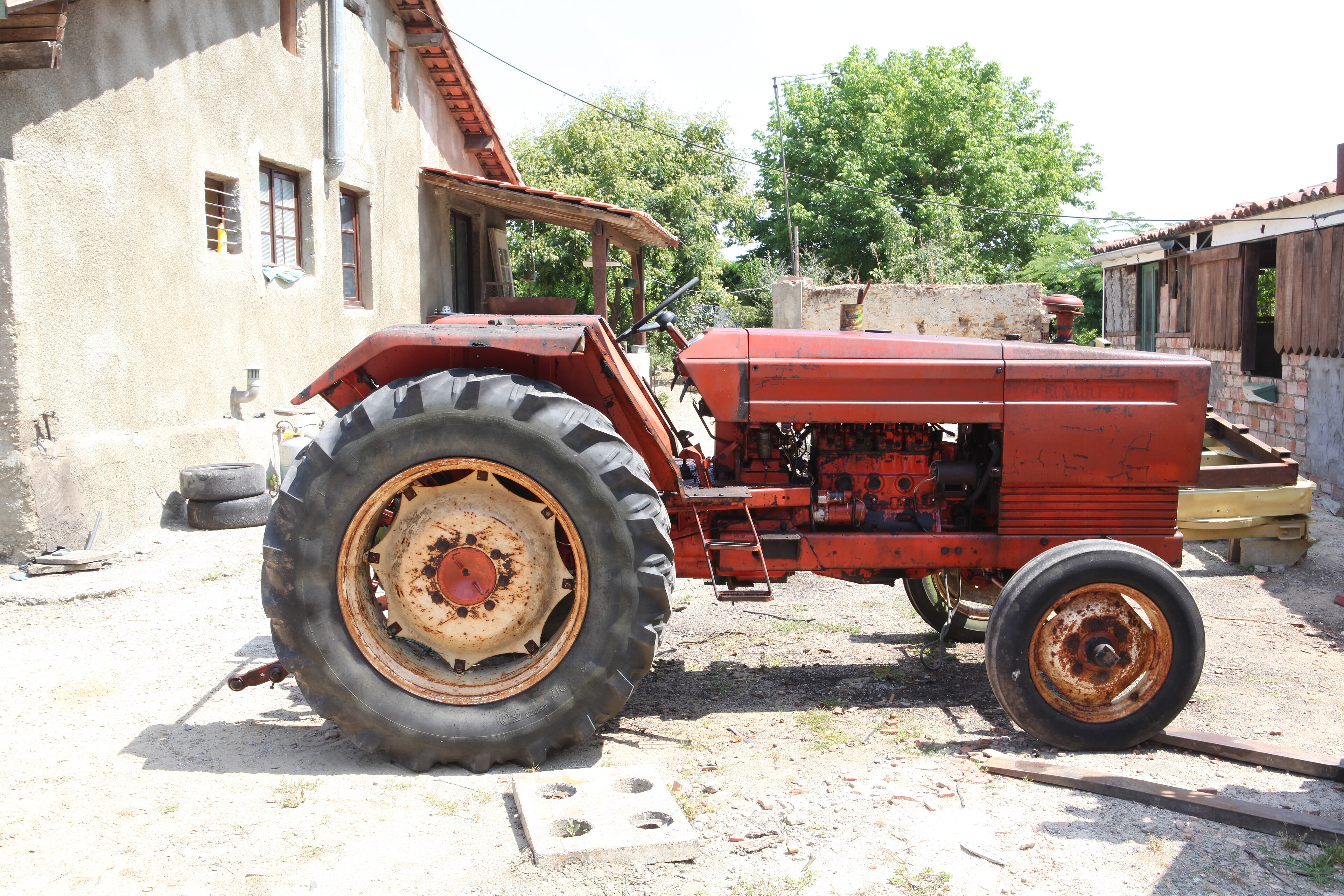

Renault 96
Renault 96 — Row-Crop tractor · 82 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
82 hp
Weight
3430 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Row-Crop tractorReference
Two-wheel driveReference
Power steeringReference
Dry disc brakesReference
Cab standardReference
Variants
962WDReference
4964WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank106.0 LReference
Engine61.1 kWReference
MWM D226-4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power61.1 kWReference
Compression18.3:1Reference
Rated RPM2500Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity10.5 LReference
Coolant capacity14.0 LReference
Transmission
8-speed synchromeshReference
TypesynchromeshReference
Gears8 forward and 2 reverseReference
Four gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Total flow31.4 lpmReference
Rear lift2500 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase237 cmReference
Weight3430 kgReference
Front tire6.50-20Reference
Rear tire15.5-38Reference
Ag front6.50-20Reference
Ag rear15.5-38Reference
Length374 cmReference
Width248 cmReference
Height245 cmReference
Clearance (front axle)43 cmReference
Clearance (rear axle)50 cmReference
Front tread139 to 189 cmReference
Rear tread154 to 204 cmReference
Speeds
With 15.5-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
