Tractor · 1997Unverified

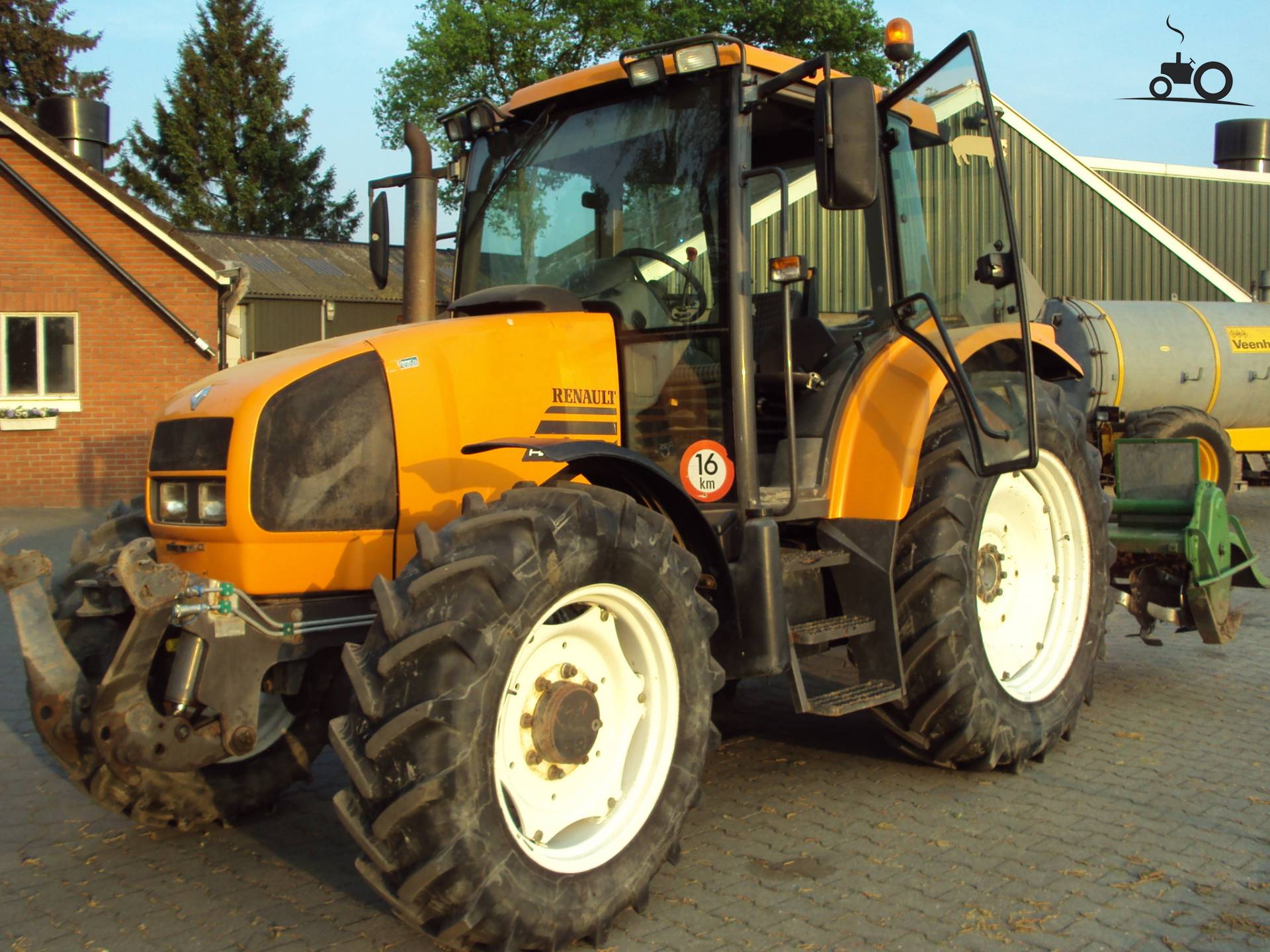

Renault Ares 540
Renault Ares 540 — Ares Series · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Weight
4700 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
standardReference
Engine
John Deere 3.9L 4-cyl dieselReference
Fuel tank180.2 LReference
Engine63.4 kWReference
John Deere 4039 TRTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke107 x 110 mmReference
Power63.4 kWReference
Rated RPM2200Reference
Torque340.1 NmReference
Torque RPM1500Reference
Transmission
16-speedReference
32-speedReference
Gears16 forward and reverseReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow60.2 lpmReference
Rear lift6941 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase248 cmReference
Weight4700 kgReference
Front tire13.6R24Reference
Rear tire16.9R34Reference
Ag front13.6R24Reference
Ag rear16.9R34Reference
Length388 cmReference
Height272 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
