Tractor · 1997Unverified

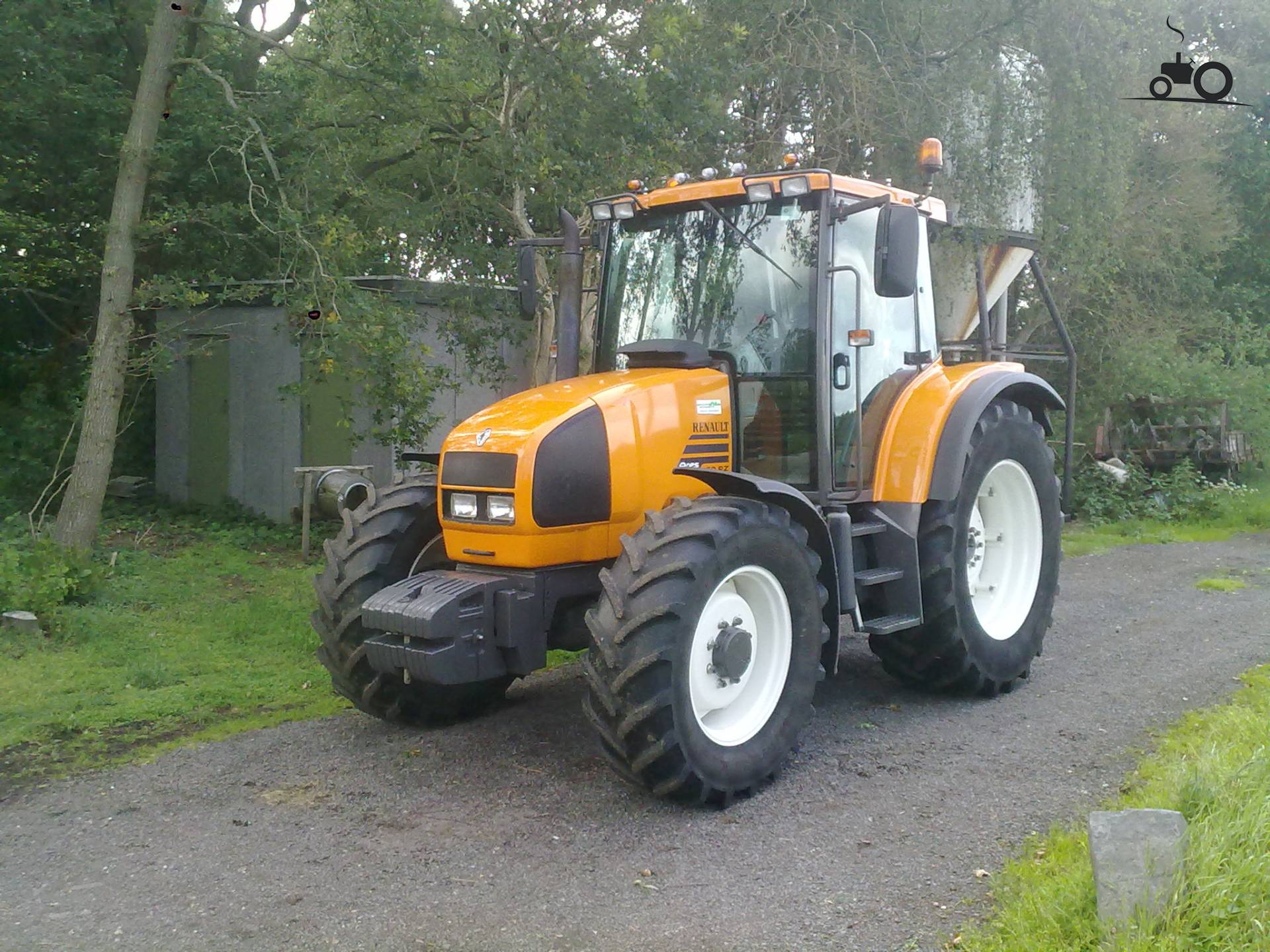

Renault Ares 550
Renault Ares 550 — Ares Series · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
4950 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standardReference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank180.2 LReference
Engine70.8 kWReference
John Deere 4045 TRTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke107 x 127 mmReference
Power70.8 kWReference
Rated RPM2200Reference
Torque388.1 NmReference
Torque RPM1400Reference
Transmission
16-speedReference
32-speedReference
Gears16 forward and reverseReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow60.2 lpmReference
Rear lift8331 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase248 cmReference
Weight4950 kgReference
Front tire13.6R28Reference
Rear tire16.9R38Reference
Ag front13.6R28Reference
Ag rear16.9R38Reference
Length398 cmReference
Height277 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
