Tractor · 2002Unverified

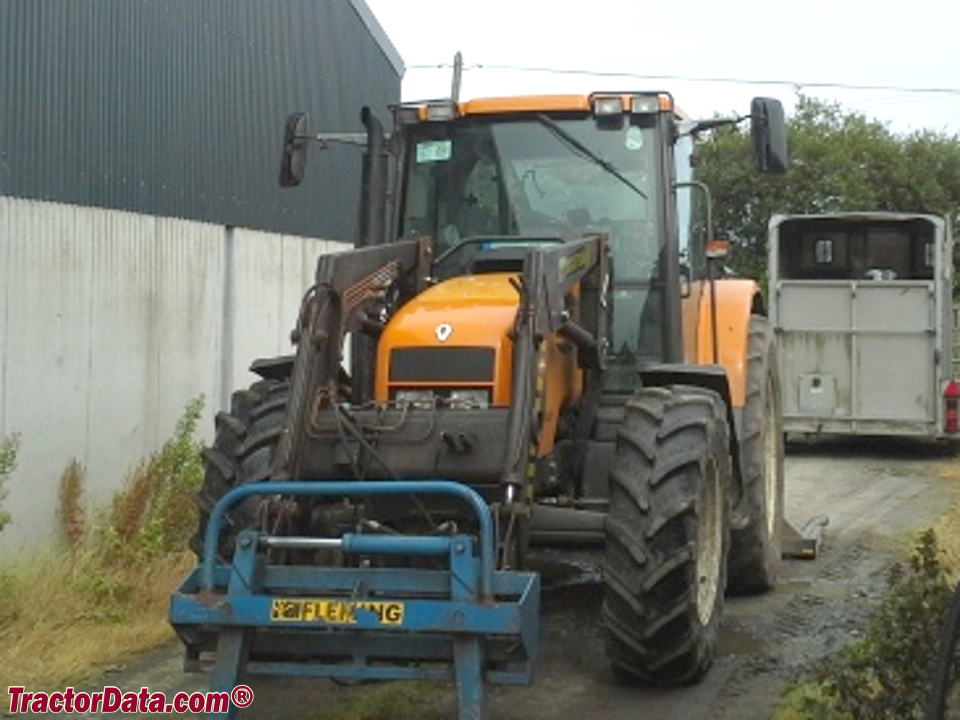

Renault Ares 556
Renault Ares 556 — Ares Series · 103 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
103 hp
Weight
5230 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standardReference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank169.9 LReference
Engine76.8 kWReference
John Deere 4045 TRTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke107 x 127 mmReference
Power76.8 kWReference
Rated RPM2000Reference
Torque419.1 NmReference
Torque RPM1400Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow60.2 lpmReference
Total flow110.1 lpmReference
Rear lift8471 kgReference
Rear PTO Type540/750/ 1000/1250Reference
Dimensions
Wheelbase248 cmReference
Weight5230 kgReference
Front tire13.6R28Reference
Rear tire16.9R38Reference
Ag front13.6R28Reference
Ag rear16.9R38Reference
Length400 cmReference
Height283 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
