Tractor · 2002Unverified

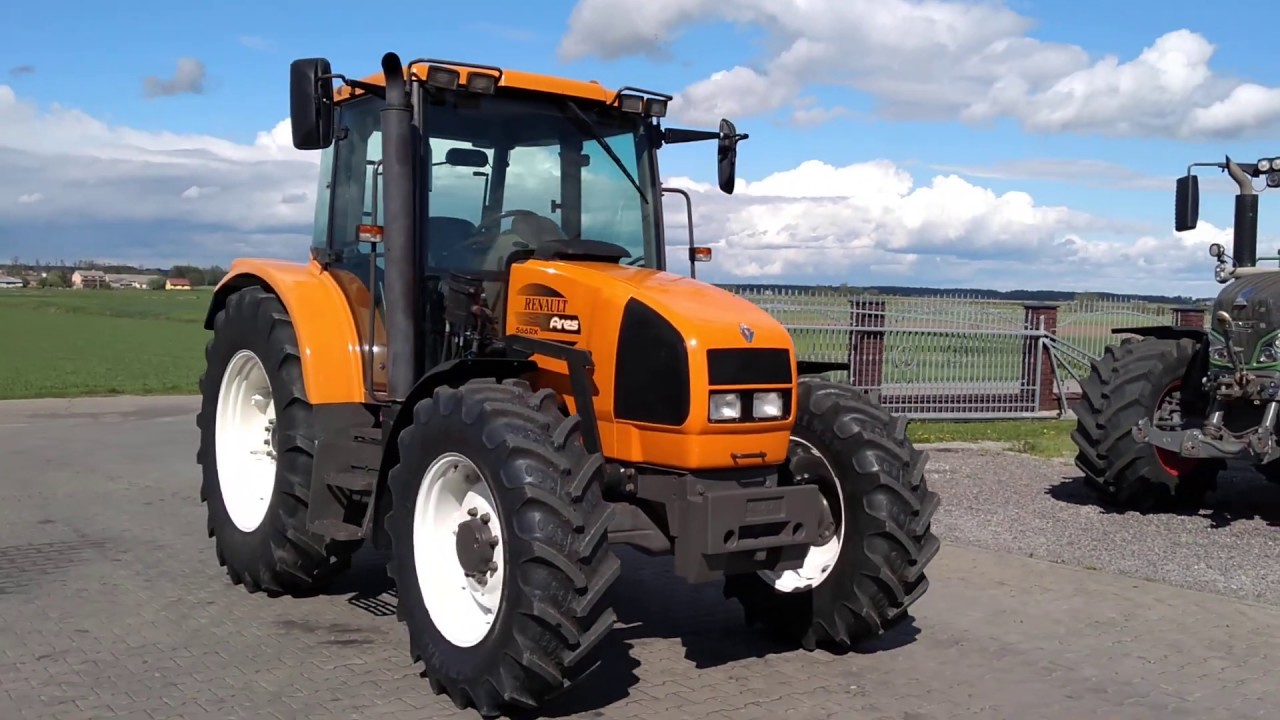

Renault Ares 566
Renault Ares 566 — Ares Series · 111 hp. Reference specifications; pending source verification.
The Renault Ares 566 is a tractor with a rated power output of 111 hp, falling within the mid-range capacity for its class. It was produced between 2002 and 2003. The tractor is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine and features four-wheel drive with a hydrostatic transmission. Its listed operating weight is 5370 kg, suitable for operations on areas ranging from 200 to 800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
111 hp
Weight
5370 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
111 hp
Recorded weight
5370 kg
Transmissions
32-speed
Production years
2002-2003
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standardReference
Engine
John Deere 4.5L 4-cyl dieselReference
Fuel tank169.9 LReference
Engine82.8 kWReference
John Deere 4045 TRTReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke107 x 127 mmReference
Power82.8 kWReference
Rated RPM2000Reference
Torque445.0 NmReference
Torque RPM1400Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow60.2 lpmReference
Total flow110.1 lpmReference
Rear lift8471 kgReference
Rear PTO Type540/750/ 1000/1250Reference
Dimensions
Wheelbase248 cmReference
Weight5370 kgReference
Front tire13.6R28Reference
Rear tire16.9R38Reference
Ag front13.6R28Reference
Ag rear16.9R38Reference
Length400 cmReference
Height283 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
