Tractor · 2002Unverified

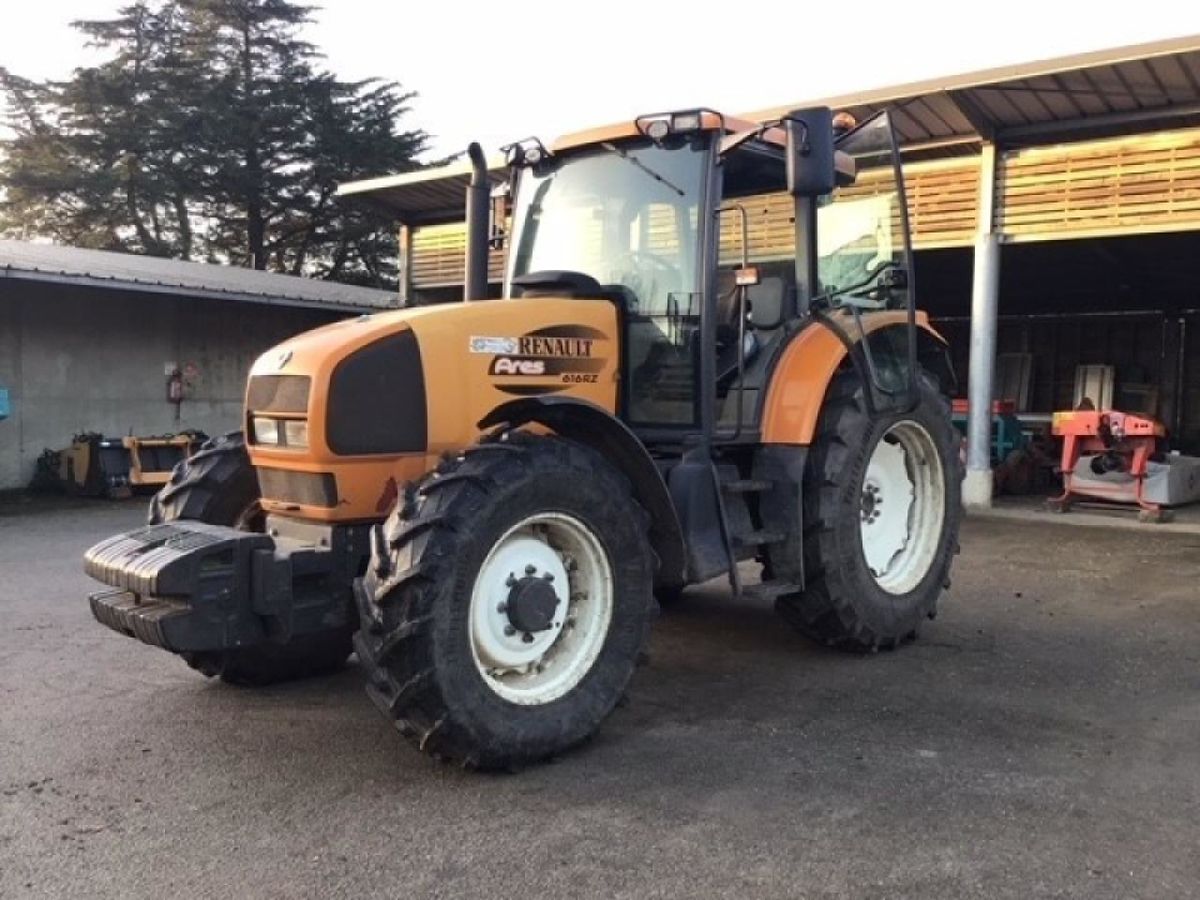

Renault Ares 616
Renault Ares 616 — Ares Series · 114 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
114 hp
Weight
5470 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab with air conditioningReference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank185.1 LReference
Fuel tank210.1 LReference
Engine85.0 kWReference
John Deere 6068 DRTReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke107 x 127 mmReference
Power85.0 kWReference
Rated RPM2000Reference
Torque461.0 NmReference
Torque RPM1300Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow60.2 lpmReference
Total flow110.1 lpmReference
Rear lift8471 kgReference
Rear PTO Type540/750/ 1000/1250Reference
Dimensions
Wheelbase275 cmReference
Weight5470 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Length425 cmReference
Height289 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
