Tractor · 1996Unverified

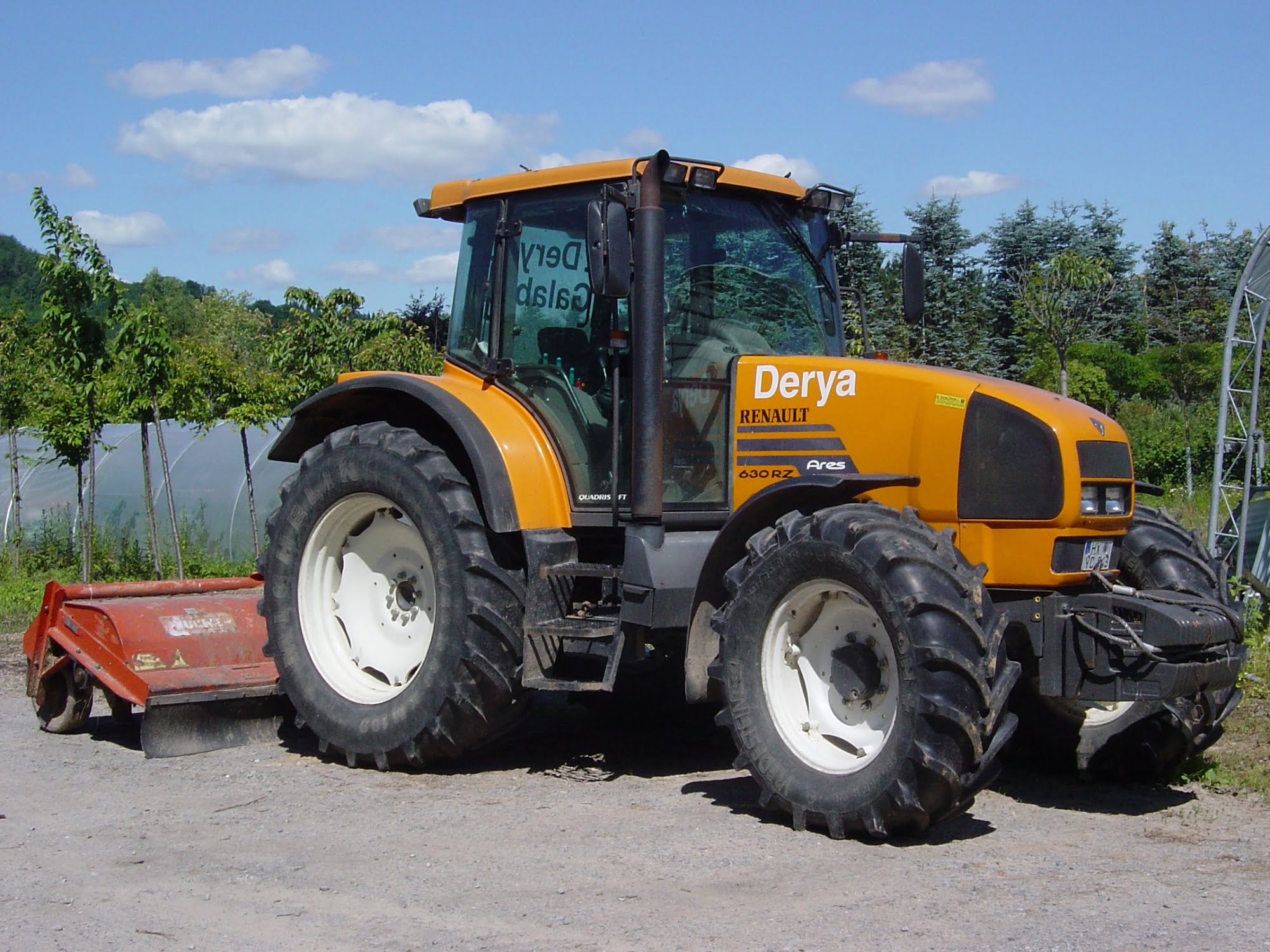

Renault Ares 630
Renault Ares 630 — Ares Series · 120 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
120 hp
Weight
6051 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab with air conditioningReference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank219.9 LReference
Engine89.5 kWReference
John Deere 6068 TRTReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke107 x 127 mmReference
Power89.5 kWReference
Rated RPM2200Reference
Torque495.1 NmReference
Torque RPM1500Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow60.2 lpmReference
Rear lift8471 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase275 cmReference
Weight6051 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Length430 cmReference
Height291 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
