Tractor · 2002Unverified

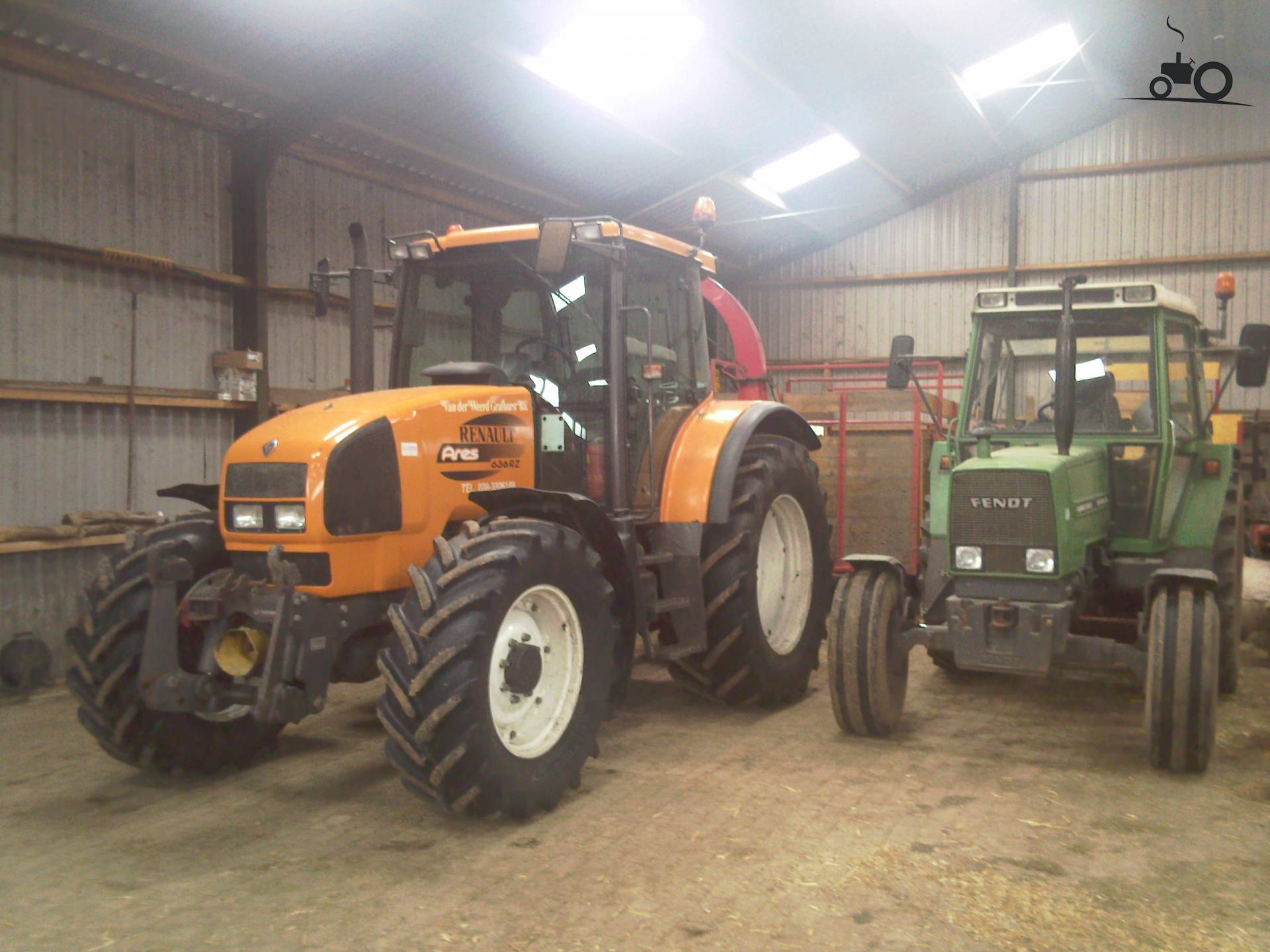

Renault Ares 636
Renault Ares 636 — Ares Series · 136 hp. Reference specifications; pending source verification.
The Renault Ares 636 is a tractor model with an engine output of approximately 136 hp, placing it at the higher end of its class in terms of power. This model was in production from 2002 to 2003. The tractor is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine and features a four-wheel drive system with hydrostatic transmission. It has an operating weight of 6300 kg and is suitable for operations covering areas of 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
136 hp
Weight
6300 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
136 hp
Recorded weight
6300 kg
Transmissions
32-speed
Production years
2002-2003
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab with air conditioningReference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank210.1 LReference
Engine101.4 kWReference
John Deere 6068 TRTReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke107 x 127 mmReference
Power101.4 kWReference
Rated RPM2000Reference
Torque544.2 NmReference
Torque RPM1300Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow60.2 lpmReference
Total flow110.1 lpmReference
Rear lift8471 kgReference
Rear PTO Type540/750/ 1000/1250Reference
Dimensions
Wheelbase275 cmReference
Weight6300 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Length472 cmReference
Height291 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
