Tractor · 2002Unverified

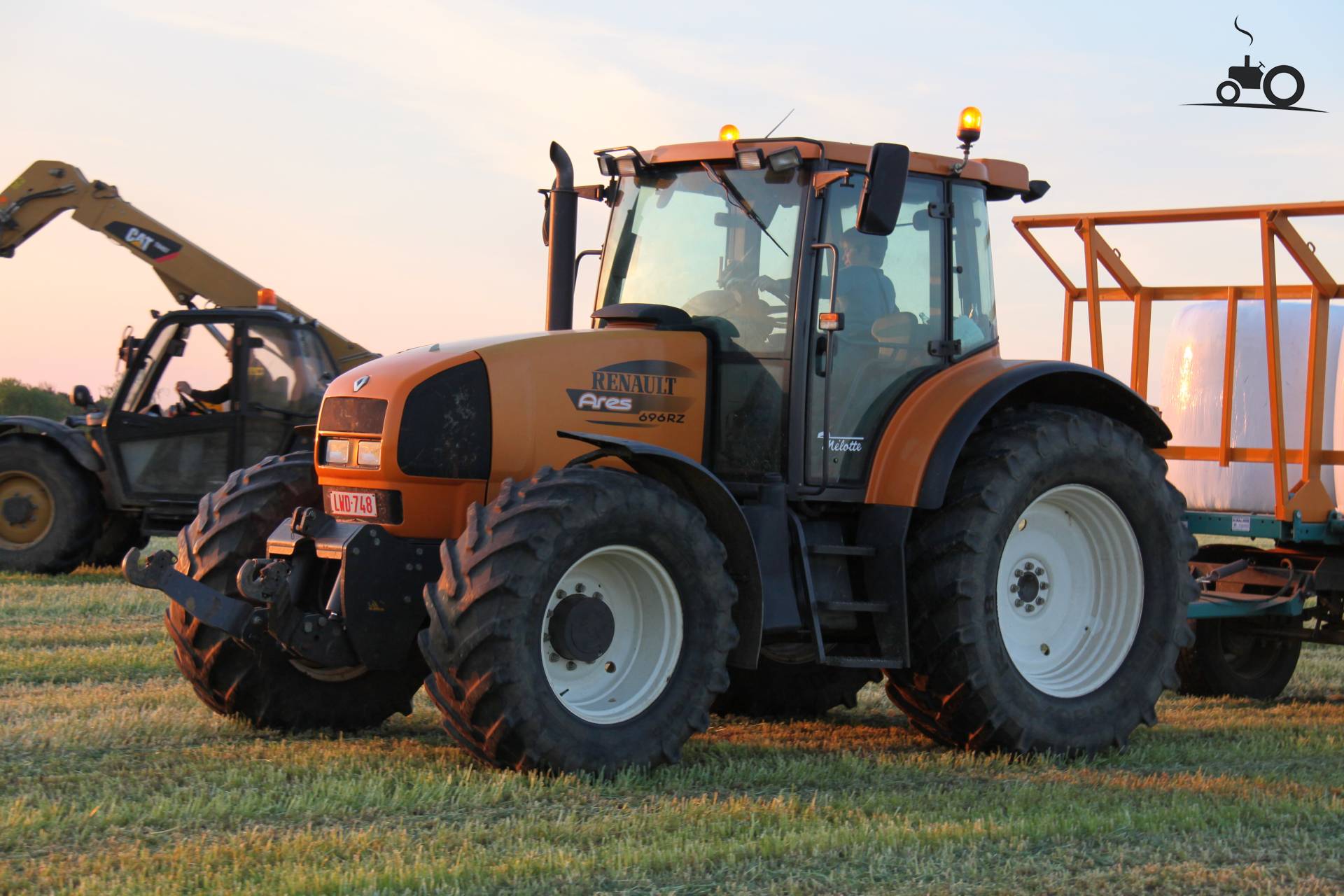

Renault Ares 696
Renault Ares 696 — Ares Series · 147 hp. Reference specifications; pending source verification.
The Renault Ares 696 is a tractor model with a rating of approximately 147 hp, placing it at the powerful end of its class. The Ares 696 was produced between 2002 and 2003. It features a 6-cylinder turbocharged diesel engine with liquid cooling, paired with four-wheel drive and a hydrostatic transmission. The operating weight of the Ares 696 is 6691 kg, and it is suitable for operations covering an area of 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
147 hp
Weight
6691 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
147 hp
Recorded weight
6691 kg
Transmissions
32-speed
Production years
2002-2003
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab with air conditioningReference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank210.1 LReference
Engine109.6 kWReference
John Deere 6068 TRTReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke107 x 127 mmReference
Power109.6 kWReference
Rated RPM2000Reference
Torque592.2 NmReference
Torque RPM1400Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow90.1 lpmReference
Total flow110.1 lpmReference
Rear lift8471 kgReference
Rear PTO Type540/750/ 1000/1250Reference
Dimensions
Wheelbase275 cmReference
Weight6691 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Ag front16.9R28Reference
Ag rear20.8R38Reference
Length472 cmReference
Height291 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
