Tractor · 1996Unverified

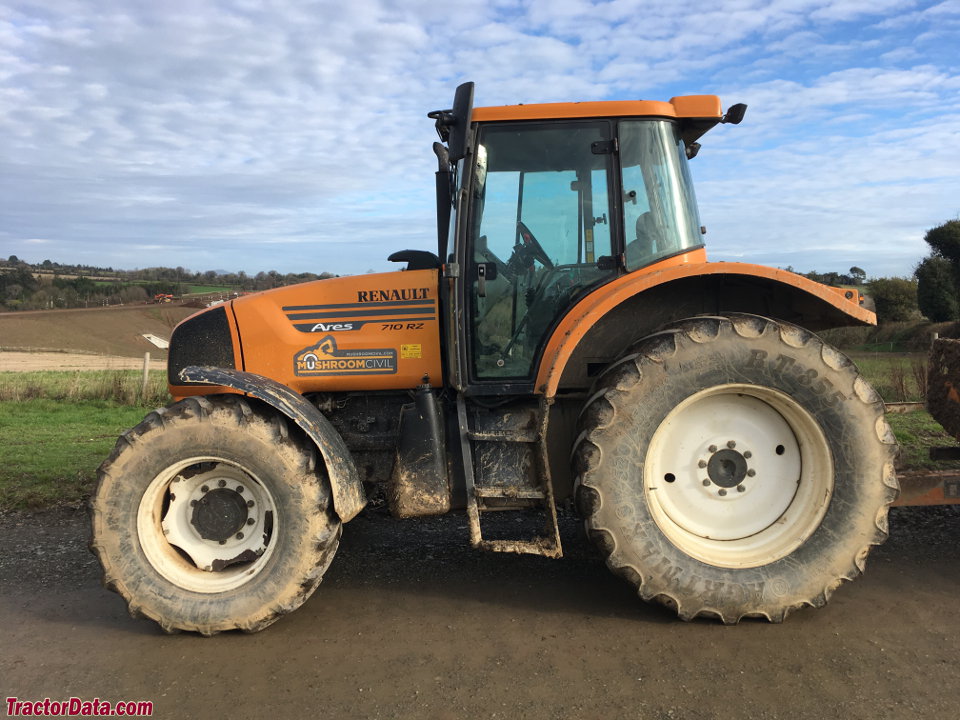

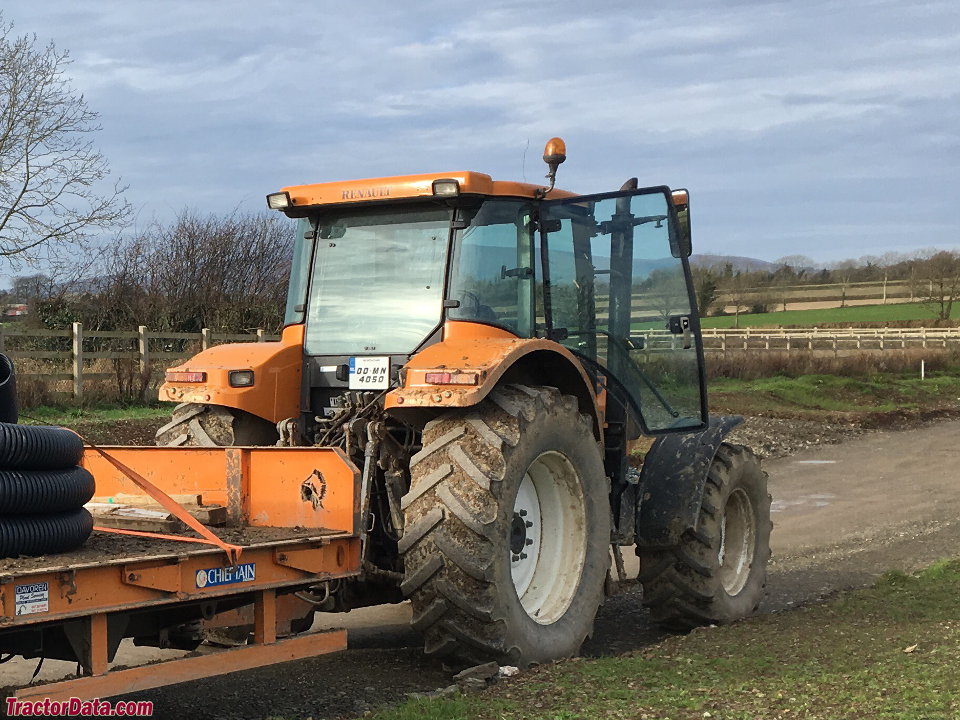

Renault Ares 710
Renault Ares 710 — Ares Series · 145 hp. Reference specifications; pending source verification.
The Renault Ares 710 is a tractor model with a rating of 145 hp, categorising it among higher-powered machines in its class. Manufactured from 1996 to 2000, this model is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine driving through a four-wheel drive system coupled with a hydrostatic transmission. The listed weight of the Renault Ares 710 is 7141 kg, with an indicated application range of approximately 200–800 ac.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
145 hp
Weight
7141 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
145 hp
Recorded weight
7141 kg
Transmissions
32-speed
Production years
1996-2000
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab with air conditioningReference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank300.2 LReference
Engine108.1 kWReference
John Deere 6068 TRReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke107 x 127 mmReference
Power108.1 kWReference
Rated RPM2200Reference
Torque606.1 NmReference
Torque RPM1300Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow60.2 lpmReference
Rear lift8581 kgReference
Rear lift10742 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase288 cmReference
Weight7141 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Ag front16.9R28Reference
Ag rear20.8R38Reference
Length518 cmReference
Height302 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
