Tractor · 1996Unverified

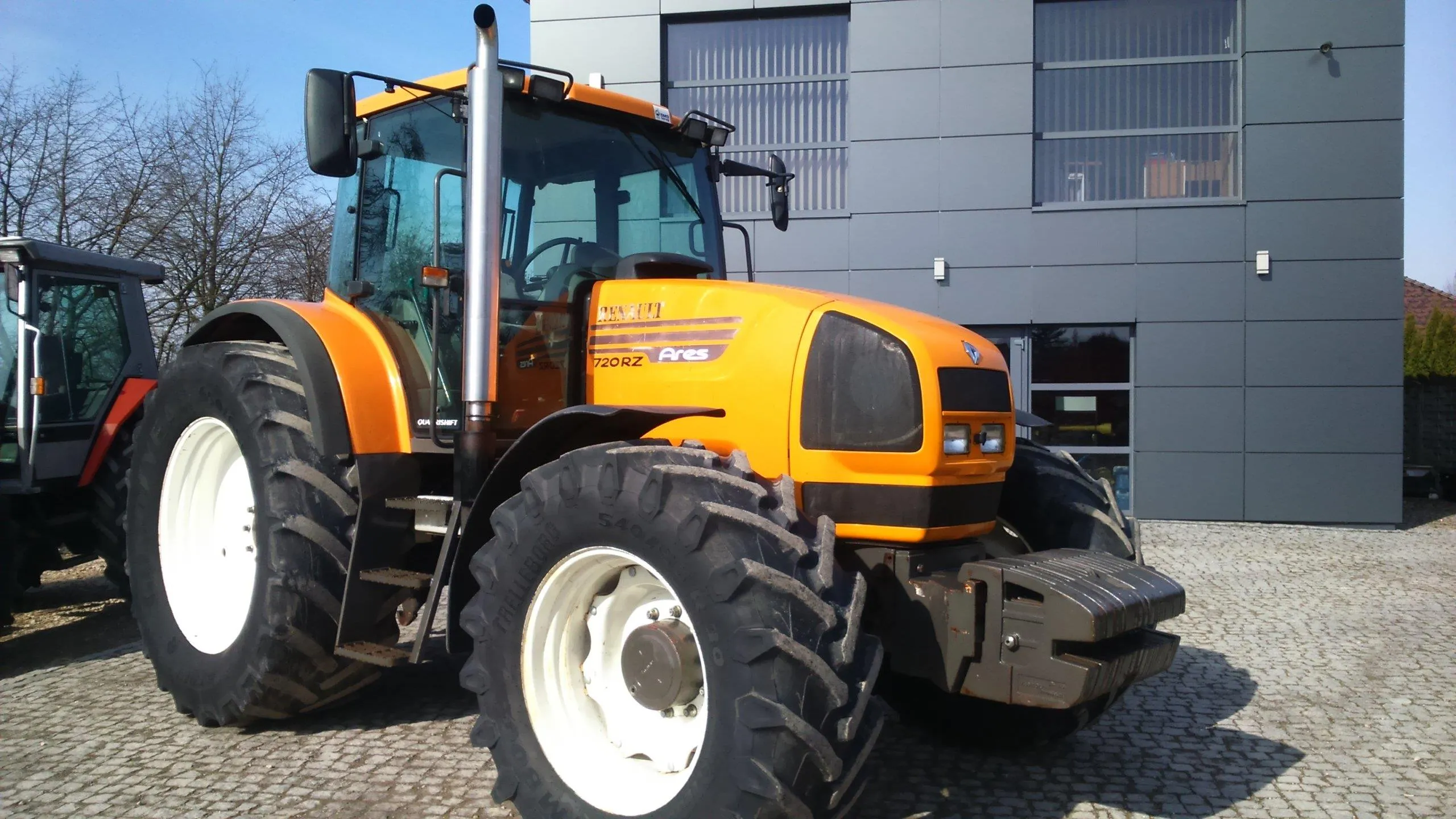

Renault Ares 720
Renault Ares 720 — Ares Series · 165 hp. Reference specifications; pending source verification.
The Renault Ares 720 is a high-powered tractor with a rated output of 165 hp. It was manufactured between 1996 and 1999. The machine is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, which drives four-wheel drive through a hydrostatic transmission. Its listed weight is 7141 kg, with a capacity for jobs covering approximately 600–1,500 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
165 hp
Weight
7141 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
165 hp
Recorded weight
7141 kg
Transmissions
32-speed
Production years
1996-1999
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab with air conditioningReference
Engine
John Deere 6.8L 6-cyl dieselReference
Fuel tank300.2 LReference
Engine123.0 kWReference
John Deere 6068 TRTReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke107 x 127 mmReference
Power123.0 kWReference
Rated RPM2200Reference
Torque655.1 NmReference
Torque RPM1300Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow60.2 lpmReference
Rear lift8581 kgReference
Rear lift10742 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase288 cmReference
Weight7141 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Ag front16.9R28Reference
Ag rear20.8R38Reference
Length518 cmReference
Height308 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
