Tractor · 1998Unverified

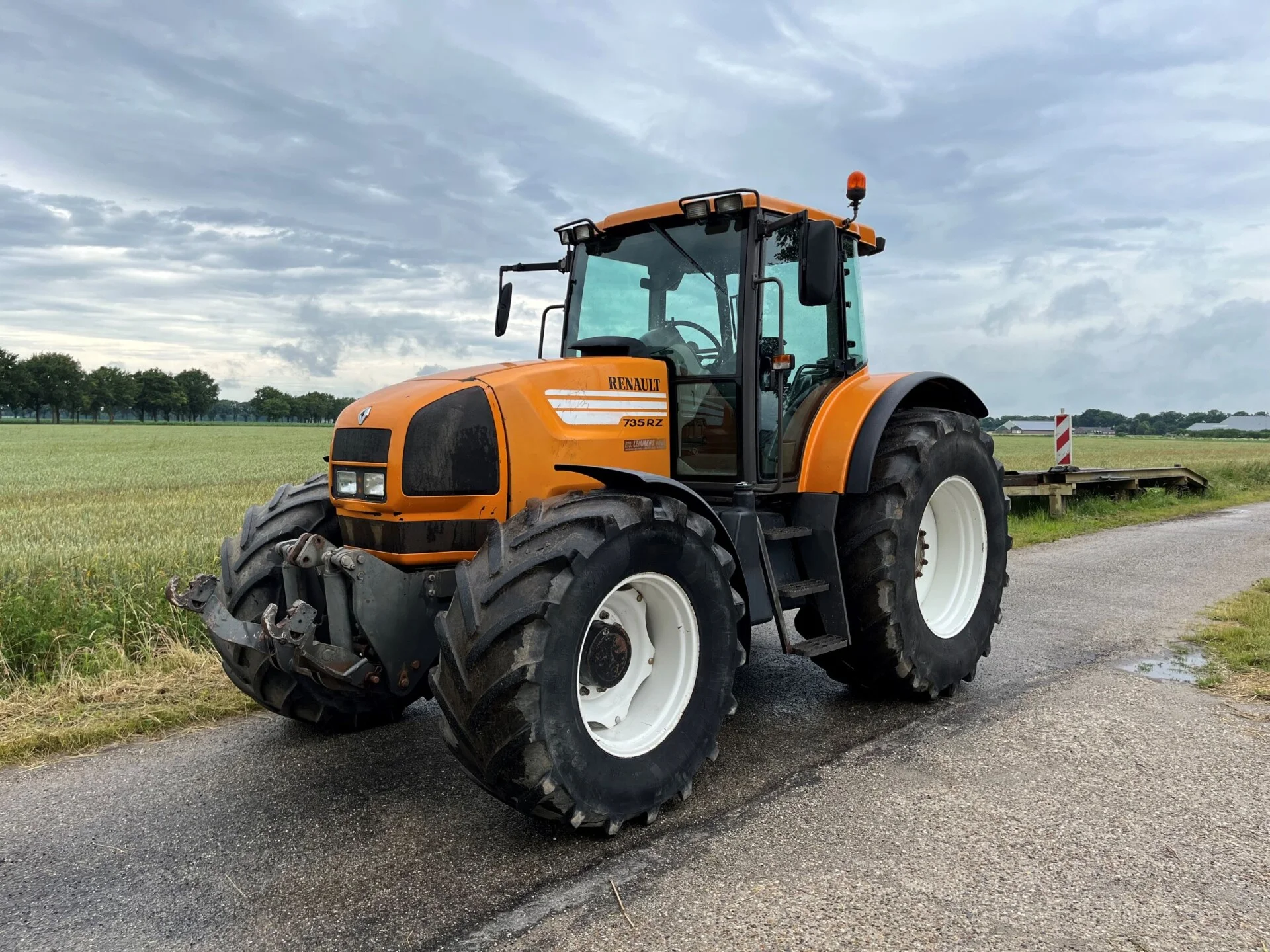

Renault Ares 735
Renault Ares 735 — Ares Series · 194 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
194 hp
Weight
8421 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab with air conditioningReference
Engine
John Deere 6.8L 6-cylReference
Fuel tank300.2 LReference
Engine144.7 kWReference
John Deere 6068 HRT52Reference
intercooled turbochargedReference
6-cylinderReference
Displacement6.8 LReference
Bore/Stroke107 x 127 mmReference
Power144.7 kWReference
Rated RPM2200Reference
Torque815.1 NmReference
Torque RPM1500Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow110.1 lpmReference
Rear lift11332 kgReference
Rear PTO Type750/1000Reference
Dimensions
Wheelbase288 cmReference
Weight8421 kgReference
Front tire16.9R30Reference
Rear tire20.8R42Reference
Ag front16.9R30Reference
Ag rear20.8R42Reference
Length497 cmReference
Height308 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
