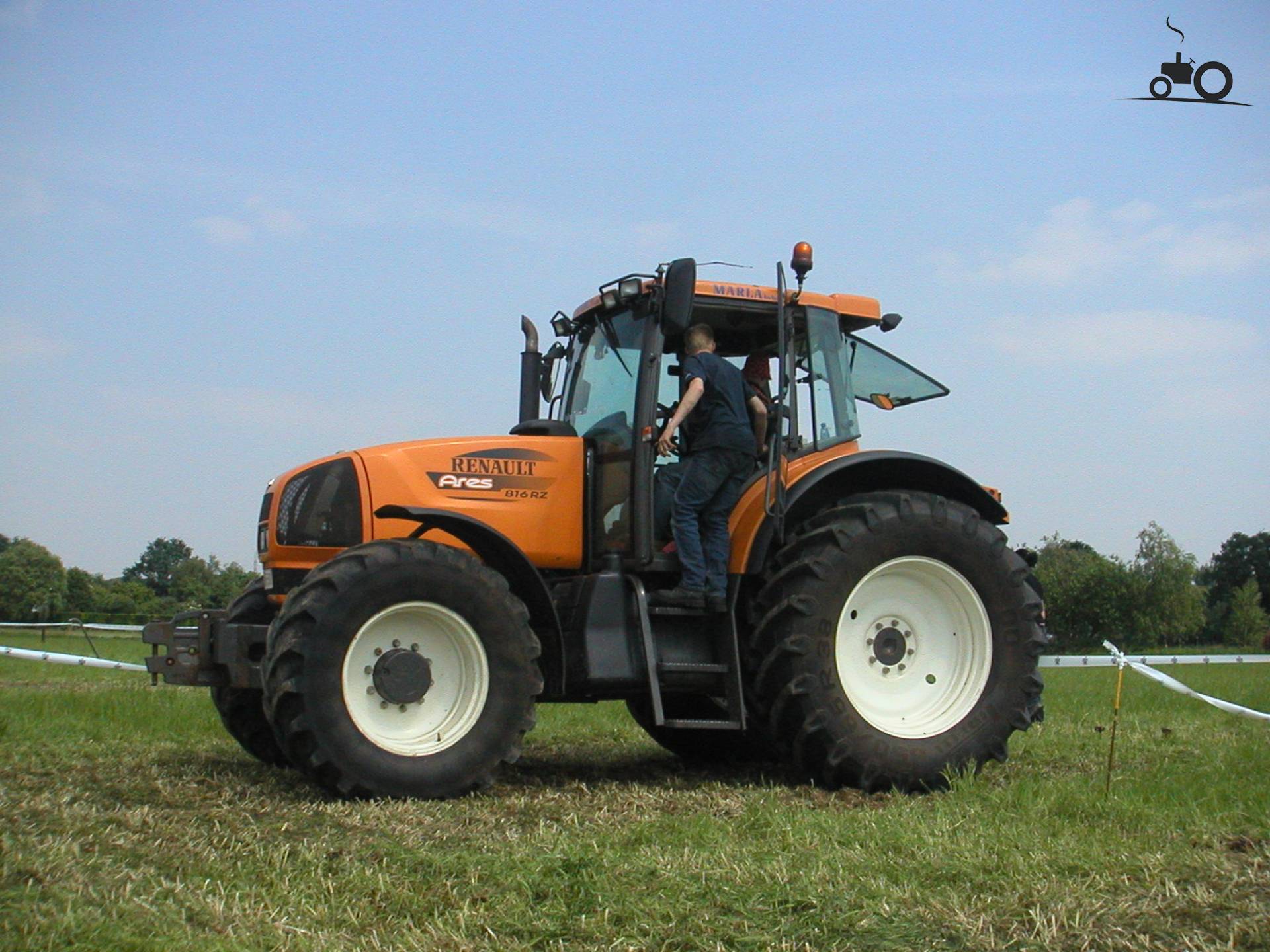

Renault Ares 816
Renault Ares 816 — Ares Series · 156 hp. Reference specifications; pending source verification.
The Renault Ares 816 is a tractor with a power rating of approximately 156 hp, placing it at the higher end of its class in terms of power output. This model was manufactured between 2002 and 2003. The tractor is equipped with a 6-cylinder turbocharged liquid-cooled engine, coupled with a four-wheel drive system and hydrostatic transmission. Its operating weight is listed as 7601 kg, making it suitable for operations covering 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
156 hp
Weight
7601 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
156 hp
Recorded weight
7601 kg
Transmissions
32-speed
Production years
2002-2003
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab with air conditioningReference
Engine
John Deere 6.8L 6-cylReference
Fuel tank300.2 LReference
Engine116.3 kWReference
John Deere 6068 TRTReference
turbochargedReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke107 x 127 mmReference
Power116.3 kWReference
Rated RPM2200Reference
Torque655.1 NmReference
Torque RPM1500Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow110.1 lpmReference
Rear lift11332 kgReference
Rear PTO Type750/1000Reference
Dimensions
Wheelbase288 cmReference
Weight7601 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Ag front16.9R28Reference
Ag rear20.8R38Reference
Length453 cmReference
Height303 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
