Tractor · 1998Unverified

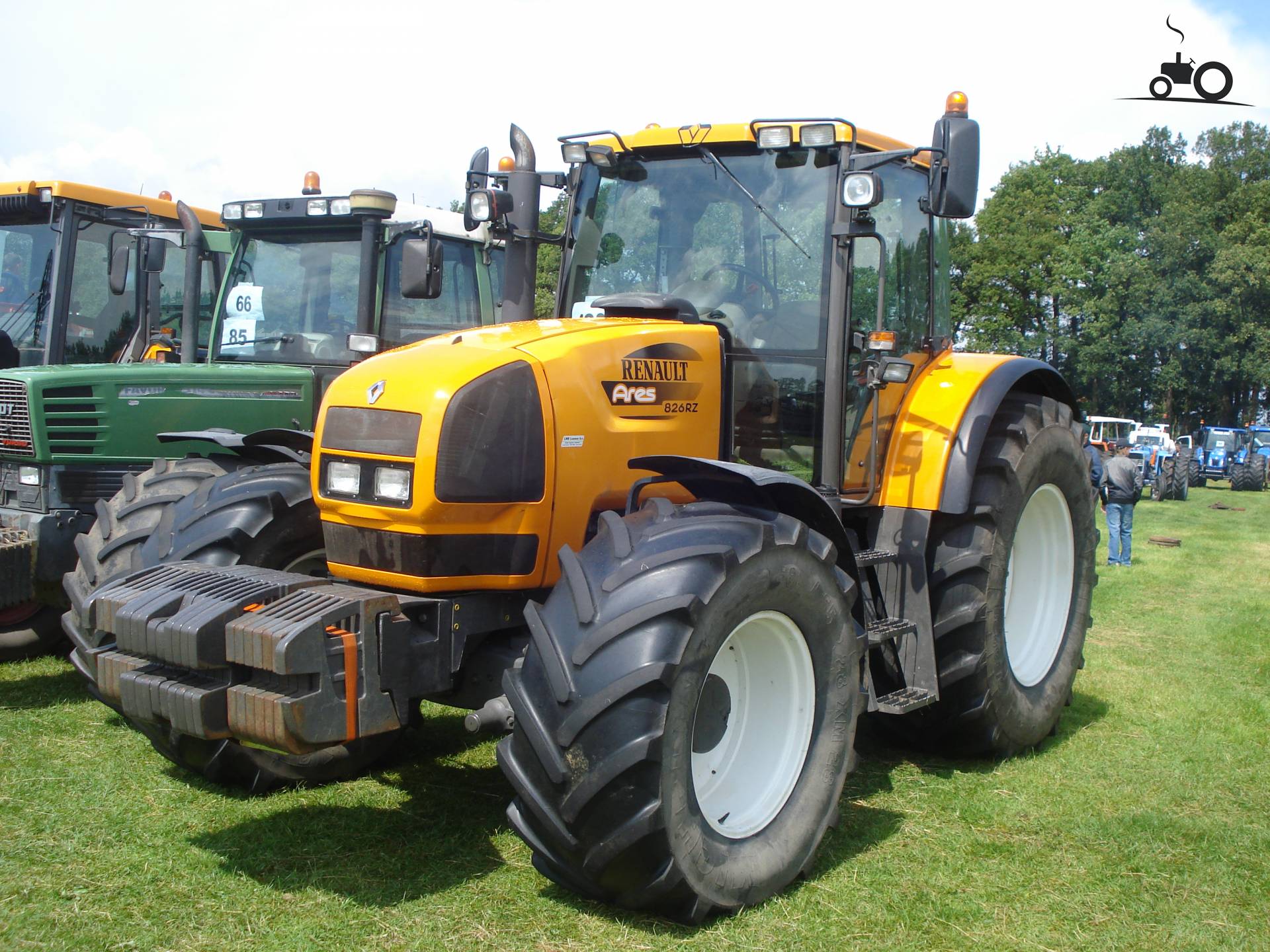

Renault Ares 825
Renault Ares 825 — Ares Series · 175 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
175 hp
Weight
8221 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab with air conditioningReference
Engine
John Deere 6.8L 6-cylReference
Fuel tank300.2 LReference
Engine130.5 kWReference
John Deere 6068 HRT51Reference
intercooled turbochargedReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke107 x 127 mmReference
Power130.5 kWReference
Rated RPM2200Reference
Torque755.2 NmReference
Torque RPM1500Reference
Transmission
18-speed power shiftReference
Typepower shiftReference
Gears18 forward and 8 reverseReference
PTO & Hydraulics
Total flow110.1 lpmReference
Rear lift11332 kgReference
Rear PTO Type750/1000Reference
Dimensions
Wheelbase288 cmReference
Weight8221 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Ag front16.9R28Reference
Ag rear20.8R38Reference
Length497 cmReference
Height303 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
