Tractor · 2002Unverified

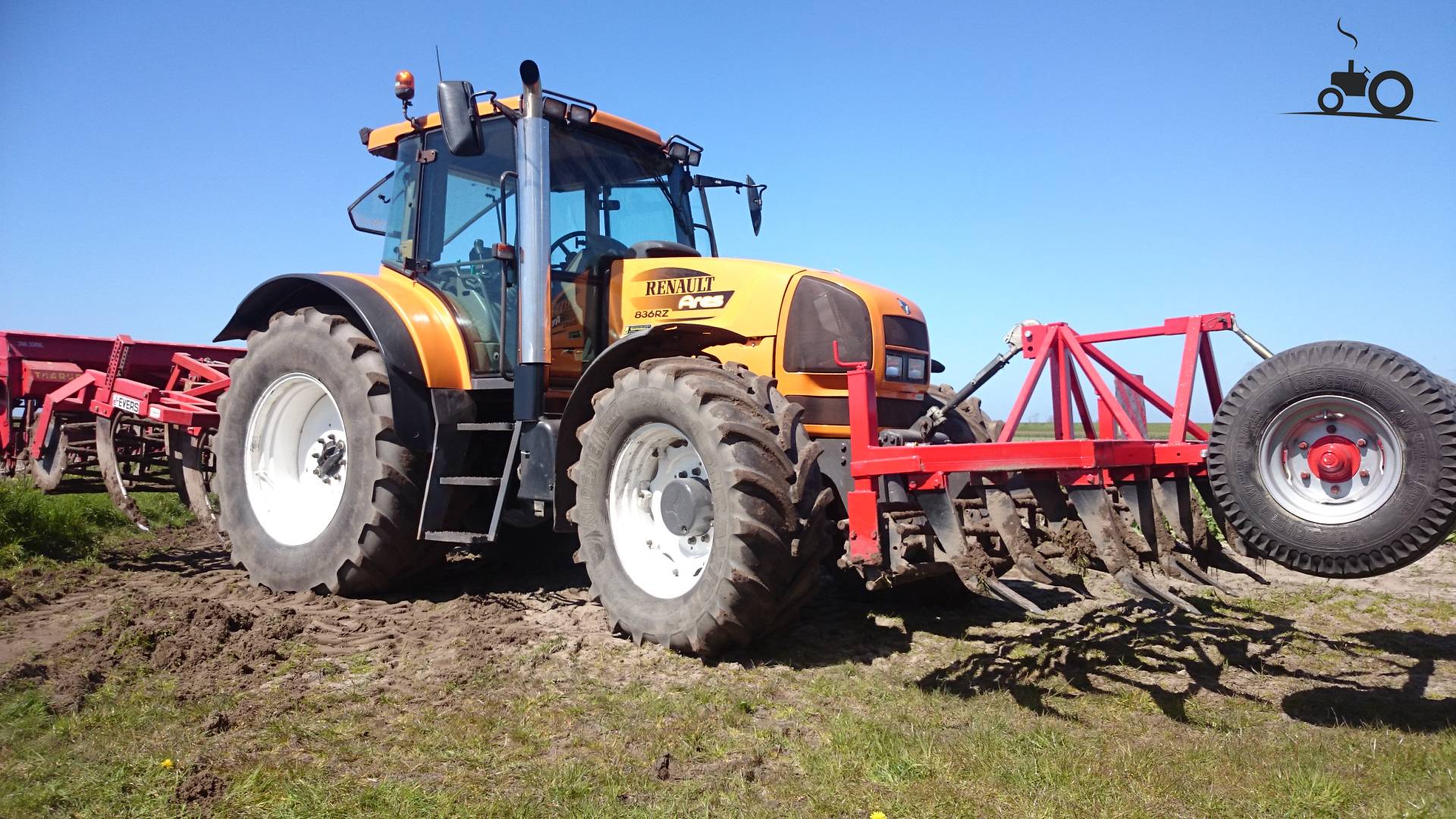

Renault Ares 836
Renault Ares 836 — Ares Series · 205 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
205 hp
Weight
8321 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab with air conditioningReference
Engine
John Deere 6.8L 6-cylReference
Fuel tank300.2 LReference
Engine152.9 kWReference
John Deere 6068 HRTReference
intercooled turboReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke107 x 127 mmReference
Power152.9 kWReference
Rated RPM1900Reference
Torque850.2 NmReference
Torque RPM1500Reference
Transmission
32-speedReference
Gears32 forward and reverseReference
PTO & Hydraulics
Total flow110.1 lpmReference
Rear lift11332 kgReference
Rear PTO Type750/1000Reference
Dimensions
Wheelbase288 cmReference
Weight8321 kgReference
Front tire16.9R30Reference
Rear tire20.8R42Reference
Ag front16.9R30Reference
Ag rear20.8R42Reference
Length462 cmReference
Height309 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
