Tractor · 2000Unverified

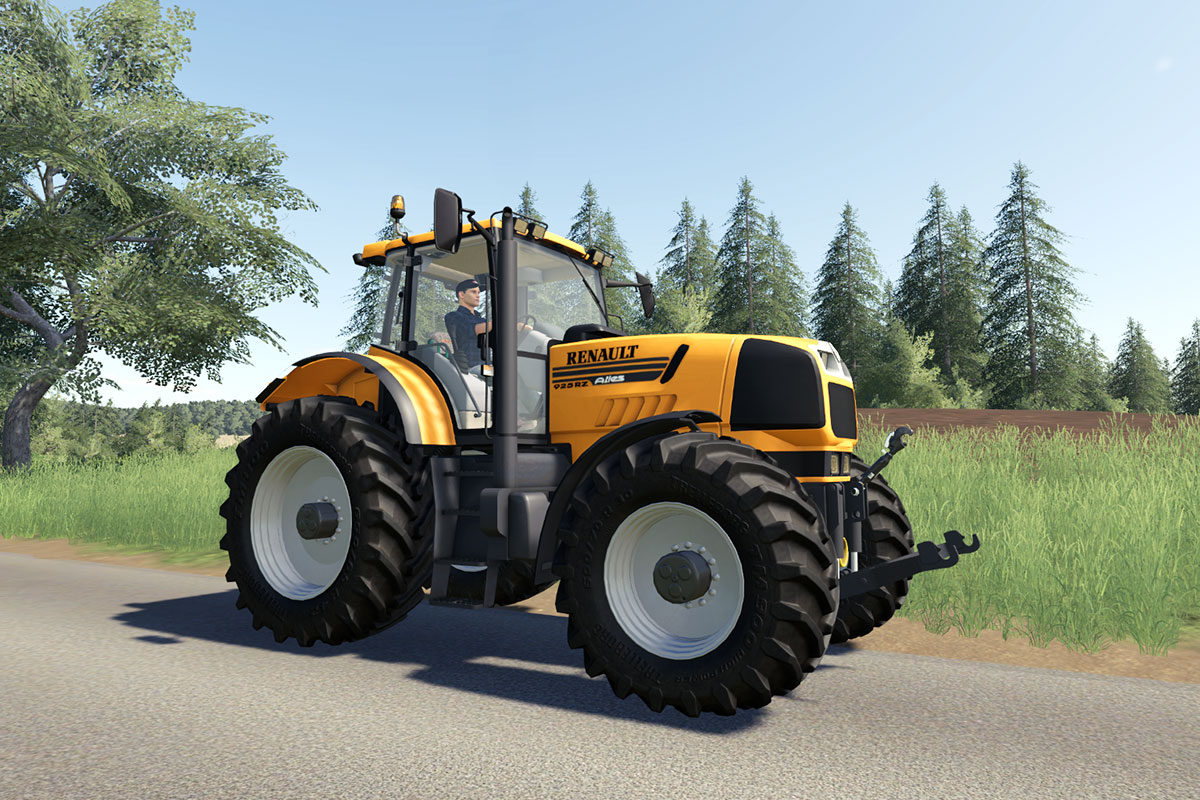

Renault Atles 925
Renault Atles 925 — Atles Series · 240 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
240 hp
Weight
9661 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
cab with air conditioningReference
Engine
Deutz 7.2L 6-cylReference
Fuel tank455.0 LReference
Engine179.0 kWReference
Deutz BF6L1013FCReference
intercooled turbochargedReference
6-cylinderReference
Displacement7.2 LReference
Bore/Stroke108 x 130 mmReference
Power179.0 kWReference
Rated RPM1800Reference
Torque990.2 NmReference
Torque RPM1500Reference
Transmission
18-speedReference
Gears18 forward and 8 reverseReference
PTO & Hydraulics
Total flow110.1 lpmReference
Rear lift12002 kgReference
Rear PTO Type750/1000Reference
Dimensions
Wheelbase304 cmReference
Weight9661 kgReference
Front tire16.9R30Reference
Rear tire20.8R42Reference
Ag front16.9R30Reference
Ag rear20.8R42Reference
Length573 cmReference
Height321 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
