Tractor · 2002Unverified

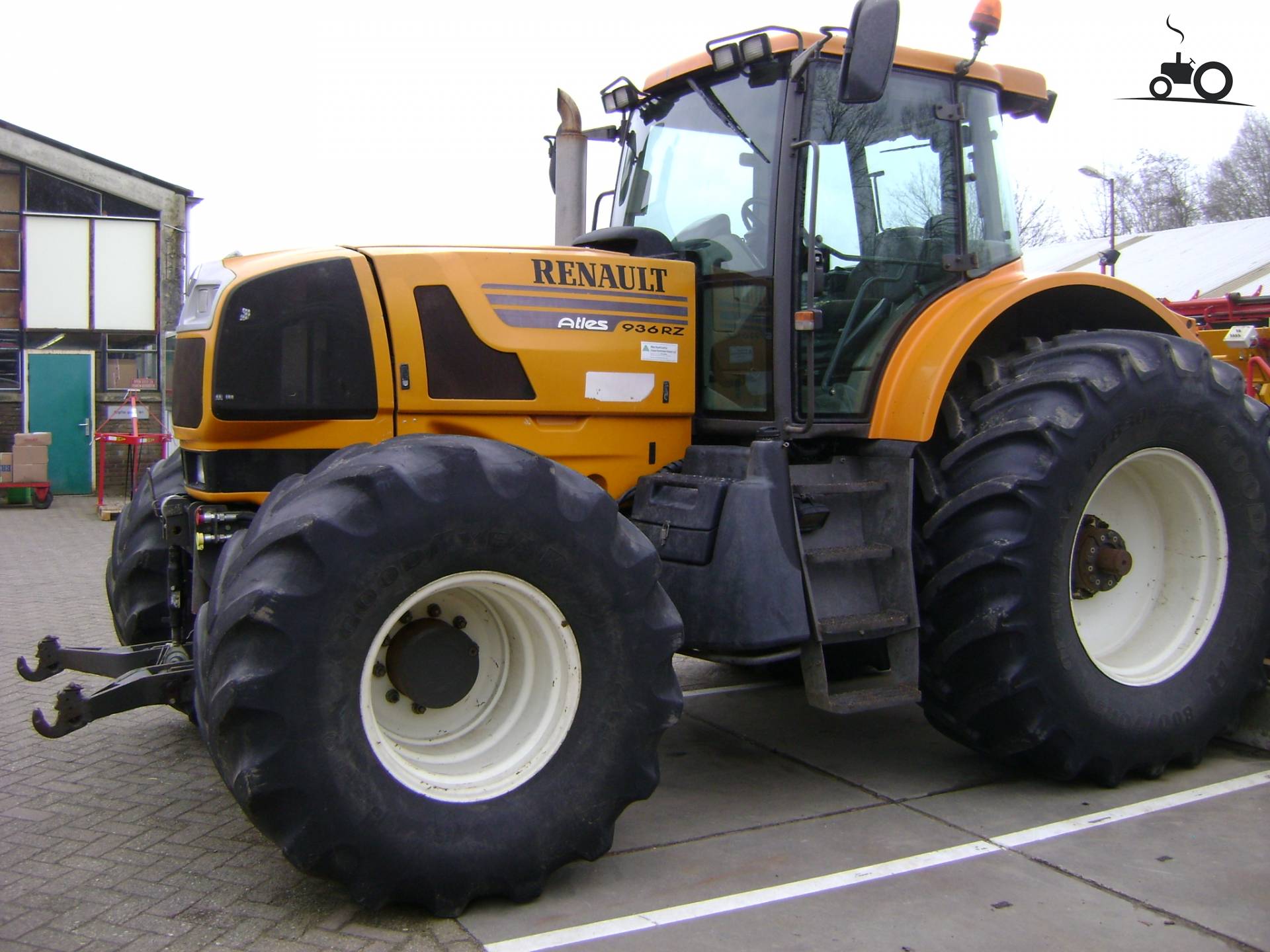

Renault Atles 936

Name: Renault Atles 936
Brand: Renault

Renault Atles 936 — Atles Series · 260 hp. Reference specifications; pending source verification.

The Renault Atles 936 is a tractor with a rating of approximately 260 hp, positioning it at the more powerful end of its class. It was produced from 2002 to 2003. The tractor features a 6-cylinder turbocharged intercooled engine, combined with four-wheel drive and a hydrostatic transmission. Its operating weight is listed at 10,281 kg, suitable for operations of 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

260 hp

Weight

10281 kg

Catalogue coverage

Variants represented

Richest spec table

30 rows

Recorded power

260 hp

Recorded weight

10281 kg

Transmissions

18-speed

Production years

2002-2003

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerRenaultReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

cab with air conditioningReference

Engine

Deutz 7.2L 6-cylReference

Fuel tank455.0 LReference

Engine193.9 kWReference

Deutz BF6L1013FCReference

intercooled turbochargedReference

6-cylinderReference

Displacement7.2 LReference

Bore/Stroke108 x 130 mmReference

Power193.9 kWReference

Rated RPM1800Reference

Torque1060.3 NmReference

Torque RPM1500Reference

Transmission

18-speedReference

Gears18 forward and 8 reverseReference

PTO & Hydraulics

Total flow110.1 lpmReference

Rear lift12002 kgReference

Rear PTO Type750/1000Reference

Dimensions

Wheelbase304 cmReference

Weight10281 kgReference

Front tire600/70R38Reference

Rear tire650/85R38Reference

Ag front600/70R38Reference

Ag rear650/85R38Reference

Length509 cmReference

Height324 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
